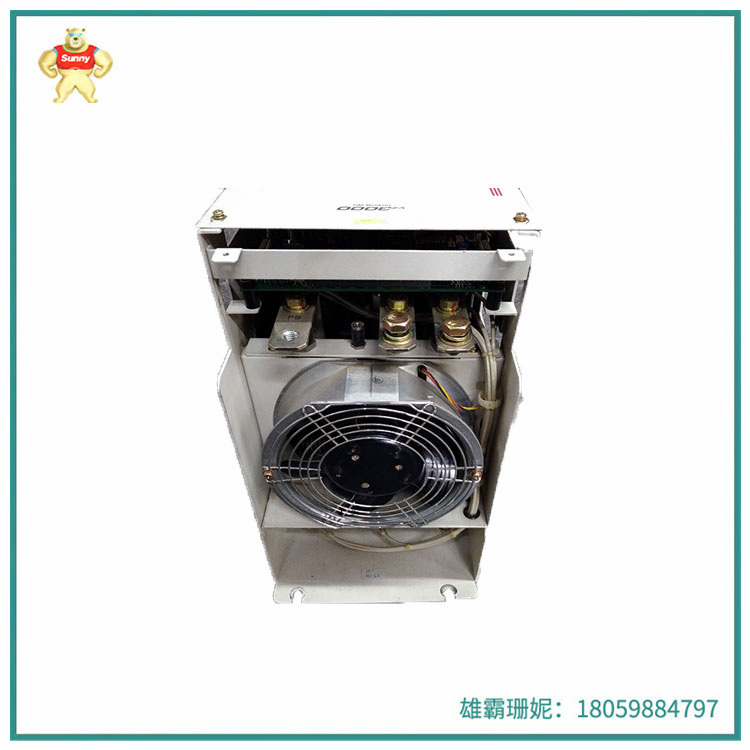

UAZ34553475-VZ3000  驱动器   采用绝缘栅极

型号：UAZ34553475-VZ3000

VZ3000驱动器采用智能功率模块(IPM)或绝缘栅极，通过正弦脉宽调制(PWM)波形提供矢量调节

双极晶体管(igbt)。VZ3000是一种灵活的，多功能的驱动器。

应用范围。

VZ3000变频器由逆变器单元、变换器单元和电机作为硬件组成

VZ3000/VZ3000G终端软件VZterm for Windows要执行

和/或VZ3000/VZ3000G操作员终端OPCU-2作为

软件部分。

本说明书涵盖200-230 VAC专用型和200-230型

VAC/380-460 VAC普通型硬件。单独的使用手册

提供的VZ3000/VZ3000G终端软件VZterm for Windows, Original

版本(IM 32027)， VZ3000/VZ3000G终端软件VZterm for Windows;

调优版(IM 32028)， VZ3000/VZ3000G操作员终端OPCU-2 (IM

32021)，和380-460 VAC专用型(较大型号)硬件(IM 32022)。

以下设备通过UL/IEC/C-UL认证:

Uvzc3001, uvzc3003, uvzc3007, uvz3022, uvz3030, uvz3037

UAZ3022、UAZ3030、UAZ3037、UAZ3022- a、UAZ3030- a和UAZ3037- a

1.1通过型号识别驱动器

每个VZ3000驱动器都可以通过其提供的型号来确定

驱动器和电机。这些数字出现在运输标签上，并被盖章

各自的铭牌。铭牌位于右下方

驱动器和电机的框架上。每当与信实电气人员讨论驱动器时，请参考这些数字。

例如，驱动器的型号描述为“UVZC3007N-SF-HA001BB”。

它的前半部分“UVZC3007N”显示了硬件的型号，后半部分显示了硬件的型号

软件的一半，“SF-HA001BB”

Model: UAZ34553475-VZ3000

The VZ3000 driver uses an intelligent power module (IPM) or an insulated gate to provide vector regulation via a sinusoidal pulse width  modulated (PWM) waveform

Bipolar transistor (igbt). The VZ3000 is a flexible, versatile drive

Scope of application.

The VZ3000 inverter is composed of inverter unit, converter unit and motor as hardware

Run the VZ3000/VZ3000G terminal software VZterm for Windows

And/or VZ3000/VZ3000G operator terminal OPCU-2 as

The software part.

This manual covers the 200-230 VAC special and 200-230 models

VAC/380-460 VAC common hardware. Separate user manual

VZ3000/VZ3000G terminal software VZterm for Windows, Original

Version (IM 32027), VZ3000/VZ3000G terminal software VZterm for Windows

Tuned version (IM 32028), VZ3000/VZ3000G Operator Terminal OPCU-2 (IM

32021), and 380-460 VAC dedicated (larger model) hardware (IM 32022).

The following devices are UL/IEC/C-UL certified:

Uvzc3001, uvzc3003, uvzc3007, uvz3022, uvz3030, uvz3037

UAZ3022, UAZ3030, UAZ3037, UAZ3022-a, UAZ3030-A, and UAZ3037-A

1.1 Identify drives by model

Each VZ3000 drive can be identified by the model it is provided with

Drives and motors. These numbers appear on the shipping label and are stamped

Their respective nameplates. The nameplate is located on the lower right

Drive and motor frame. Please refer to these figures whenever discussing  drives with Reliance Electric personnel.

For example, the driver model is described as "UVZC3007N-SF-HA001BB".

Its front half "UVZC3007N" shows the model of the hardware, and the back half shows the model of the hardware

Half of the software, "SF-HA001BB"
