G468-0001  调节器  可配置的输入和输出提供灵活

型号：G468-0001

消除接地回路

现场可配置输入范围:10mV至100V，

1mA至100mA

现场可配置输出范围:0-5V, 0-10V，

0-1mA, 0-20mA, 4-20mA，±5v，±10V

描述

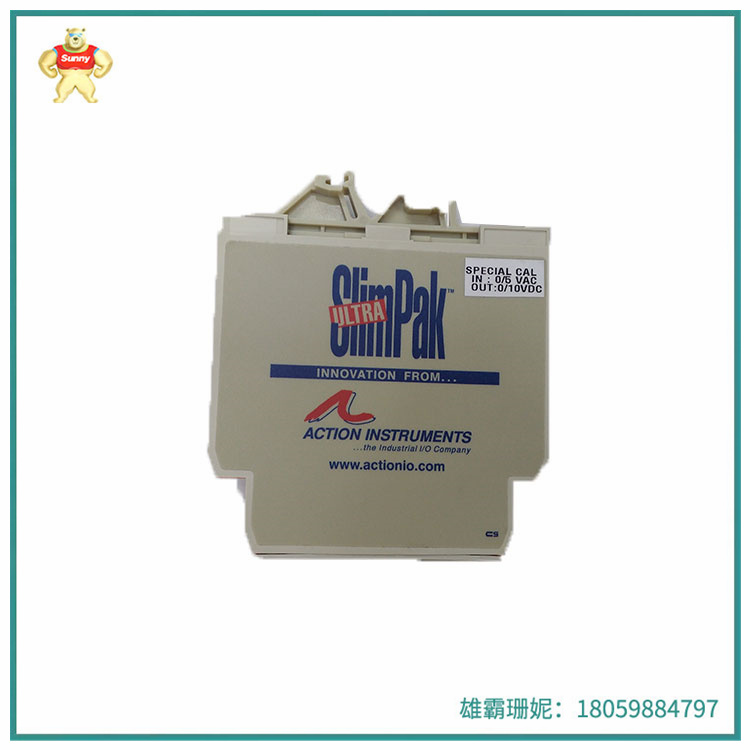

Ultra SlimPak G468是DIN导轨安装，直流输入信号

在输入、输出和之间具有1800VDC隔离的调节器

权力。现场可配置的输入和输出提供灵活，

直流电流和电压信号的宽量程能力。

输入可配置为12个电压范围中的任意一个

10mV ~ 100V或1mA ~ 100mA 6个电流量程(见表)

1).输出与输入线性，可以设置为0-

5V, 0-10V, 0-1mA, 0-20mA或4-20mA(适用于型号G468-0001)

和-5至+5V或-10至+10V(型号G468-0001)。

宽量程，精度零和跨度锅允许50%的可调节性

在18个开关中的每一个中都有偏移量和跨度降档

可选择的范围。例如，0-2mA的输入范围可以是

降至0-1mA，并提供满量程输出信号(例如:

4-20mA)，或调低和偏移，以实现1-2mA/4-20mA

I / O组合。

G408也接受双极输入(例如10V范围设置为双极=)

-10至+10V)，并提供可选择的正常或反向操作(例如:

4-20mA / 20-4mA)。基于ASIC的I/O通道是光隔离的

到1800VDC，变压器与电源隔离。

应用程序

G468-0001用于消除接地回路，转换信号

电平，并提供信号驱动。该领域可配置，宽

测距能力确保了大多数直流到直流的最大灵活性

应用，最大限度地减少备件需求。

诊断了

G468-0001配有双功能LED信号监视器。的

绿色，前置LED表示直流电源和输入

信号状态。有源直流电源由发光的LED指示。

如果输入信号大于满量程的110%

配置

G468-0001有18个输入范围设置。微调电位计允许

50%的输入零和跨度可调在每个18满

刻度输入范围。

除非另有说明，工厂预置G408-型

0001和G408-1001如下:

G468-0001

输入范围:4-20mA

输出范围:4-20mA

G468-0001

输入范围:4-20mA

输出范围:-10至+10V

直流电源输入可接受9 ~ 30V的任意电源;

通常使用12V或24VDC电源(参见附件)。

为了尽量减少电场和磁场的干扰

使用屏蔽、双绞线对输入和输出是

推荐。

Model: G468-0001

Grounding elimination loop

Field configurable input range :10mV to 100V,

1mA to 100mA

Field configurable output range :0-5V, 0-10V,

0-1mA, 0-20mA, 4-20mA, ±5v, ±10V

Description

Ultra SlimPak G468 is DIN rail mounted, DC input signal

Regulator with 1800VDC isolation between input, output and

The power. Field configurable inputs and outputs provide flexibility,

Wide range capability for DC current and voltage signals.

The input can be configured to any of 12 voltage ranges

10mV ~ 100V or 1mA ~ 100mA 6 current ranges (see table)

1). The output is linear with the input and can be set to 0-

5V, 0-10V, 0-1mA, 0-20mA or 4-20mA(for model G468-0001)

And -5 to +5V or -10 to +10V(model G468-0001).

Wide-range, zero-precision and span POTS allow for 50% adjustability

There are offset and span downshifts in each of the 18 switches

Optional range. For example, the input range from 0 to 2mA can be

Drop to 0-1mA and provide a full-scale output signal (e.g.

4-20mA), or turn down and offset to achieve 1-2mA/4-20mA

I/O combination.

The G408 also accepts bipolar inputs (e.g. 10V range set to bipolar =)

-10 to +10V) with optional normal or reverse operations (e.g.

4-20mA / 20-4mA). Asic-based I/O channels are optically isolated

Up to 1800VDC, the transformer is isolated from the power supply.

Application program

G468-0001 is used to eliminate ground loops and convert signals

Level and provide signal drive. The field is configurable and wide

The ranging capability ensures maximum flexibility for most DC-to-DC

Applications minimize spare parts requirements.

diagnosed

The G468-0001 features a dual-function LED signal monitor. the

Green, front LED indicates DC power and input

Signal status. The active DC power supply is indicated by an illuminated LED.

If the input signal is greater than 110% of full scale

disposition

The G468-0001 has 18 input range Settings. Fine tuning potentiometer allowed

50% input zero and span adjustable at each 18 full

Scale input range.

Factory preset G408- unless otherwise stated

0001 and G408-1001 are as follows:

G468-0001

Input range :4-20mA

Output range :4-20mA

G468-0001

Input range :4-20mA

Output range :-10 to +10V

Dc power input can accept any power supply of 9 ~ 30V;

A 12V or 24VDC power supply is usually used (see attachment).

To minimize the interference of electric and magnetic fields

Use shielded, twisted pair pairs for input and output yes

Recommended.
