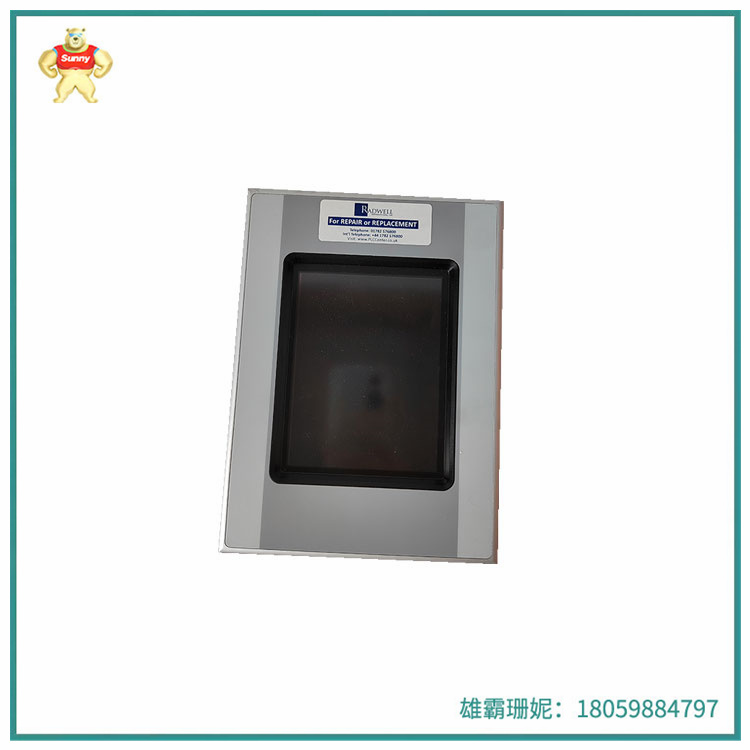

XV-442-57CQB-1-10  以太网接口 触摸屏

触摸屏，ir, 24v DC, 5.7z, STNcolor，以太网，RS232, CAN， (PLC)

用户界面，XV400，

产品范围:XV400 5.7英寸，

功能:人机界面PLC (PLC由用户改装)，

型号系列的常见特点:以太网接口，USB设备，RS232, CAN/easyNet, UL508, cUL认证，PLC功能可由用户安装，通信范围可由用户配备许可证，显示-类型:彩色显示，CSTN，

触摸技术:红外触摸，

颜色数量:256色，分辨率:QVGA, 320 x 240像素，

肖像格式:是的，

屏幕对角线:5.7英寸，金属外壳和前板，

操作系统:Windows CE(需要许可证)，CompactFlash卡，

plc许可证:可由用户安装，物品编号。140389 licc - plc - mxp - small，板载接口许可证书:可根据需要扩展，请参见附件->许可产品证书，

内置接口:1个以太网100base-TX/10base-T, 1个RS232, 1个Can, 1个USB主机，1个USB设备，

前类型:标准前带标准膜，层压安全玻璃，无反射，

用途:嵌入式安装，

插槽:compact - flashtm卡:1，

通信模块:1，

记忆卡自动化:所需，见附件->存储卡，

可插拔通信卡(可选):是，

散热:24w，防护等级(IEC/EN 60529, EN50178, VBG 4): IP65(前)，IP20(后)

XV-442-57CQB-1-10  以太网接口 触摸屏

Touch screen, ir, 24v DC, 5.7z, STNcolor, Ethernet, RS232, CAN, (PLC)

User interface, XV400,

Product range :XV400 5.7 inches,

Functions: man-machine interface PLC (PLC modified by the user),

Common features of model series: Ethernet interface, USB device, RS232, CAN/easyNet, UL508, cUL certification, PLC function can be installed by the user, communication range can be equipped by the user license, display - Type: color display, CSTN,

Touch technology: infrared touch,

Number of colors :256 colors, resolution :QVGA, 320 x 240 pixels,

Portrait Format: Yes,

Screen diagonal :5.7 inches, metal case and front plate,

Operating system :Windows CE(license required), CompactFlash card,

plc License: Can be installed by user, item number. 140389 LIC-PLC-MXP-SMALL, Onboard Interface License Certificate: can be expanded as required, please see attachment -> Licensed Product Certificate,

Built-in interface :1 Ethernet 100base-TX/10base-T, 1 RS232, 1 Can, 1 USB host, 1 USB device,

Front type: Standard front with standard film, laminated safety glass, no reflection,

Application: Embedded installation,

Slot :compact flashtm Card :1,

Communication module :1,

Memory card Automation: Required, see attachment -> Memory Card,

Pluggable communication card (optional): Yes,

Heat dissipation :24w, protection class (IEC/EN 60529, EN50178, VBG 4): IP65(front), IP20(back)
