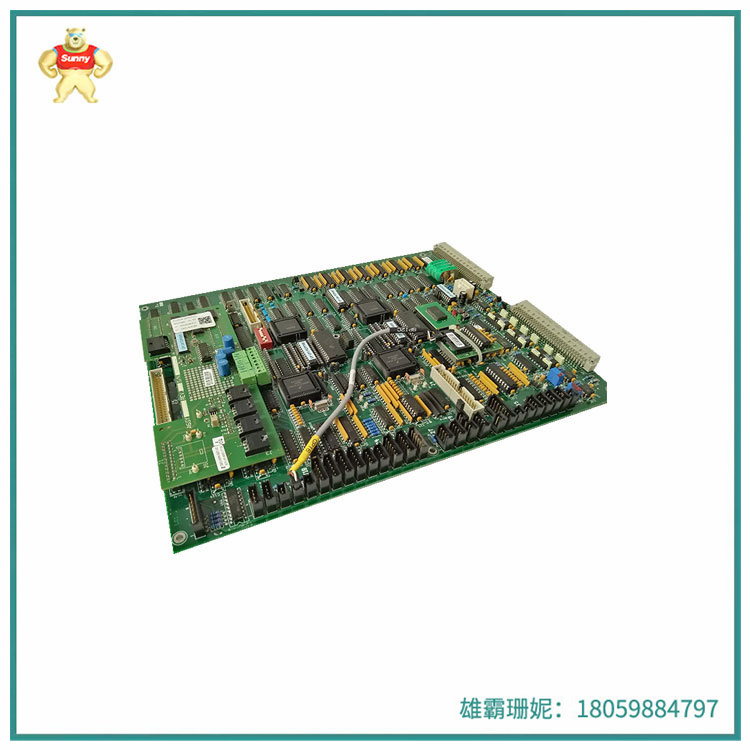

IB3110050  编码器模块  可以增强稳定信号

型号：IB3110050

IB3110050编码器模块是一种机电装置，主要用于将轴的角运动转换为A/B两相相位偏差90°的脉冲信号。编码器模块由中心有轴的光电磁盘组成，磁盘上有环形通、暗的刻线，通过光电发射和接收器件读取，获得四组正弦波信号组合成A、B、C、D。C、D信号反向叠加在A、B两相上，可以增强稳定信号；另每转输出一个Z相脉冲以代表零位参考位。

IB3110050编码器模块具有体积小、重量轻、品种多、功能全、频响高、分辨能力高、力矩小、耗能低、性能稳定、可靠使用寿命长等特点。编码器模块主要用于频率调节、高度调节、温度调节及音量调节的参数控制。增量式编码器也称为正交编码器，是通过两个信号线的脉冲输出来进行数据处理，一个输出脉冲就对应于一个增量位移，编码器每转动一定的位移，就会产生一个脉冲信号。

IB3110050编码器模块广泛应用于各种需要测量旋转角度或位移的场合，如机器人、自动化设备、数控机床、测量仪器等。在使用编码器模块时，需要注意其工作电压、输出信号类型、分辨率等参数，以确保其正常工作并满足应用需求。

IB3110050  编码器模块  可以增强稳定信号

Model: IB3110050

The IB3110050 encoder module is an electromechanical device mainly used to convert the angular motion of the shaft into A/B two-phase pulse signal with a phase deviation of 90°. The encoder module consists of A photoelectromagnetic disk with a central axis, on which there are annular and dark notched lines, which are read by the photoemission and receiving devices to obtain four groups of sine wave signals combined into A, B, C and D. C and D signals are reversely superimposed on A and B phases, which can enhance the stable signal; Another Z-phase pulse is output per revolution to represent the zero reference bit.

IB3110050 encoder module has the characteristics of small size, light weight, variety, full function, high frequency response, high resolution, small torque, low energy consumption, stable performance, long reliable service life and so on. The encoder module is mainly used for the parameter control of frequency regulation, height regulation, temperature regulation and volume regulation. Incremental encoder, also known as orthogonal encoder, is through the pulse output of two signal lines for data processing, an output pulse corresponds to an incremental displacement, each time the encoder rotates a certain displacement, it will produce a pulse signal.

The IB3110050 encoder module is widely used in various applications where rotation Angle or displacement needs to be measured, such as robots, automation equipment, CNC machine tools, measuring instruments, etc. When using the encoder module, it is necessary to pay attention to its operating voltage, output signal type, resolution and other parameters to ensure that it works properly and meets the application needs.
