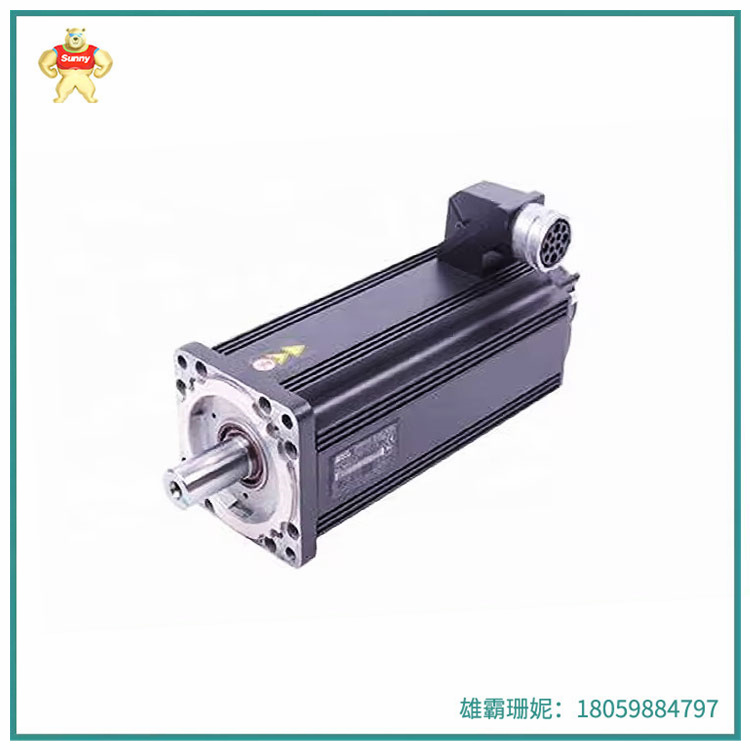

MHD093C-058-PG1-AA 同步电机 具有数字伺服反馈电机编码器

型号：MHD093C-058-PG1-AA

产品组:磁流体动力

电机机架尺寸:140/150mm法兰尺寸，130mm定心直径

电机机架长度:23.0 Nm

绕组代码:058

数字伺服反馈

电机编码器:集成多圈绝对编码器

输出轴:普通轴(带轴密封)

车制动:22,0 Nm制动

输出方向：方向上的输出连接器

电源连接器:一边一个

房屋类型:对于自然对流

MHD093C-058-PG1-AA由力士乐，Indramat，博世是MHD系列中的同步电机。NHD093C-058-PG1-AA的特点是车架尺寸为140/150mm法兰尺寸，定心直径为130mm, notorframe长度为230 Nm。该电机具有数字伺服反馈电机编码器，集成多匝绝对编码器，并配有平轴输出轴(带轴密封圈)。

同步电机是一种交流电机，其转速与电源交流电的频率同步。其转子（即电机中的旋转部分）的转速与定子（即电机的固定部分）产生的旋转磁场的转速一致。

MHD093C-058-PG1-AA同步电机分为隐极式和凸极式两类。隐极式同步电机的转子表面是一个平滑的圆柱面，没有凸起的极靴，因此气隙是均匀的，磁通沿径向按正弦规律分布。凸极式同步电机的转子上有明显的凸极，凸极上装设了励磁绕组。

MHD093C-058-PG1-AA同步电机的特点包括：

稳速精度高，转速恒定，不受负载变化的影响。

转速范围宽，调速范围可达1:10000，并且可在整个调速范围内实现平滑无级调速。

动态响应快，从全速到全停只需几秒钟，能立即投入反转，正反转切换时间极短。

效率高，电机效率高达95%以上，调速系统效率为90%以上。

可靠性高，转子和定子没有机械接触，可靠性高，维护简单。

适用于高温、高速、高湿、高压、粉尘、易燃、易爆、腐蚀等恶劣环境。

电磁辐射小，振动小，噪音低。

MHD093C-058-PG1-AA同步电机主要用在大型发电机、电动机上，如大型水力发电站、火力发电站、核电站、风力发电站等。此外，一些高性能的汽车也使用同步电机作为驱动电机。

MHD093C-058-PG1-AA 同步电机 具有数字伺服反馈电机编码器

Model: MHD093C-058-PG1-AA

Product Group: Magnetohydrodynamic

Motor frame size :140/150mm flange size, 130mm centering diameter

Motor frame length :23.0 Nm

Winding code :058

Digital servo feedback

Motor encoder: Integrated multi-turn absolute encoder

Output shaft: ordinary shaft (with shaft seal)

Car braking :22,0 Nm braking

Output direction: direction of the output connector

Power connector: one on each side

Type of house: For natural convection

MHD093C-058-PG1-AA by Rexroth, Indramat, Bosch is a synchronous motor in the MHD series. NHD093C-058-PG1-AA features a frame size of 140/150mm flange size, a centering diameter of 130mm, and a notorframe length of 230 Nm. The motor has a digital servo feedback motor encoder, integrated multi-turn absolute encoder, and is equipped with a flat-shaft output shaft (with shaft seal).

A synchronous motor is an AC motor whose speed is synchronized with the frequency of the alternating current of the power supply. The speed of its rotor (the rotating part of the motor) is consistent with the speed of the rotating magnetic field generated by the stator (the fixed part of the motor).

MHD093C-058-PG1-AA synchronous motor is divided into two categories: hidden pole type and convex pole type. The rotor surface of the hidden pole synchronous motor is a smooth cylinder without a raised pole shoe, so the air gap is uniform, and the magnetic flux is distributed along the radial according to the sine law. Salient pole synchronous motor rotor has obvious salient pole, the salient pole is equipped with an exciting winding.

MHD093C-058-PG1-AA synchronous motor features include:

High speed stability accuracy, constant speed, not affected by load changes.

The speed range is wide, the speed range can reach 1:10,000, and smooth stepless speed can be achieved in the whole speed range.

Fast dynamic response, from full speed to full stop only a few seconds, can be immediately put into reverse, positive and negative switching time is very short.

High efficiency, motor efficiency of more than 95%, speed control system efficiency of more than 90%.

High reliability, no mechanical contact between rotor and stator, high reliability, simple maintenance.

Suitable for high temperature, high speed, high humidity, high pressure, dust, flammable, explosive, corrosion and other harsh environment.

Low electromagnetic radiation, low vibration, low noise.

MHD093C-058-PG1-AA synchronous motor is mainly used in large generators, motors, such as large hydroelectric power stations, thermal power stations, nuclear power plants, wind power stations and so on. In addition, some high-performance cars also use synchronous motors as drive motors.
