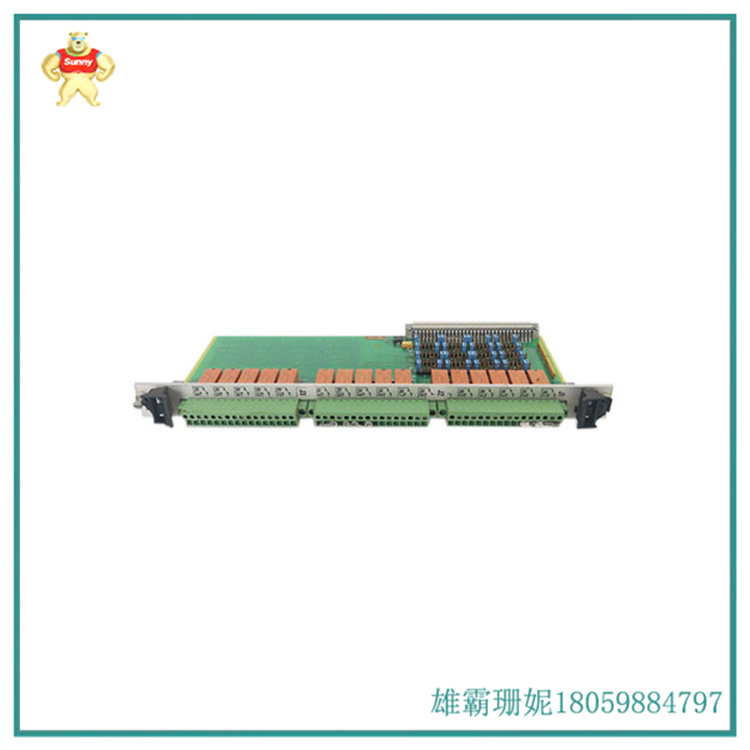

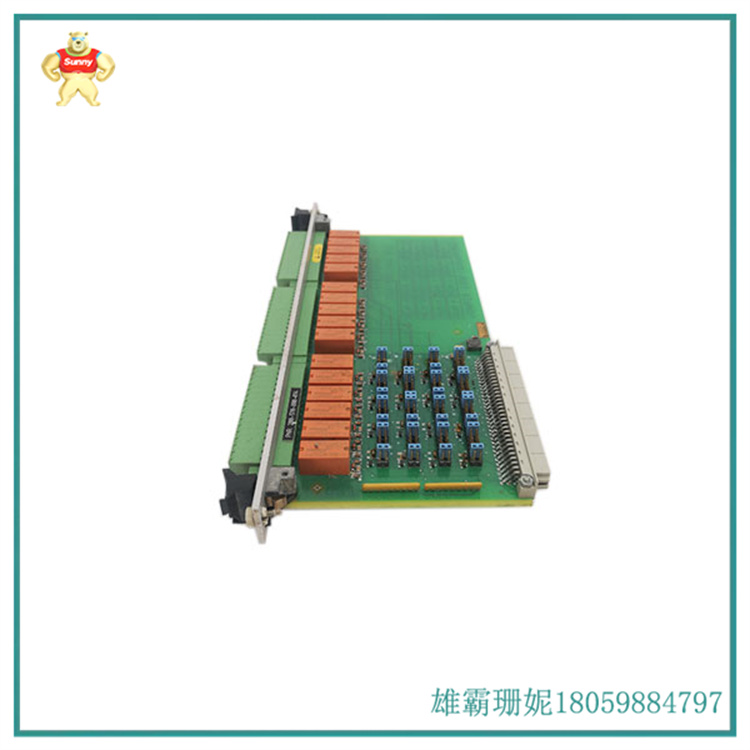

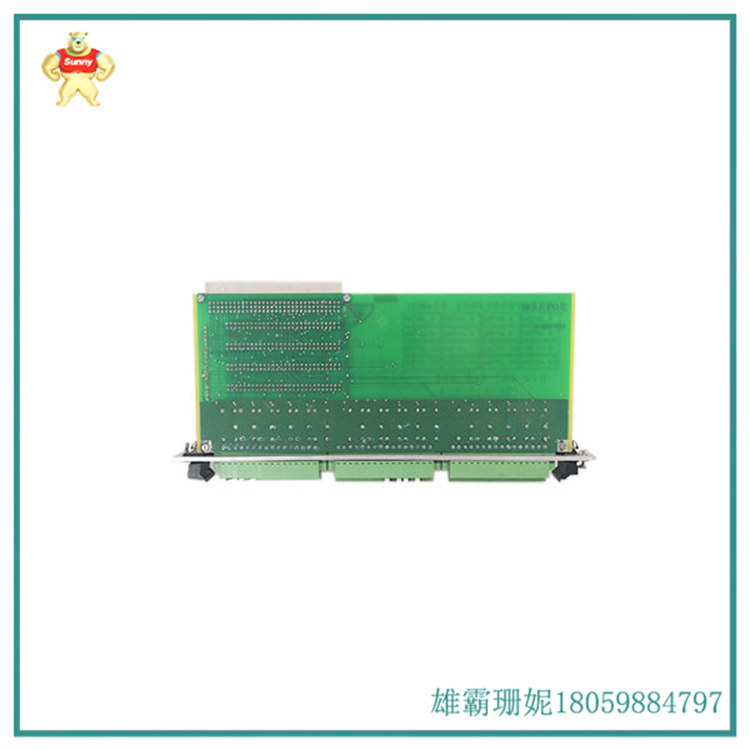

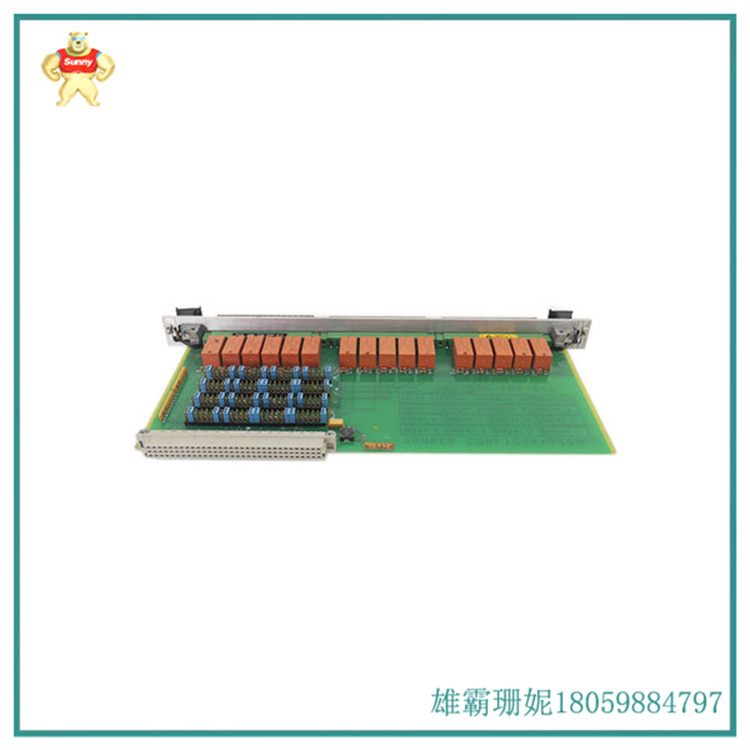

RLC16继电器卡设计用于VM600系列机械保护系统以及状态和性能监测系统,来自Megitt的Vibro Meter产品线这是一张可选的卡片,当I0C4T输入/输出卡上的继电器不足以满足申请和附加要求需要继电器。RLC16安装在VM600机架的后部(ABEO4x或ABE056),并直接连接到机架背板通过单个连接器。RLC16包含16个带转换的继电器联系人。每个继电器与3个端子相关在可通过VM600机架的后部。继电器由开路集电极驱动器控制在软件控制下。RLC16上的跳线板卡允许正常选择继电器通电(NE)或正常断电(NDE)。
The RLC16 relay card is designed for use in VM600 series mechanical protection systems and status and performance monitoring systems. This is an optional card from Megitt's Vibro Meter product line, as the relays on the I0C4T input/output card are not sufficient to meet the application and additional requirements. RLC16 is installed at the rear of the VM600 rack (ABEO4x or ABE056) and directly connected to the rack backplane through a single connector. RLC16 contains 16 relay contacts with conversion. Each relay is associated with 3 terminals at the rear of the VM600 rack that can be accessed. The relay is controlled by an open collector driver under software control. The jumper board card on RLC16 allows for normal selection of relay power on (NE) or normal power off (NDE).
