TVME200-10  IP模块  以太网模块

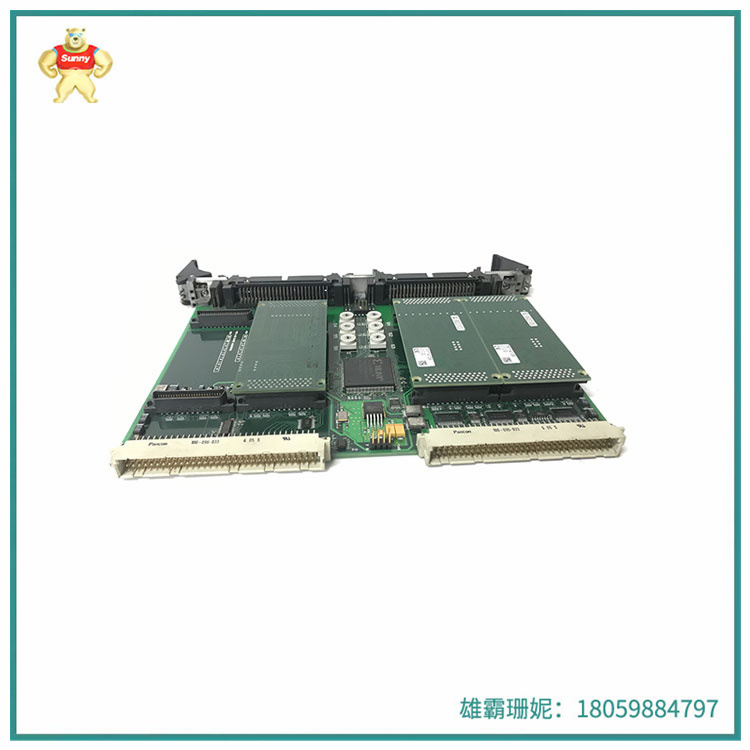

TVME200-10是6U VMEbus Carrier，最多可用于4个单尺寸或2个双尺寸IndustryPack (IP)模块

构建模块化、灵活和经济高效的I/O解决方案

在过程控制、医疗系统、电信和交通管制。

一组16位旋转开关允许轻松

配置VME短I/O和内存地址。

中断路由从IP槽到VME IRQ的可以有两种方式完成:通过软件编程或选择，由旋转开关控制的预定义集合。安装了四个50针0.1英寸扁平带状电缆连器，在TVME200的前面板提供对所有IP的访问I / O线。另外，在TVME200-20上的所有I/O线' IP D '被路由到VME P2和14用户可选择的I/O IP C”线路可以通过跳线字段路由到VME P2。IP接入、+5V和+/-12V状态指示灯为提供。IP电源线由自愈保险丝保护和射频滤波。工作温度范围-40°C至+85°C。

IP模块，也称为IP内核模块，是一种预先设计好的、甚至已经过验证的具有某种确定功能的集成电路、器件或部件。这些模块供芯片设计人员装配或集成选用。TVME200-10IP模块有许多种不同的种类，例如各种不同的CPU（32/64位CISC/RISC结构的CPU或8/16位微控制器/单片机，如8051等）、32/64位DSP（如320c30）、DRAM、SRAM、EEPROM、Flash Memory、A/D、D/A、MPEG/JPEG、USB、PCI、标准接口、网络单元、编译器、编码/解码器和模拟器件模块等。丰富的IP内核模块库为快速地设计专用集成电路和单片系统以及尽快占领市场提供了基本保证。

此外，TVME200-10模块是一种TCP/IP以太网模块，兼容WIZ820IO网络接口。

TVME200-10  IP模块  以太网模块

The TVME200-10 is a 6U VMEbus Carrier that can be used for up to 4 single  size or 2 double size IndustryPack (IP) modules

Build modular, flexible, and cost-effective I/O solutions

In process control, medical systems, telecommunications and traffic control.

A set of 16-bit rotary switches allows for ease

Configure VME short I/O and memory address.

Interrupt routing from the IP slot to the VME IRQ can be done in two ways: by software programming or selection, with a predefined set controlled by a rotary switch. Four 50-pin 0.1-inch flat ribbon cable connectors are installed to provide access to all IP I/O cables on the front panel of the TVME200. In addition, all I/O lines' IP D 'on TVME200-20 are routed to VME P2 and 14 user selectable I/O IP C' lines can be routed to VME P2 via the jumper field. The IP access, +5V, and +/-12V status indicators are provided. IP power cables are protected by self-healing fuses and RF filtered. Operating temperature range -40°C to +85°C.

An IP module, also known as an IP kernel module, is a pre-designed and even proven integrated circuit, device, or component that has a certain function. These modules can be used by chip designers for assembly or integration. There are many different types of TVME200-10IP modules, such as various different cpus (32/64-bit CISC/RISC structure cpus or 8/16-bit microcontrollers/microcontrollers). Such as 8051, 32/64-bit DSP (such as 320c30), DRAM, SRAM, EEPROM, Flash Memory, A/D, D/A, MPEG/JPEG, USB, PCI, standard interface, network unit, compiler, encoding/decoder and emulator module, etc. The rich IP kernel module library provides the basic guarantee for designing ASIC and monolithic system quickly and occupying the market as soon as possible.

In addition, the TVME200-10 module is a TCP/IP Ethernet module that is compatible with the WIZ820IO network interface.
