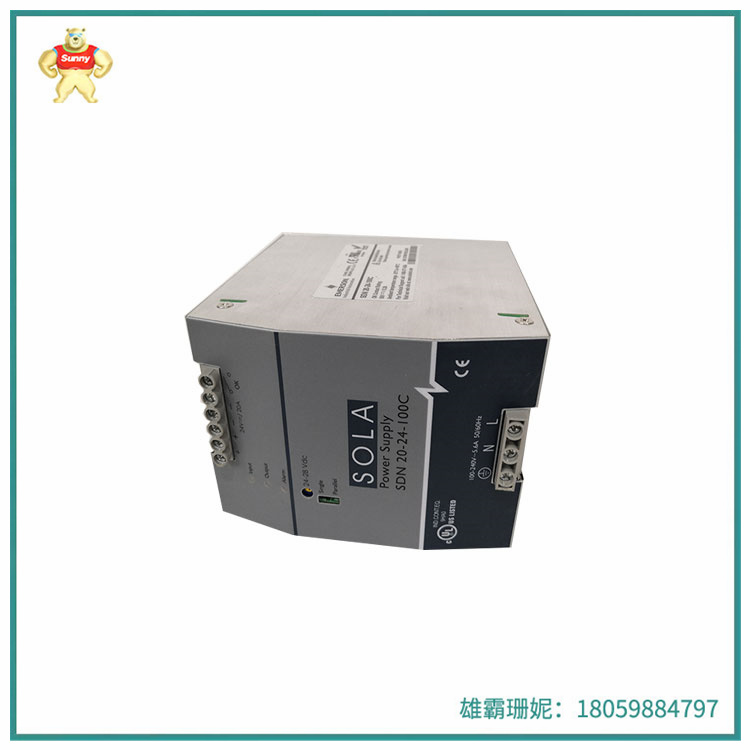

SDN20-24-100C  稳压电源  能够将电压稳定在设定范围内

SDN20-24-100C稳压电源是电源设备的一种，能够将电压稳定在设定范围内。开关模式指的是稳压电源的工作方式，通过开关模式，稳压电源可以在不同的电压和电流下工作，以适应不同的负载需求。24V指的是稳压电源的输出电压为24伏特。

开关模式稳压电源的特点主要包括：

功耗小，效率高：SDN20-24-100C开关模式下，晶体管自身消耗的功率较小，能够达到较高的效率。

体积小，重量轻：由于开关电源不需要降压变压器，其输出变压器工作在高频，体积小于50赫的工频变压器，因此电路小巧轻便。

稳压范围宽：SDN20-24-100C开关稳压电源的输出电压由激励信号的占空比来调节，输入信号电压的变化可以通过调频或调宽来进行补偿。在工频电网电压变化较大情况下，它依然可以保证有较稳定的输出电压。

电路形式灵活多样：例如，有自激式和他激式，有调宽型和调频型，有单端式和双端式等等。电源研发人员可以发挥各种类型电路的优点，设计研发出能满足不同应用环境的开关稳压电源。

开关干扰严重：SDN20-24-100C功率调整开关晶体管工作在开关状态，会产生交流电压和电流，通过电路中的其他元器件产生尖峰干扰和庇振干扰。这些干扰如果不采取一定的措施进行抑制、消除和屏蔽，就会影响整机的正常工作。

SDN20-24-100C  稳压电源  能够将电压稳定在设定范围内

SDN20-24-100C power supply is a kind of power supply equipment, which can stabilize the voltage within a set range. Switching mode refers to the mode of operation of the regulated power supply, through the switching mode, the regulated power supply can work at different voltages and current currents to adapt to different load requirements. 24V refers to the output voltage of the regulated power supply is 24 volts.

The characteristics of switching mode stabilized power supply mainly include:

Low power consumption, high efficiency: SDN20-24-100C switching mode, the transistor itself consumes less power, can achieve higher efficiency.

Small size, light weight: Because the switching power supply does not need a step-down transformer, its output transformer works at high frequency, and the volume is less than 50 Hz power frequency transformer, so the circuit is small and lightweight.

Wide voltage regulator range: The output voltage of SDN20-24-100C switching regulator power supply is regulated by the duty cycle of the excitation signal, and the change of the input signal voltage can be compensated by frequency modulation or width modulation. When the power frequency network voltage changes greatly, it can still ensure a relatively stable output voltage.

The circuit forms are flexible and varied: for example, there are self-excited and other-excited, there are width modulation and frequency modulation, there are single-ended and double-ended, and so on. Power developers can use the advantages of various types of circuits to design and develop switching regulated power supplies that can meet different application environments.

Serious switching interference: SDN20-24-100C power adjustment switch transistor working in the switching state, will produce AC voltage and current, through other components in the circuit to produce peak interference and vibration interference. If these interferences do not take certain measures to suppress, eliminate and shield, it will affect the normal operation of the whole machine.
