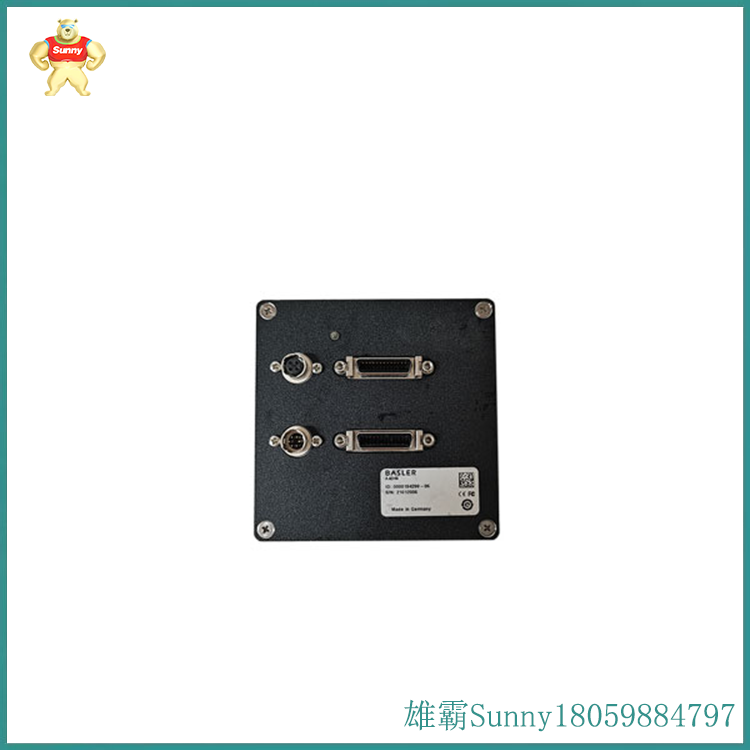

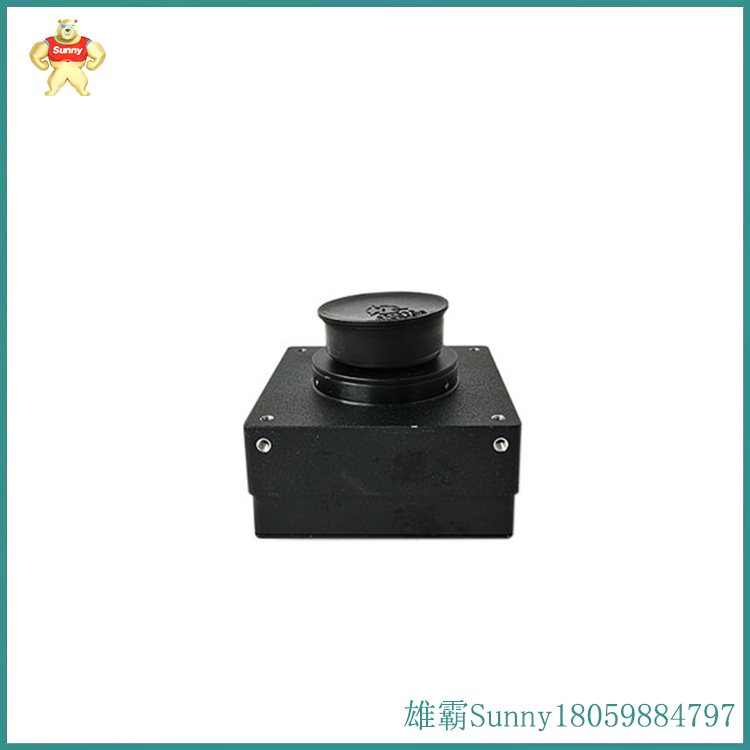

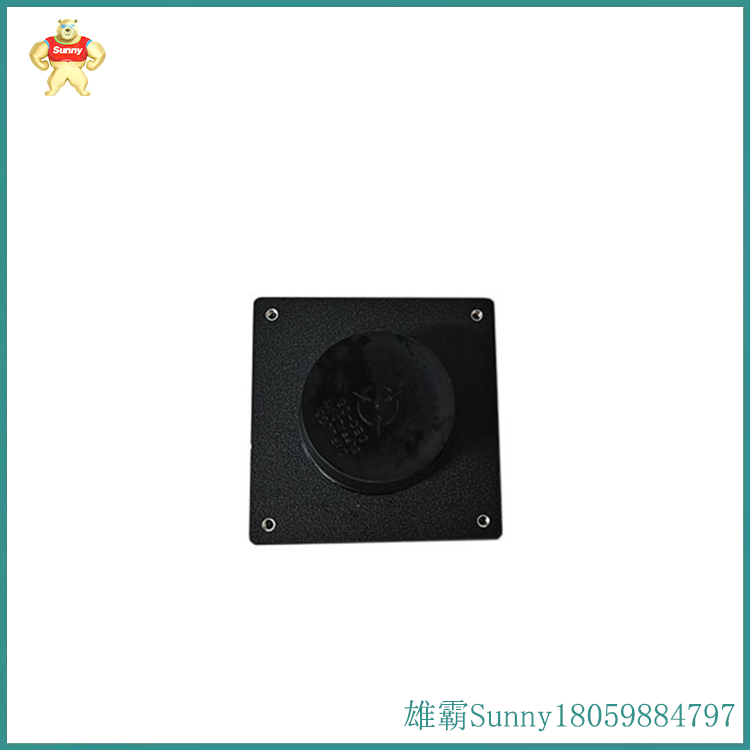

Basler A404K   工业相机

A400系列的目标是提供一个高性能满足 摄像机中最严格的要求分辨率、速度和图像质量。这个目标实现了通过使用一个先进的四百万像素传感器和-个独特的相机后端，-个组合, 提供了辉煌的图像质量和快速预处理的可能性。确保可靠、一致质量 ，A400变种是 100%质量检查和校准。所有的这使得A400相机非常灵活和可靠的工具许多应用程序。所有A400相机都包含一个高质 量的CMOS传感器2352X 1726活动像素。而最常见的CCD的速度传感器限制为15 fps, A400变体提供了更好的最大

帧率:

●A402k/kc - 24 fps全分辨率

.A403k/kc全分辨率48帧/秒

●A404k/kc - 96 fps全分辨率

●A405k/kc - 167fps在2320 x 1726

●A406k/kc - 209fps在2320 x 1726

A400系列以卓越的性能树立了新的标准以及与CCD相机相媲美的图像质量。非凡的图像质来自先进的CMOS传感器的使用以及精密的电子设计。

三个不同的图像增强功能可以进一步提高图像质 量:

●柱阴影校正，消除固定模式噪音

.DSNU阴影校正，消除暗信号不均匀性

●PRNU阴影校正消除照片响应

不均匀性没有开花或污迹是另一一个优点在带有CCD传感器的相机上。代码缺失不是问题

A400和图像在这方面非常相似。的A400摄像机中使用的快速FPGA使板载选项成为可能预处理和允许实现个别算法适应客户需求

The goal of the A400 series is to provide a high-performance camera that meets the most stringent requirements for resolution, speed, and image quality. This goal has been achieved through the use of an advanced four megapixel sensor and a unique camera backend, providing brilliant image quality and the possibility of rapid preprocessing. Ensure reliable and consistent quality, the A400 variant is 100% quality checked and calibrated. All of this makes the A400 camera a very flexible and reliable tool for many applications. All A400 cameras include a high-quality CMOS sensor with 2352X 1726 active pixels. The most common CCD speed sensor is limited to 15 fps, and the A400 variant provides a better maximum

Frame rate:

A402k/kc -24 fps full resolution

A403k/kc full resolution 48 frames/second

A404k/kc -96 fps full resolution

A405k/kc -167fps at 2320 x 1726

A406k/kc -209fps at 2320 x 1726

The A400 series has set a new standard with excellent performance and image quality comparable to CCD cameras. The extraordinary image quality comes from the use of advanced CMOS sensors and precise electronic design.

Three different image enhancement functions can further improve image quality:

Column shadow correction to eliminate fixed mode noise

DSNU shadow correction to eliminate dark signal unevenness

PRNU shadow correction eliminates photo response

Non uniformity without blooming or stains is another advantage in cameras with CCD sensors. Missing code is not a problem

A400 and images are very similar in this regard. The fast FPGA used in the A400 camera makes onboard options possible for preprocessing and allows for the implementation of individual algorithms to meet customer needs
