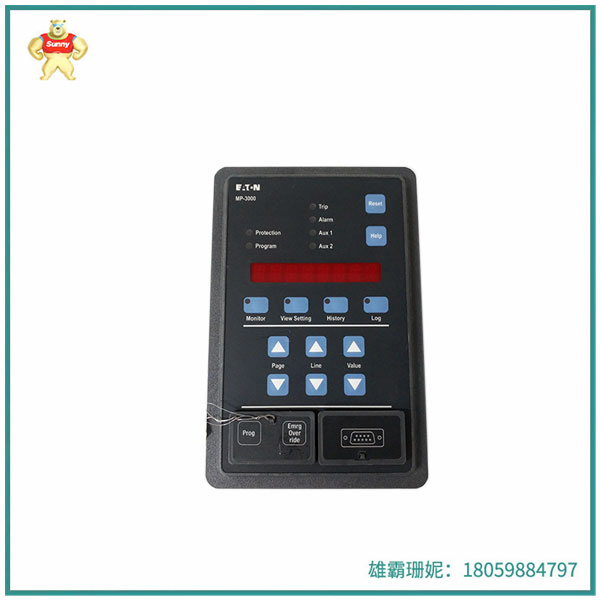

MP3010 继电保护装置 接收并测量电力系统中的电力信号

MP3010 继电保护装置是一种能够在电力系统中的电力元件（如发电机、线路等）或电力系统本身发生故障时，向运行值班人员及时发出警告信号，或者直接向所控制的断路器发出跳闸命令以终止这些事件发展的自动化措施和设备。这种装置的基本任务是自动、迅速、有选择性地将故障元件从电力系统中切除，并最大限度地保证其他无故障部分的正常运行不受影响。

MP3010 继电保护装置的类型有许多种，根据其功能与构成可以分为机电型和静态型，以及整流型三种继电器。根据其输入的电气量和量度可以分为电流、电压继电器和频率、阻抗、差动继电器等。这些继电保护装置都是由逻辑和测量，以及执行三个模块所构成。

继电保护装置中的三个模块，即测量模块、逻辑模块和执行模块，各自具有独特的作用。

测量模块：该模块的主要任务是接收并测量电力系统中的电力信号，并与原始定值进行比较。一旦测量结果与定值出现偏差，该模块会将这一测量结果与定值比较的数据传输至逻辑模块。

逻辑模块：MP3010 接收到测量模块的数据后，逻辑模块会根据接收到的数据的性质、次序以及大小等相关参数进行分析与计算，进而做出是否为异常信号的判断。这是决定是否需要采取保护动作的关键环节。

执行模块：当逻辑模块判断出异常信号后，会向执行模块发出相应的动作信号。MP3010 执行模块根据接收到的信号，执行相应的操作，例如跳闸等，以保护电力系统不受损害。

这三个模块之间的密切配合，使得继电保护装置能够在电力系统出现故障时，迅速、准确地切断故障部分，最大程度地保护电力系统的安全运行。

The MP3010 relay protection receives and measures power signals in the power system

MP3010 relay protection device is a kind of automatic measures and equipment that can send a warning signal to the operation duty personnel in time when the power components in the power system (such as generators, lines, etc.) or the power system itself fails, or send a trip command directly to the controlled circuit breaker to terminate the development of these events. The basic task of this device is to automatically, quickly and selectively remove the faulty components from the power system, and to ensure that the normal operation of other trouble-free parts is not affected to the maximum extent.

There are many types of MP3010 relay protection device, according to its function and composition can be divided into electromechanical type and static type, and rectifier type three kinds of relays. According to its input electrical gas and measurement can be divided into current, voltage relays and frequency, impedance, differential relays. These relay protection devices are composed of three modules: logic and measurement, and execution.

The three modules in the relay protection device, namely the measurement module, the logic module and the execution module, each has its own unique role.

Measurement module: The main task of this module is to receive and measure the power signal in the power system and compare it with the original fixed value. Once the measurement result deviates from the fixed value, the module transmits the data comparing the measurement result with the fixed value to the logic module.

Logic module: After MP3010 receives the data of the measurement module, the logic module will analyze and calculate the relevant parameters such as the nature, order and size of the received data, and then make a judgment whether it is an abnormal signal. This is a key step in determining whether protective action is needed.

Execution module: When the logic module detects abnormal signals, it sends corresponding action signals to the execution module. According to the received signal, the MP3010 execution module performs corresponding operations, such as tripping, to protect the power system from damage.

The close cooperation between these three modules enables the relay protection device to quickly and accurately cut off the fault part when the power system fails, and protect the safe operation of the power system to the greatest extent.
