0100-20100  模拟I/O VME模块 提供实际总数超过3.5 GB/s的数据带宽

模拟I/O VME模块

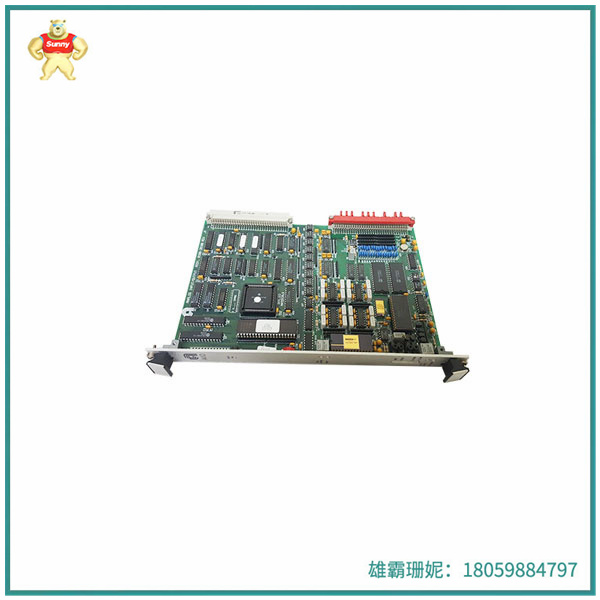

这个应用材料模拟I/O VME模块被使用并且处于良好状态。

部件编号:0100-20100

模拟I/O VME模块是一种在VME/VXS平台上构建的高速数据转换产品。该模块通过插入模拟夹层，提供不同的高分辨率数字转换器和/或发生器。它通过两个Xilinx Virtex-4 FPGA进行数据的高性能实时处理，一个用于数字信号处理的SX55和一个用于数据流控制的FX100。该模块还具有两个板上DDR2 SDRAM Bank（最大512 M的存储器）以及嵌入式闪存，可以轻松地重新配置以运行用户定义的应用软件。此外，模块还集成了ADC、DAC和信号调节元器件的模拟数据转换器夹层，并且还有Virtex-5 FPGA用于夹层卡上信号的动态纠正。这种模块符合VME64x标准，支持2eSST协议，能够提供实际总数超过3.5 GB/s的数据带宽。

0100-20100模拟I/O VME模块的应用领域包括但不限于：

工业自动化系统：模拟I/O VME模块可以用于实现复杂的工业自动化系统的控制和监测，包括数据采集、信号处理等功能。

测试和测量设备：模拟I/O VME模块可以用于各种测试和测量设备中，如示波器、频谱分析仪等，提供高速数据转换和实时处理能力。

医疗设备：0100-20100模拟I/O VME模块可以用于医疗设备中，如监护仪、心电图机等，提供高精度的数据采集和实时处理能力。

科学和成像应用：模拟I/O VME模块可以用于科学和成像应用中，如地震数据处理、雷达信号处理等，提供高速数据转换和实时处理能力。

总之，0100-20100模拟I/O VME模块具有广泛的应用领域，可以根据具体的应用需求进行配置和编程。

0100-20100  模拟I/O VME模块 提供实际总数超过3.5 GB/s的数据带宽

Analog I/O VME module

This applied Materials analog I/O VME module is used and in good condition.

Part number :0100-20100

Analog I/O VME module is a high-speed data conversion product built on the VME/VXS platform. The module provides different high-resolution digital converters and/or generators by inserting an analog sandwich. It performs high-performance real-time processing of data via two Xilinx Virtex-4 FPGas, an SX55 for digital signal processing and an FX100 for data flow control. The module also features two on-board DDR2 SDRAM banks (up to 512 M of memory) as well as embedded flash memory that can be easily reconfigured to run user-defined application software. In addition, the module integrates an analog data converter layer for ADC, DAC and signal conditioning components, and a Virtex-5 FPGA for dynamic correction of signals on the sandwich card. This module is VME64x compliant, supports the 2eSST protocol, and is able to provide actual total data bandwidth of more than 3.5 GB/s.

0100-20100 Application areas of analog I/O VME modules include, but are not limited to:

Industrial automation system: Analog I/O VME modules can be used to realize the control and monitoring of complex industrial automation systems, including data acquisition, signal processing and other functions.

Test and measurement equipment: Analog I/O VME modules can be used in a variety of test and measurement equipment, such as oscilloscopes, spectrum analyzers, etc., providing high-speed data conversion and real-time processing capabilities.

Medical equipment: 0100-20100 Analog I/O VME modules can be used in medical equipment, such as monitors, ECG machines, etc., to provide high-precision data acquisition and real-time processing capabilities.

Scientific and Imaging applications: Analog I/O VME modules can be used in scientific and imaging applications such as seismic data processing, radar signal processing, etc., providing high-speed data conversion and real-time processing capabilities.

In summary, the 0100-20100 analog I/O VME module has a wide range of application areas and can be configured and programmed according to specific application requirements.
