0-60029-1 电路板  是电子元器件电气连接的提供者

产品描述

0-60029-1信实接口卡/ DPS PMI交流并行SA 3000

来自信实的0-60029-1是一种电路板和面板模块，用于该公司的驱动器，最常用的是SA 3000。

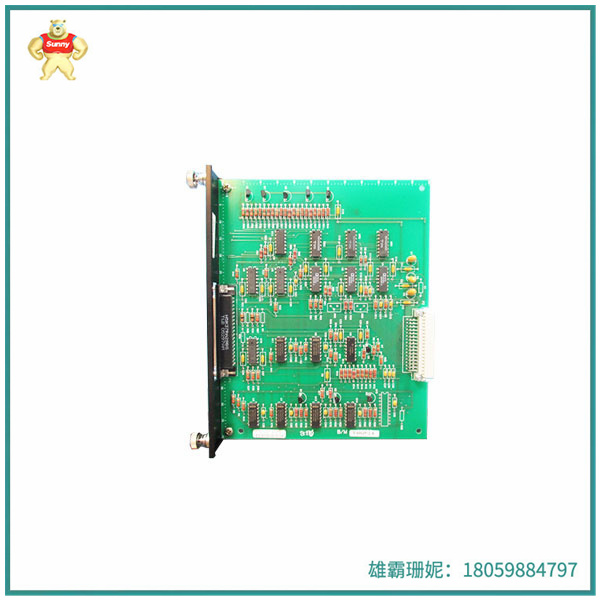

0-60029-1的电路板部分由9个晶体管、14个集成电路、金属膜电阻器、二极管和陶瓷电容器组成。它还有三个薄膜电阻器(TDP16032002)。这些有两个标准电路在一个模制的外壳结构，由高度稳定的薄膜材料。后边缘有一个单一的直角接口连接器位于其中心。大多数组件都标有引用指示符。板子的两边都打上了hash标记，所有的角落都经过了工厂的钻孔。

0-60029-1电路板（Printed Circuit Board，简称 PCB），又称印刷电路板，是电子元器件电气连接的提供者。0-60029-1电路板的主要功能是使各种电子零组件形成预定电路的连接，起中继传输的作用，是电子产品的重要组成部分。

电路板的组成主要包括覆铜板、印刷线路、过孔、表面处理、阻焊层等。

电路板的应用范围广泛，包括但不限于以下领域：消费电子、通讯设备、汽车电子、工业控制、医疗设备、航空航天等。

随着科技的不断进步，0-60029-1电路板的制造技术也在不断发展，如多层电路板、柔性电路板、高密度电路板等新型技术的应用，使得电路板在更小的空间内集成更多的电子元器件，提高了电子产品的性能和可靠性。

0-60029-1作为接口卡使用。前面板上除了安装后用于固定模块的两颗螺钉和标识为“P1/并联电源模块接口”的单母连接器外，其他全部裸露。面板大约有8英寸高。面板通过两个螺钉连接到电路板上。

0-60029-1 电路板  是电子元器件电气连接的提供者

Product description

0-60029-1 Reliance Interface Card/DPS PMI AC parallel SA 3000

The 0-60029-1 from Reliance is a circuit board and panel module used in the company's drives, the most commonly used being the SA 3000.

The circuit board portion of the 0-60029-1 consists of nine transistors, 14 integrated circuits, metal film resistors, diodes, and ceramic capacitors. It also has three thin film resistors (TDP16032002). These have two standard circuits in a molded housing structure, made of a highly stable thin film material. The back edge has a single right Angle interface connector located in its center. Most components are labeled with reference indicators. Both sides of the board are hashed, and all corners have been drilled through the factory.

0-60029-1 Printed Circuit Board (PCB), also known as Printed Circuit Board, is a provider of electrical connections for electronic components. The main function of the 0-60029-1 circuit board is to make a variety of electronic components form a predetermined circuit connection, which plays the role of relay transmission, and is an important part of electronic products.

The composition of the circuit board mainly includes copper clad plate, printed circuit, through hole, surface treatment, welding resistance layer and so on.

Circuit boards have a wide range of applications, including but not limited to the following fields: consumer electronics, communications equipment, automotive electronics, industrial control, medical equipment, aerospace, etc.

With the continuous progress of science and technology, the manufacturing technology of 0-60029-1 circuit board is also constantly developing, such as the application of new technologies such as multi-layer circuit boards, flexible circuit boards, high-density circuit boards, etc., which makes the circuit board integrate more electronic components in a smaller space, improving the performance and reliability of electronic products.

0-60029-1 is used as an interface card. The front panel is bare except for the two screws used to secure the module after installation and the single female connector labeled P1/ Parallel Power Module Interface. The panels are about eight inches high. The panel is attached to the circuit board by two screws.
