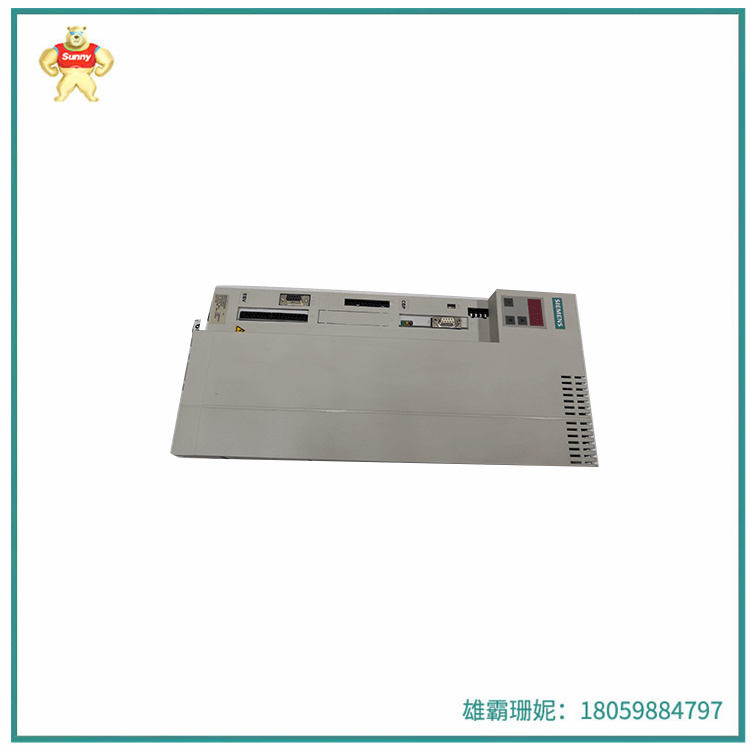

6SE7023-8TP60-Z  逆变器  用于为电子设备提供电源

西门子SIMOVERT，西门子SIMOVERT逆变器

额外的信息

Simovert masterdrives矢量控制逆变器紧凑加设计防护等级ip20 dc510v-650v, 37.5a额定功率:18.5 kw

预计运输规模

尺寸:14.0" x 15.0" x 21.0"

(35.6厘米× 38.1厘米× 53.3厘米)

重量:28磅0.0盎司(12.7公斤)

税则号:8504409570

原产地:德国

6SE7023-8TP60-Z 逆变器是光伏发电系统的大脑和心脏。在太阳能光伏发电过程中，光伏阵列所发的电能为直流电能，然而许多负载需要交流电能。直流供电系统存在很大的局限性，不便于变换电压，负载应用范围也有限，除特殊用电负荷外，均需要使用逆变器将直流电变换为交流电。光伏逆变器是太阳能光伏发电系统的心脏，其将光伏组件产生的直流电转化为交流电，输送给本地负载或电网，并具备相关保护功能的电力电子设备。光伏逆变器主要由功率模块、控制电路板、断路器、滤波器、电抗器、变压器、接触器以及机柜等组成，生产过程包括电子件预加工、整机装配、测试和整机包装等工艺环节，其发展依赖于电力电子技术、半导体器件技术和现代控制技术的发展。

6SE7023-8TP60-Z 逆变器（Inverter）是一种将直流电转换为交流电的设备，它通常用于为电子设备提供电源。逆变器的工作原理如下：

1. 输入滤波：输入滤波器用于消除输入电源中的高频干扰。

2. 整流：整流器将输入的直流电转换为交流电。

3. 滤波：滤波器用于消除整流后的交流电中的纹波。

4. 逆变：逆变器将滤波后的交流电转换为符合要求的交流电。

6SE7023-8TP60-Z 逆变器的设计和配置取决于应用需求，例如输入电压范围、输出电压和电流、效率和尺寸等。一些常见的逆变器包括车载逆变器、太阳能逆变器、风能逆变器等。在使用逆变器时，需要注意其输入电压、输出电压和电流等参数是否与设备匹配，以避免损坏设备或逆变器。此外，还需要注意逆变器的散热和安全性等问题，以确保其稳定可靠地工作。

6SE7023-8TP60-Z  逆变器  用于为电子设备提供电源

Siemens SIMOVERT, Siemens SIMOVERT inverter

Additional information

Simovert masterdrives vector control inverter compact design protection class ip20 dc510v-650v, 37.5a rated power: 18.5kw

Expected transport scale

Size :14.0" x 15.0" x 21.0"

(35.6 cm × 38.1 cm × 53.3 cm)

Weight :28 lb. 0.0 oz. (12.7 kg)

Tax Code :8504409570

Country of Origin: Germany

The 6SE7023-8TP60-Z inverter is the brain and heart of the photovoltaic power generation system. In the process of solar photovoltaic power generation, the electricity generated by the photovoltaic array is direct current energy, but many loads require AC power. The DC power supply system has great limitations, it is not easy to change the voltage, and the load application range is limited, in addition to the special power load, it is necessary to use the inverter to convert the direct current into alternating current. The photovoltaic inverter is the heart of the solar photovoltaic power generation system, which converts the direct current generated by the photovoltaic module into alternating current, which is transmitted to the local load or the power grid, and has the relevant protection functions of the power electronic equipment. Photovoltaic inverter is mainly composed of power module, control circuit board, circuit breaker, filter, reactor, transformer, contactor and cabinet, etc. The production process includes electronic parts pre-processing, whole machine assembly, testing and whole machine packaging process, its development depends on power electronics technology, semiconductor device technology and modern control technology development.

The 6SE7023-8TP60-Z Inverter (Inverter) is a device that converts direct current to alternating current, which is commonly used to power electronic devices. The inverter works as follows:

1. Input filter: The input filter is used to eliminate high-frequency interference in the input power supply.

2. Rectification: The rectifier converts the input direct current into alternating current.

3. Filter: The filter is used to eliminate the ripple in the AC after rectification.

4. Inverter: The inverter converts the filtered AC to the AC that meets the requirements.

The design and configuration of the 6SE7023-8TP60-Z inverter depends on application requirements, such as input voltage range, output voltage and current, efficiency and size. Some common inverters include vehicle inverters, solar inverters, wind inverters and so on. When using the inverter, it is necessary to pay attention to whether the input voltage, output voltage and current parameters match the device to avoid damaging the device or inverter. In addition, it is also necessary to pay attention to the heat dissipation and safety of the inverter to ensure its stable and reliable work.
