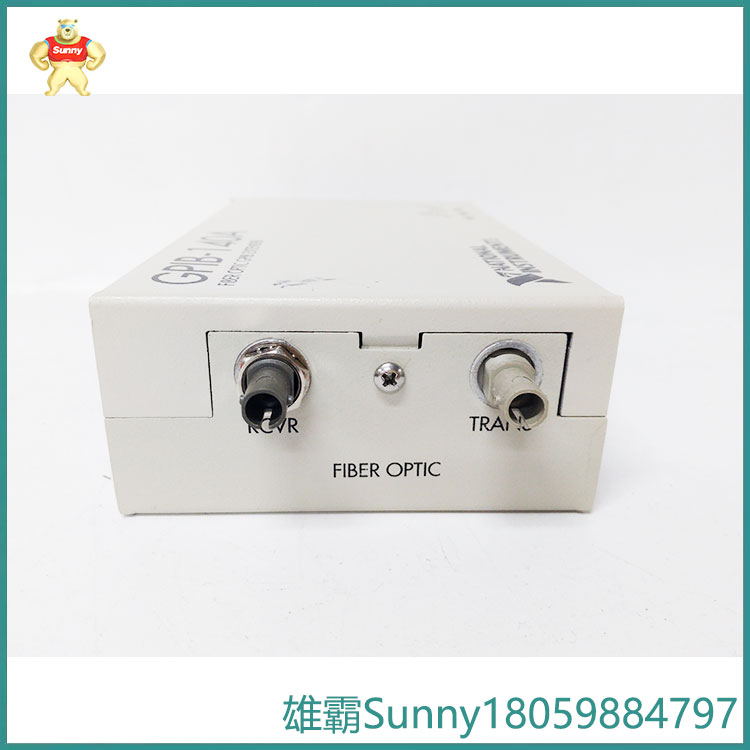

GPIB-140A NI GPIB总线扩展器

产品技术要求：

GPIB-140A 1公里，GPIB总线扩展器- GPIB- 140A可以将GPIB系统的电缆长度延长至1公里，而不会影响GPIB的完整性或需要修改软件。该配件使用缓冲传输技术，以高达1.1 Mb/s (IEEE 488.1)或2.8 Mb/s (HS488)的速率传输数据。GPIB- 140A还将GPIB系统中的最大GPIB设备数量从15个扩展到26个。

1 km, GPIB Bus extender - GPIB-140A extends the cable length of a GPIB system to 1 km without compromising the integrity of GPIB or requiring software modification. The accessory uses buffered transfer technology to transfer data at rates up to 1.1 Mb/s (IEEE 488.1) or 2.8 Mb/s (HS488). The GPIB-140A also expands the maximum number of GPIB devices in a GPIB system from 15 to 26.

The setting method of the extender GPIB-140A is much the same, which is summarized as follows:

1. Place the wireless extender GPIB-140A in a suitable position between the main router and the weak signal area for power supply.

2, mobile phone or laptop to search the signal of the extender, and connect the signal.

3. Enter tplogin.cn in the browser to login to the extender interface and set an administrator password.

4. Follow the setup wizard, scan the signal, select the signal to be extended, enter the wireless password, and save the Settings. (The single-frequency wireless expander only scans 2.4G wireless signals of the expander, while the dual-frequency wireless router scans 2.4G and 5G wireless signals respectively.)
