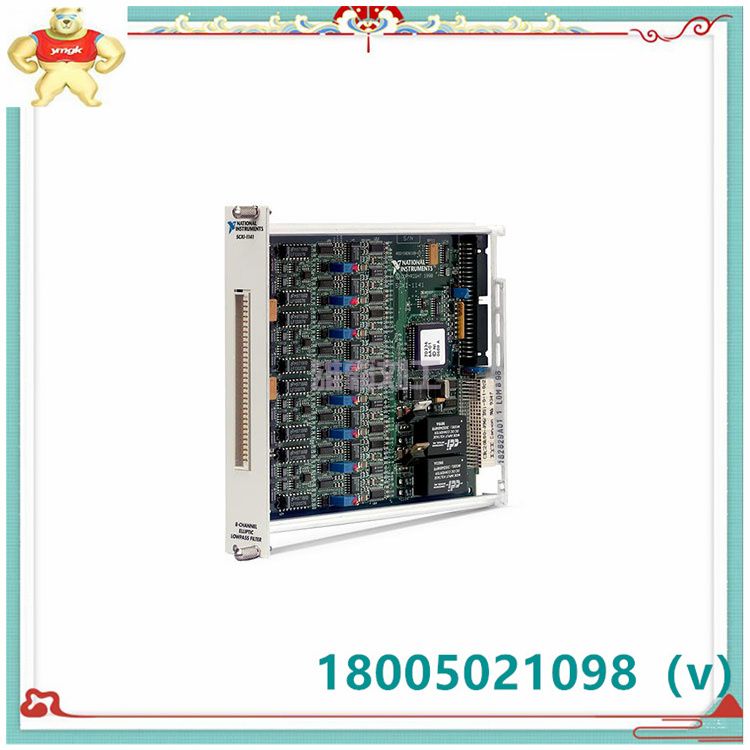

SCXI-1141  SCXI低通滤波器输入模块  可编程滤波器模块

型号：SCXI-1141

SCXI低通滤波器输入模块

用于SCXI的8通道椭圆低通滤波器输入模块—SCXI‑1141是一款可编程滤波器模块，是抗混叠应用的理想选择。   虽然所有通道必须设置相同的截止频率，但您可以通过编程单独让某个通道的低通滤波器的信号绕过。   模拟滤波器和开关电容滤波器相结合，不仅提供了10,000个离散的软件可编程截止频率供用户灵活选择，同时还保持了传统连续时间有源滤波器的低噪声性能。   该模块还提供了外部时钟输入和输出，以便在跟踪滤波器应用中使用外部时钟设置滤波器截止频率。

SCXI-1141可编程滤波器模块在多种应用中发挥着重要作用，如通信、信号处理、音频处理等。通过编程调整滤波器的特性，用户可以更好地适应不同的工作环境和信号类型，实现更高效的信号处理或更优质的音频体验。

具体到实现方式，SCXI-1141可编程滤波器模块可能采用数字或模拟电路技术。数字滤波器模块通常基于数字信号处理器（DSP）或微控制器，通过编程来控制其滤波算法。模拟滤波器模块则可能包含可调电阻、电容等元件，通过改变这些元件的值来调整滤波特性。

Model: SCXI-1141

SCXI low-pass filter input module

The 8-channel elliptical low-pass filter input module for SCXI - SCXI‑1141 is a programmable filter module that is ideal for anti-aliasing applications. Although all channels must be set to the same cutoff frequency, you can program the signal of a low-pass filter for one channel to be bypassed individually. The combination of analog filter and switched capacitor filter not only provides 10,000 discrete software-programmable cut-off frequencies for users to choose from flexibly, but also maintains the low noise performance of traditional continuous time active filters. The module also provides an external clock input and output to set the filter cutoff frequency using an external clock in tracking filter applications.

The SCXI-1141 programmable filter module plays an important role in a variety of applications, such as communication, signal processing, audio processing, etc. By programmatically adjusting the characteristics of the filter, users can better adapt to different working environments and signal types for more efficient signal processing or a better audio experience.

Specific to the implementation mode, the SCXI-1141 programmable filter module may adopt digital or analog circuit technology. A digital filter module is usually based on a digital signal processor (DSP) or microcontroller and is programmed to control its filtering algorithm. The analog filter module may contain elements such as adjustable resistors and capacitors, and the filtering characteristics can be adjusted by changing the values of these elements.
