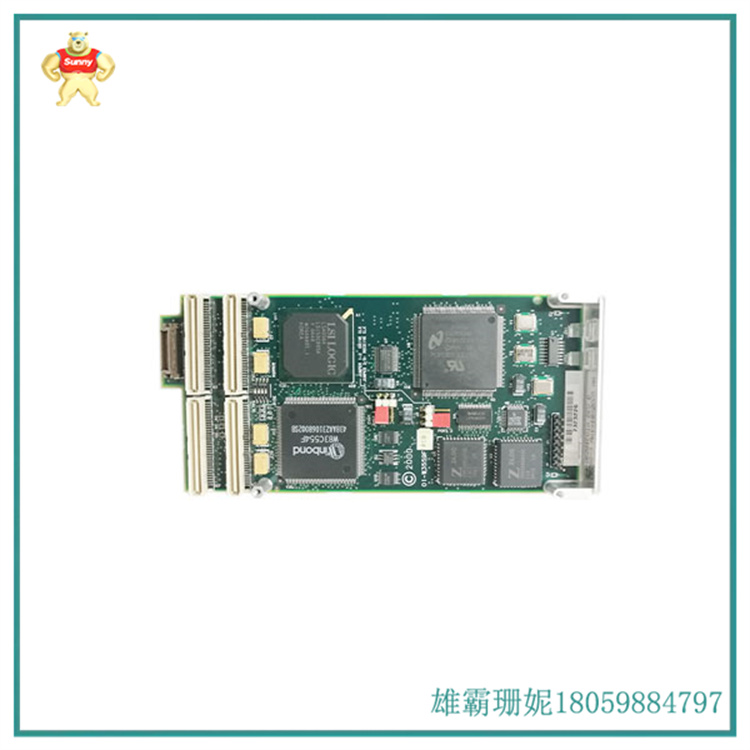

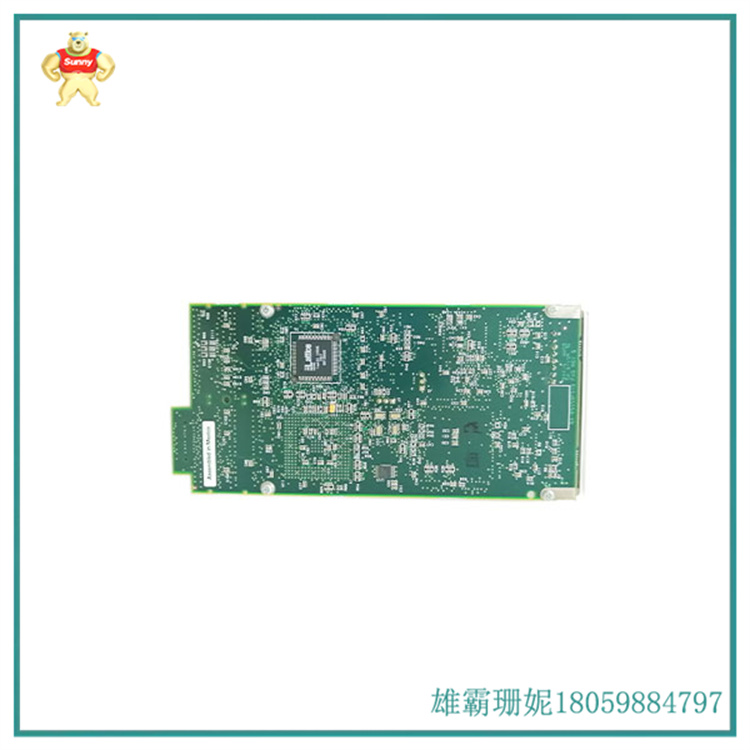

MOTOROLA IPMC761-001 多功能I/O模块

艾默生/摩托罗拉 IPMC712 / IPMC761 多功能 I/O 模块是可选模块，可提供向后 与早期摩托罗拉计算机集团 （MCG） 产品的兼容性 使用 MVME761 或 MVME712M 过渡板。早期微克 产品包括 MVME2600 和 MVME2700 系列 SBC。IPMC712 和 IPMC761 可以在 MVME5100 SBC 上安装和使用。

两种型号均围绕 PMC 外形和两个模块设计 包含 PCI/ISA 桥接器、超宽 SCSI 适配器和超级 I/O 功能性。两个模块均为单宽，标准长度，标准 高度 PMC 板。它们通过 PMC 连接到主机板 PCI 总线 P11、P12、P13、P14 和 P15 连接器。两个模块均通过PMC连接器吸收+5V和+3.3V电压。

Features:

Ultra wide SCSI

One Parallel port

Two asynchronous and two synchronous/asynchronous serial ports

Emerson/Motorola IPMC712/IPMC761 multi-function I/O module is an optional module, which can provide backward compatibility with early Motorola Computer Group (MCG) products. Use MVME761 or MVME712M transition board. Early micro gram products include the MVME2600 and MVME2700 series SBC. IPMC712 and IPMC761 can be installed and used on MVME5100 SBC.

Both models are designed around the PMC shape and two modules, including a PCI/ISA bridge, ultra wide SCSI adapter, and super I/O functionality. Both modules are single width, standard length, and standard height PMC boards. They are connected to the motherboard PCI bus P11, P12, P13, P14, and P15 connectors through PMC. Both modules absorb+5V and+3.3V voltages through PMC connectors.
