产品详情:

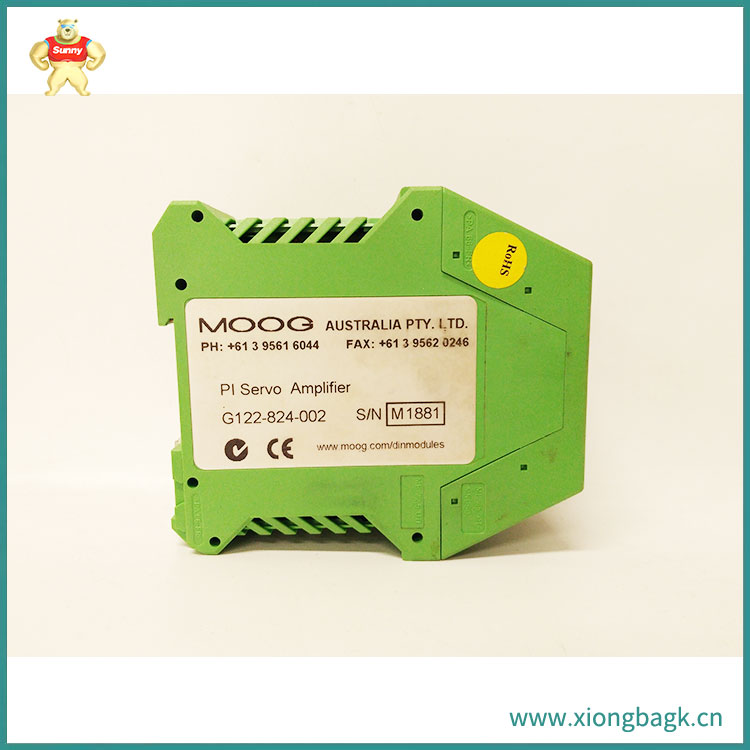

G122-824-002 P-I伺服放大器用于闭环比例和/或积分放大器的应用需要的。放大器G122-824-002内部的选择开关使能比例、积分或两者皆可选择。的许多方面放大器的特性可以通过内部选择开关。这使得一个放大器可以用于许多不同的应用程序。提供的配置选项有多年的设计和经验的结果调试闭环系统。伺服放大器G122-824-002采用模拟电子学。它接受三个输入信号,两个单端和一个差分。这些被求和产生一个错误信号,然后按比例放大,也整合。的比例并将积分信号交换在一起,作为a输出驱动伺服阀的电流或电压。前面板装饰盆,LED指示灯和测试点允许快速并且易于设置和帮助排除故障。伺服放大器G122-824-002 的安装在一个紧凑的DIN导轨安装外壳和需要+24V电源。
These application instructions are guidelines for the application of mobile P-I servo amplifiers. Knowledge of assumed application fundamentals. These notes provide detailed features of each circuit, enabling users to optimize their amplifier configuration. They include the following processes:
• Determine the closed-loop structure of your application.
• Select G122-826-001 for your application. Also refer to data sheet G122-826.
• Determine the closed-loop system configuration.
• Use these application notes to determine your amplifier configuration.
• Draw your wiring diagram.
• Install and debug the system.
Hydraulic design, actuator selection, feedback and other aspects of sensor selection and performance evaluation are not
Applicable to this application notice. The Notes to the Application G122-202 (Part C31015) cover some of these aspects. Moog Application Engineer can provide more detailed help if required.
