HONEYWELL CC-PCNT02 控制构建器

品牌

HONEYWELL

性能

质保一年

成色

全新

原产地

美国

功率

24VDC

频率

120Hz

颜色

绿色

重量

0.5kg

可售卖地

全国

类型

DCS

型号

CC-PCNT02

联系电话：18059884797

立即咨询在线留言

产品详情

HONEYWELL CC-PCNT02 控制构建器

【功能描述】

•在PKS R300版本，C300是新一代的基于CEE执行环境的控制器•C300有几部分组成:

-控制器硬件

-控制软件CEE(Control Execution Environment)

-相应机电部份柜内电源控制网络接口

-Fault Tolerant Ethernet(FTE)2本地I/O Link接口

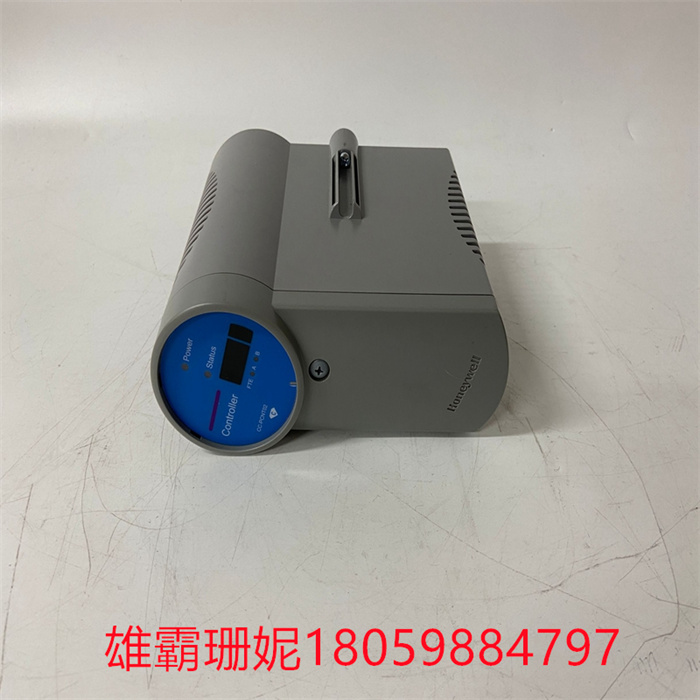

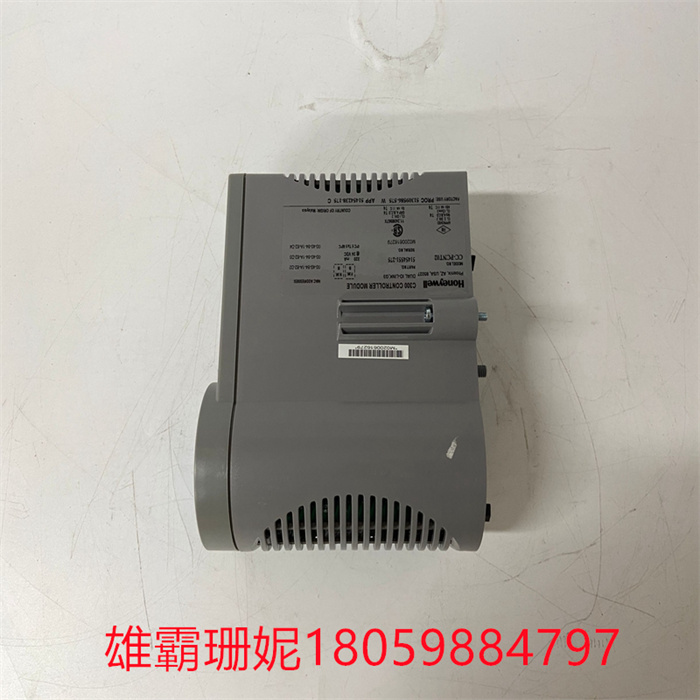

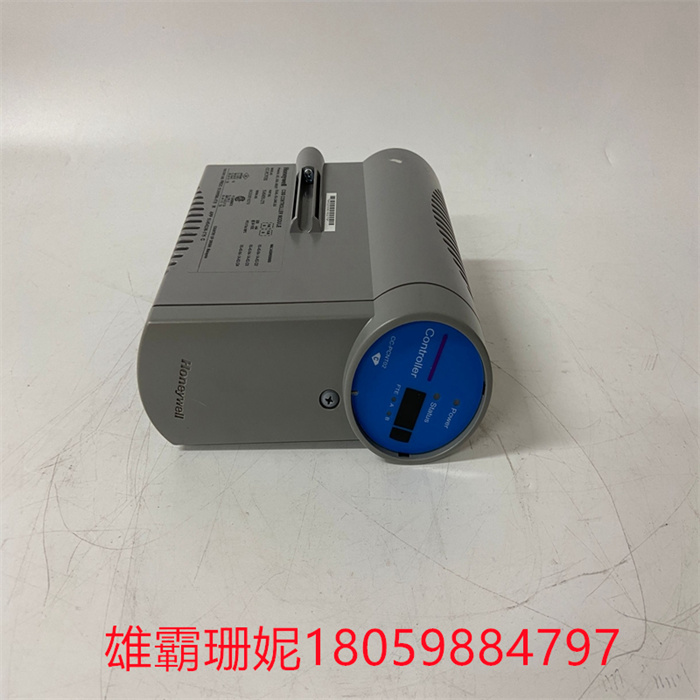

C300控制器模块

●运行CEE(控制操作系统)

支持

PMIO

-C系列I/0

-A系列卡件式I/O

灵活的/0支持:

-可混合使用不同的/0接口

-支持2个IOLINK接口

-每个C300最多支持64个冗余I/O模件

◆每个IOL可以支持40冗余模件

CC-PCNT02控制构建器提供了一个图形工程环境，工程师可以在其中配置Experion系统，并通过使用库中可用的各种功能块创建控制策略。基于C300 CEE的控制策略可以配置为具有50毫秒的最小执行速率。

TC/RTD IOM支持PV交付前打开传感器检测的配置参数。在OTD配置激活的情况下，PV被采样并保持，同时在同一测量窗口内执行OTD循环。如果OTD为负，则PV通过系统向上传播。

如果OTD为正，则PV设置为NAN，并设置输入通道软故障。通过这种方式，对于由于热电偶开路而无效的PV值，不会发生不适当的控制动作。PV采样/报告不会因OTD处理而增加延迟。

系列8 AO模块支持每个通道的FAILOPT参数。用户可以将每个通道配置为HOLD LAST VALUE（保持最后值）或SHED（SHED）为SAFE VALUE（安全值）。如果IOM设备电子设备出现故障，输出将始终变为零，即安全状态

HONEYWELL CC-PCNT02 控制构建器

• In the PKS R300 version, the C300 is a new generation of controllers based on CEE execution environments • The C300 consists of several parts:

- Controller hardware

- Control Execution Environment (CEE)

- Corresponding electromechanical parts  cabinet power supply  control network interface

-Fault Tolerant Ethernet(FTE)2 Local I/O Link interfaces

C300 controller module

● Run CEE(Control Operating System)

support

PMIO

-C Series I/0

-A series card type I/O

Flexible /0 support:

- Different /0 interfaces can be mixed

- Supports two IOLINK interfaces

- Each C300 supports up to 64 redundant I/O modules

◆ Each IOL can support 40 redundant modules

The CC-PCNT02 control builder provides a graphical engineering environment where engineers can configure Experion systems and create control policies by using various functional blocks available in the library. C300 CEE-based control policies can be configured to have a minimum execution rate of 50 milliseconds.

TC/RTD IOM supports configuration parameters for sensor detection to be turned on before PV delivery. With the OTD configuration active, the PV is sampled and held while the OTD cycle is performed within the same measurement window. If OTD is negative, PV propagates upward through the system.

If OTD is positive, PV is set to NAN and input channel soft failure is set. In this way, no improper control action can occur for PV values that are invalid due to the thermocouple's open circuit. PV sampling/reporting does not add latency due to OTD processing.

The Series 8 AO module supports the FAILOPT parameter for each channel. Users can configure each channel to HOLD LAST VALUE or SHED (SHED) to SAFE VALUE. If the IOM device electronics fail, the output will always go to zero, i.e., safe state
