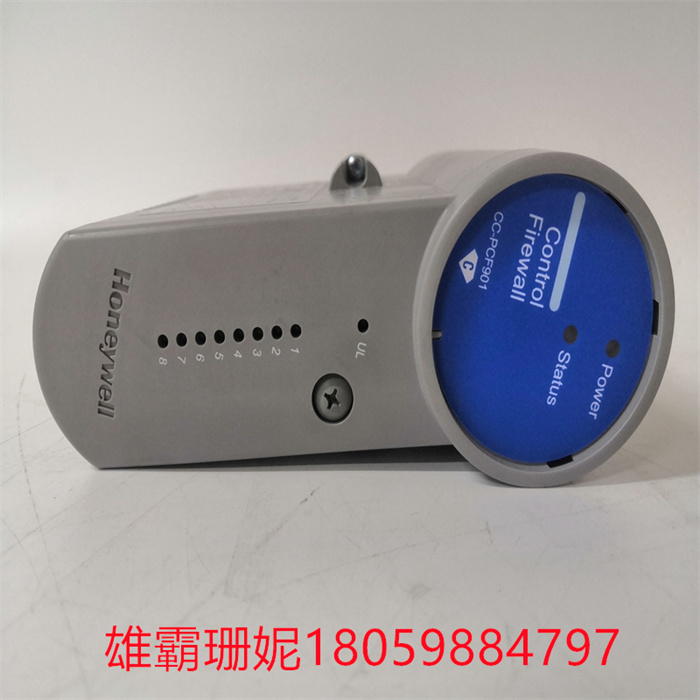

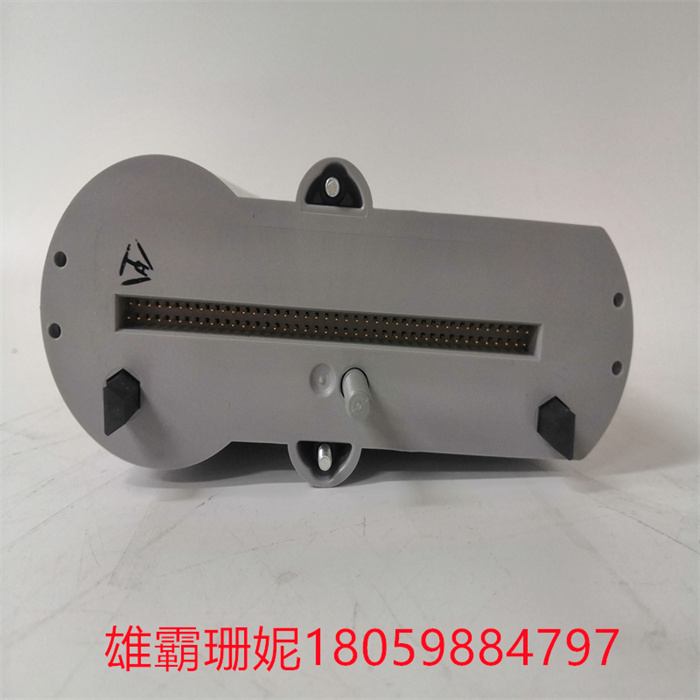

HONEYWELL CC-PCF901 控制防火墙模块

【功能描述】

制造商:霍尼韦尔

产品编号:CC-PCF901

产品类型:控制防火墙模块

为多个C系列FIM提供高效的FTE电缆分配。

模块安装在CF9输入/输出终端组件(IOTA)上。

向机柜内网络节点提供FTE分布。(C300控制器和C系列模块)

电源额定值:0.112A 24VDC

运输重量:2公斤

本产品应用灵活，可以组成多种光纤网络。逻辑独立双总线电接口,可实现电接口的备份或者单设备接入双冗余总线系统;采用点对点的网络时可以实现通过光纤连接两Profibus DP总线的网段；采用双光口链形网络的光纤总线上实现多网段的Profibus DP总线连接（200个）；同时，本产品采用双光口实现双纤环网冗余功能，当某处光纤故障时，系统会在10ms内重建网络链路，保障系统的正常通信，实现对信号传输的自愈保护功能，网络故障排除后系统会自动恢复；该系列产品采用公司自行研发的专有环网协议Ci-ring，不需设置，不需要根节点，快速完成网络的成环和解环功能，该系列产品即插即用，不需配置，大程度的使用户安装和调试过程简单化。

性能指标：

数据电接口:

*9针的Sub_D插孔连接器，管脚定义符合Profibus DP的协议规范.

*支持Profibus DP总线标准.

*通信速率：9.6kBit/s、19.2 kBit/s、45.45kBit/s、93.75k kBit/s、187.5kBit/s、500kBit/s、1.5MBit/s、6MBit/s and 12MBit/s.

*速率设置：自动识别或拨码开关设置

*信号延时（电口）：≤11Bit

*具备4000V的防雷击以及1.5A的过流保护和600W浪涌保护功能；

*终端电阻：本机不带终端电阻,请按需要外接.

光纤接口：

*光纤波长：多模850nm、1310 nm;单模1310 nm、1550nm。

*传输光纤：多模50/125 um、62.5/125 um、100/140um;单模8.3/125 um、9/125um、10/125um。

*传输距离：多模2Km，单模20Km，更远距离可选。

*光纤接口类型：SC、FC、ST可选,标配SC光接口。

*光线路误码率：<10-9

*信号延时（光口）：≤1.6us/节点。

HONEYWELL CC-PCF901 控制防火墙模块

Manufacturer: Honeywell

Product number :CC-PCF901

Product type: Control firewall module

Efficient FTE cable distribution for multiple CSeries FIMs.

The module is installed on the CF9 Input/Output Terminal Assembly (IOTA).

Provides FTE distribution for network nodes in the cabinet. (C300 controller and C Series module)

Power rating :0.112A 24VDC

Shipping weight :2 kg

This product is flexible and can be used to form a variety of optical fiber networks. The logic independent dual bus electrical interface can realize the backup of the electrical interface or the single device can access the dual redundant bus system; When the point-to-point network is adopted, the network segments of two Profibus DP buses can be connected by optical fiber. Multi-network segment Profibus DP bus connection (200) is realized on the fiber bus of double optical port chain network; At the same time, the product uses dual optical ports to realize the redundancy function of dual fiber ring network. When an optical fiber fails, the system will rebuild the network link within 10ms to ensure the normal communication of the system and realize the self-healing protection function of signal transmission. The system will automatically recover after the network fault is removed. This series of products adopts the company's own research and development of the proprietary ring network protocol Ci-ring, no need to set, no root node, quickly complete the network ring formation and unring function, the series of products plug and play, no configuration, to a large extent, the user installation and debugging process simplified.

Performance index:

Data electrical interface:

* 9-pin Sub_D jack connector, pin definition conforms to Profibus DP protocol specification.

* Support Profibus DP bus standard.

* Communication rate: 9.6kBit/s, 19.2 kBit/s, 45.45kBit/s, 93.75k kBit/s, 187.5kBit/s, 500kBit/s, 1.5MBit/s, 6MBit/s and 12MBit/s.

* Rate Settings: Automatic identification or dip switch Settings

* Signal delay (electrical) : ≤11Bit

* With 4000V lightning protection and 1.5A overcurrent protection and 600W surge protection function;

* Terminal resistance: This machine does not have terminal resistance, please connect it as required.

Optical fiber interface:

* Fiber wavelength: multi-mode 850nm, 1310nm; Single mode 1310 nm, 1550nm.

* Transmission fiber: multi-mode 50/125um, 62.5/125um, 100/140um; Single mode 8.3/125um, 9/125um, 10/125um.

* Transmission distance: multi-mode 2Km, single-mode 20Km, longer distance optional.

* Optical interface type: SC, FC, ST Optional. SC optical interface is standard.

* Bit error rate of optical line: < Ten to nine

* Signal delay (optical port) : ≤1.6us/ node.
