Z7127  模拟输入模块 采用RS-485总线作为数据通信线路

Z7127  模拟输入模块 采用RS-485总线作为数据通信线路

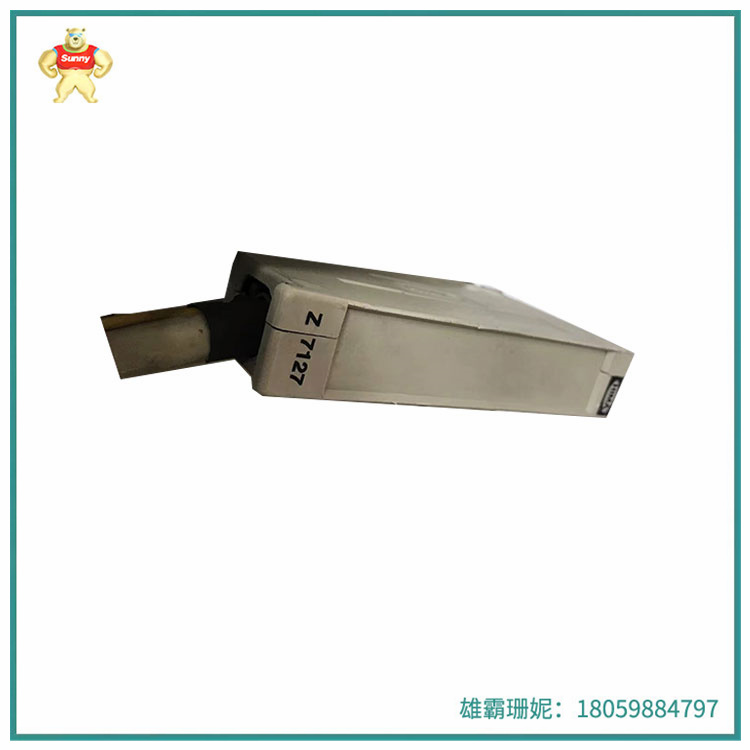

Z7127模拟输入模块是一款能够将远程现场的模拟量信号采集至计算机的设备。它通常采用RS-485总线作为数据通信线路，提供模拟量转485功能，能够同时将模拟量输入至模块，并通过RS-485总线传输至计算机。这种模块能够多个模块组合传输更多路数模拟量信号，并且能够在485线路上分散配置，采用地址码进行区分，可以直接接入MODBUS RTU协议的组态软件。

Z7127模拟量输入模块的作用是采集模拟量信号，如电压、电流、温度等数值。在工业自动化测量与控制系统中，模拟量输入模块可测量压力、温度、电量等变送器输出的4～20mA、0-20mA、0-10V或0～5V信号，及PT100等各型号的热电阻温度。

Z7127模拟输入模块可用于解决PLC、运动控制器模拟输入问题，比如电流检测、电压检测、温度检测等。其原理是当干扰比较大时，可利用C1627，C1628，C624，C331四个电容构成二级滤波电路来改善电路的设计。此外，它还支持多种采集量程、各类组态软件对接等技术参数。

Z7127模拟输入模块的应用非常广泛，如用于电力监控系统、智能家居控制系统、医疗设备控制系统等领域。

Z7127  模拟输入模块 采用RS-485总线作为数据通信线路

Z7127 Analog input module is a device that can collect analog signals from remote field to computer. It usually uses the RS-485 bus as a data communication line, providing analog to 485 function, which can simultaneously input analog to the module and transmit it to the computer through the RS-485 bus. This module can combine multiple modules to transmit more analog signals, and can be distributed on 485 lines, using address code to distinguish, and can directly access the configuration software of MODBUS RTU protocol.

The function of the Z7127 analog input module is to collect analog signals, such as voltage, current, temperature and other values. In the industrial automation measurement and control system, the analog input module can measure the 4 ~ 20mA, 0-20mA, 0-10V or 0 ~ 5V signals output by the transmitter such as pressure, temperature and electricity, and the thermal resistance temperature of various models such as PT100.

Z7127 analog input module can be used to solve PLC, motion controller analog input problems, such as current detection, voltage detection, temperature detection, etc. The principle is that when the interference is relatively large, C1627, C1628, C624, C331 four capacitors can be used to form a two-stage filter circuit to improve the circuit design. In addition, it also supports a variety of acquisition ranges, various configuration software docking and other technical parameters.

The Z7127 analog input module is used in a wide range of applications, such as power monitoring systems, smart home control systems, medical equipment control systems and other fields.
