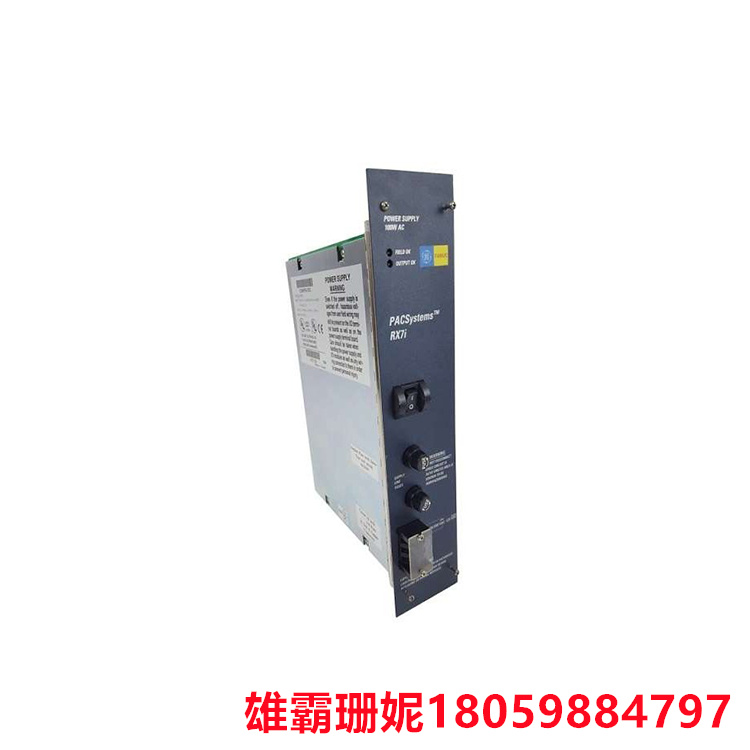

IC698PSA350  电源模块 该电源安装在RX7i通用背板上

描述:IC698PSA350是一款电源模块，是艾默生自动化旗下PACSystem RX7i平台的一部分，以前由GE Intelligent platform (GE IP)生产。该电源安装在RX7i通用背板上。它的输入电压范围为85至264 VAC, 47至63 Hz, 100-150VDC，最大输入功率为440瓦，典型和最大500瓦。它的输出功率为350瓦，最大输出功率，总输出功率为5 VDC, 12 VDC和-12 VDC三种输出，输出电流分别为0-60安培，0-12安培和0- 4安培。

IC698PSA350 电源模块是可以直接贴装在印刷电路板上的电源供应器，其特点是可为专用集成电路（ASIC）、数字信号处理器 (DSP)、微处理器、存储器、现场可编程门阵列 (FPGA) 及其他数字或模拟负载提供供电。一般来说，这类模块称为负载点 (POL) 电源供应系统或使用点电源供应系统 (PUPS)。由于模块式结构的优点甚多，因此模块电源广泛用于交换设备、接入设备、移动通讯、微波通讯以及光传输、路由器等通信领域和汽车电子、航空航天等。

IC698PSA350 电源模块的优点包括：

1. 设计简单：只需一个电源模块，配上少量分立元件，即可获得电源。

2. 缩短开发周期：IC698PSA350 模块电源一般备有多种输入、输出选择。用户也可以重复迭加或交叉迭加，构成积木式组合电源，实现多路输出。

3. 变更灵活：产品设计如需更改，只需转换或增减若干模块即可。

4. 散热方便：模块电源外壳有散热鳍片，散热效果好。

5. 质量可靠：IC698PSA350 模块电源一般均采用全自动化生产，并配有高度自动化的检测设备，质量稳定可靠。

随着科学技术飞速发展，对电源可靠性、容量、体积的要求越来越高，模块电源越来越显示出其优越性，凭借其可靠的性能、较高的性价比，被广泛应用于各个领域。

IC698PSA350  电源模块 该电源安装在RX7i通用背板上

Description: The IC698PSA350 is a power module that is part of Emerson Automation's PACSystem RX7i platform and was previously manufactured by GE Intelligent platform (GE IP). The power supply is installed on the RX7i universal backplane. It has an input voltage range of 85 to 264 VAC, 47 to 63 Hz, 100 to 150VDC, and a maximum input power of 440 watts, typical and up to 500 watts. It has an output power of 350 watts, a maximum output power, and a total output power of 5 VDC, 12 VDC, and -12 VDC with output currents of 0-60 amps, 0-12 amps, and 0-4 amps, respectively.

The IC698PSA350 power module is a power supply that can be mounted directly on a printed circuit board and features an application-specific integrated circuit (ASIC), digital signal processor (DSP), microprocessor, memory, field programmable gate array (FPGA) and other digital or analog loads. In general, such modules are called point-of-load (POL) power supply systems or point-of-use power supply systems (PUPS). Because of the advantages of the modular structure, the module power supply is widely used in switching equipment, access equipment, mobile communication, microwave communication, optical transmission, routers and other communication fields and automotive electronics, aerospace and so on.

The benefits of the IC698PSA350 power module include:

1. Simple design: Only one power module, with a small number of discrete components, you can obtain power.

2. Shorten the development cycle: IC698PSA350 module power supply generally has a variety of input and output options. The user can also repeat superposition or cross superposition to form a modular power supply to achieve multiple output.

3. Flexible change: If the product design needs to be changed, just convert or add or subtract several modules.

4. Convenient heat dissipation: the module power supply shell has heat dissipation fins, good heat dissipation effect.

5. Reliable quality: IC698PSA350 module power supply is generally fully automated production, and is equipped with highly automated testing equipment, stable and reliable quality.

With the rapid development of science and technology, the requirements for power reliability, capacity and volume are getting higher and higher, and the module power supply is more and more showing its superiority. By virtue of its reliable performance and high cost performance, it is widely used in various fields.
