DS200TCQEG2A  I/O 处理器板  确保输入/输出任务的正确执行

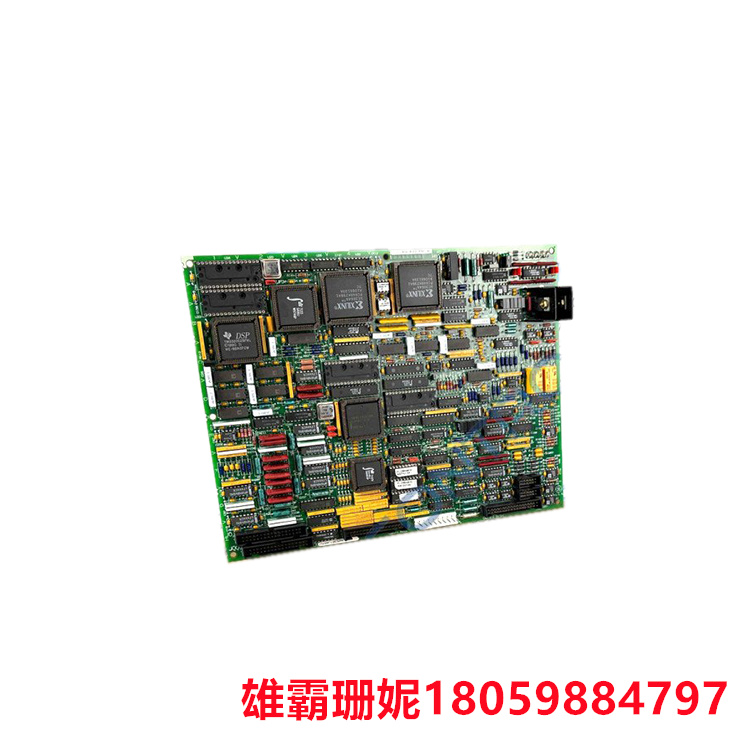

LM6000 I/O 处理器板DS200TCQEG2A装有 8 个跳线和 4 个 34 针连接器。它还具有一个可编程逻辑器件和多个可擦除可编程只读存储器模块 （EPROM）。分配给 34 针连接器的 ID 是 JQQ、3PL 和 JLL。LM6000 I/O 处理器板DS200TCQEG2A还装有一个水平安装在板上的 LED。

DS200TCQEG2A的 4-20 mA 输出电路是什么？

DS200TCQEG2A对 I/O 信号进行缩放和调节。这些DS200TCQEG2A刻度和条件的信号之一是 4-20 mA 输出信号。DS200TCQEG2A提供电路，用于驱动两个可选的 4-20 mA/20-200 mA 输出到 TBQE 端子板。DS200TCQEG2A通过 DS200TCQEG2A 上的 JLL 连接器执行此操作。这些信号的诊断是在DS200TCQEG2A上完成的，通常用于控制设备。连接到DS200TCQEG2A的硬件跳线用于选择最大电流输出。

DS200TCQEG2A 的 JQQ 连接器有什么作用？

DS200TCQEG2A 的 JQQ 连接器可读取 LM 振动输入、接近振动输入和脉搏速率速度传感器输入。DS200TCQEG2A上的 JQQ 通过 TBQE 终端板实现此目的。

DS200TCQEG2A I/O 处理器板是输入/输出设备的核心部件，负责处理所有与输入/输出相关的数据和任务。

DS200TCQEG2A I/O 处理器板通常由多个集成电路和电子元件组成，包括输入/输出控制器、缓冲区、接口电路等。它负责接收和发送数据，控制输入/输出设备的操作，并与中央处理器协同工作，确保输入/输出任务的正确执行。

DS200TCQEG2A I/O 处理器板通常被用于各种类型的计算机和其他电子设备中，例如个人电脑、服务器、工作站、网络设备等。不同的 I/O 处理器板适用于不同的输入/输出设备和计算机架构，具有不同的性能和功能。

DS200TCQEG2A  I/O 处理器板  确保输入/输出任务的正确执行

The LM6000 I/O processor board DS200TCQEG2A has eight jumpers and four 34-pin connectors. It also has a programmable logic device and multiple erasable programmable read-only memory modules (EPROMs). The ids assigned to 34-pin connectors are JQQ, 3PL, and JLL. The LM6000 I/O processor board DS200TCQEG2A also has an LED mounted horizontally on the board.

What is the 4-20 mA output circuit of DS200TCQEG2A?

The DS200TCQEG2A scales and adjusts the I/O signal. One of the signals for these DS200TCQEG2A scales and conditions is a 4-20 mA output signal. The DS200TCQEG2A provides circuitry for driving two optional 4-20 mA/20-200 mA outputs to the TBQE terminal board. DS200TCQEG2A does this through the JLL connector on the DS200TCQEG2A. The diagnosis of these signals is done on the DS200TCQEG2A and is usually used for control devices. Hardware jumpers connected to the DS200TCQEG2A are used to select the maximum current output.

What is the role of the DS200TCQEG2A JQQ connector?

The DS200TCQEG2A's JQQ connector reads LM vibration input, proximity vibration input, and pulse rate speed sensor input. The JQQ on the DS200TCQEG2A uses the TBQE terminal board for this purpose.

The DS200TCQEG2A I/O processor board is the core component of the input/output device and is responsible for handling all data and tasks related to input/output.

The DS200TCQEG2A I/O processor board is usually composed of multiple integrated circuits and electronic components, including input/output controllers, buffers, interface circuits, etc. It is responsible for receiving and sending data, controlling the operation of input/output devices, and working in conjunction with the central processor to ensure the correct execution of input/output tasks.

The DS200TCQEG2A I/O processor board is commonly used in various types of computers and other electronic devices, such as personal computers, servers, workstations, network equipment, etc. Different I/O processor boards are suitable for different input/output devices and computer architectures, with different performance and features.
