DS200TCQCG1BJF  溢流板  具有 3 个 34 针连接器

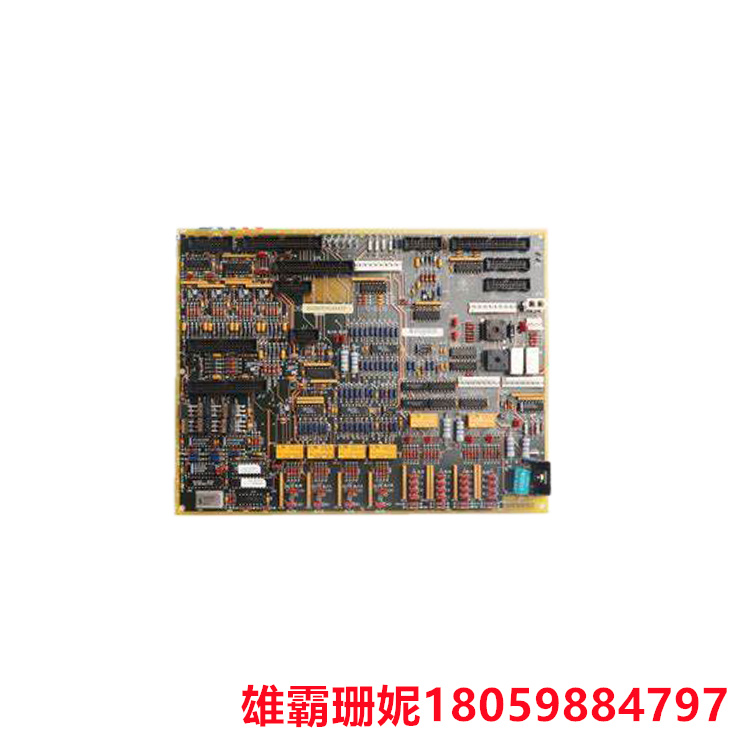

GE RST 溢流板DS200TCQCG1BJF装有 24 个跳线和 3 个 40 针连接器。它还具有 3 个 34 针连接器和 1 个 16 针连接器。分配给 16 针连接器的 ID 是 JC。分配给 40 针连接器的 ID 是 JFF、JE 和 6PL。GE RST溢流板DS200TCQCG1BJF还包含多个继电器，用于打开和关闭板上的电路。继电器无需维护，并用引线焊接到电路板上。34 针连接器的 ID 为 JFF、1PL 和 JA。40 针连接器和 34 针连接器连接到带状电缆，将 GE RST 溢流板DS200TCQCG1BJF连接到驱动器中的其他板和组件。更换电路板时，务必维护电缆在驱动器中布置的电缆布线。由于带状电缆传输信号，因此布线不当可能会引入离信号电缆太近的电源线的干扰。当信号电缆和电源线相互平行布线时，就会发生干扰。最好将它们分开。如果它们必须相互接触，请仅以 90 度角相互交叉。

GE RST 溢流板DS200TCQCG1BJF装有 24 个跳线和 3 个 40 针连接器。它还具有 3 个 34 针连接器和 1 个 16 针连接器。分配给 16 针连接器的 ID 是 JC。分配给 40 针连接器的 ID 是 JFF、JE 和 6PL。GE RST溢流板DS200TCQCG1BJF还包含多个继电器，用于打开和关闭板上的电路。继电器无需维护，并用引线焊接到电路板上。34 针连接器的 ID 为 JFF、1PL 和 JA。40 针连接器和 34 针连接器连接到带状电缆，将 GE RST 溢流板DS200TCQCG1BJF连接到驱动器中的其他板和组件。更换电路板时，务必DS200TCQCG1BJF维护电缆在驱动器中布置的电缆布线。由于带状电缆传输信号，因此布线不当可能会引入离信号电缆太近的电源线的干扰。当信号电缆和电源线相互平行布线时，就会发生干扰。最好将它们分开。如果它们必须相互接触，请仅以 90 度角相互交叉。

DS200TCQCG1BJF  溢流板  具有 3 个 34 针连接器

The GE RST overflow plate DS200TCQCG1BJF is fitted with 24 jumpers and 3 40-pin connectors. It also features three 34-pin connectors and one 16-pin connector. The ID assigned to the 16-pin connector is JC. The ids assigned to 40-pin connectors are JFF, JE, and 6PL. The GE RST overflow board DS200TCQCG1BJF also contains multiple relays for opening and closing circuits on the board. The relays are maintenance-free and are soldered to the circuit board with leads. The ids of the 34-pin connectors are JFF, 1PL, and JA. The 40-pin connector and 34-pin connector are connected to the ribbon cable to connect the GE RST overflow board DS200TCQCG1BJF to other boards and components in the drive. When replacing the circuit board, be sure to maintain the cable wiring that the cable has laid out in the driver. Because ribbon cables transmit signals, improper wiring may introduce interference from power lines that are too close to the signal cable. Interference occurs when signal cables and power cables are routed parallel to each other. It's best to separate them. If they must touch each other, please only cross each other at a 90 degree Angle.

The GE RST overflow plate DS200TCQCG1BJF is fitted with 24 jumpers and 3 40-pin connectors. It also features three 34-pin connectors and one 16-pin connector. The ID assigned to the 16-pin connector is JC. The ids assigned to 40-pin connectors are JFF, JE, and 6PL. The GE RST overflow board DS200TCQCG1BJF also contains multiple relays for opening and closing circuits on the board. The relays are maintenance-free and are soldered to the circuit board with leads. The ids of the 34-pin connectors are JFF, 1PL, and JA. The 40-pin connector and 34-pin connector are connected to the ribbon cable to connect the GE RST overflow board DS200TCQCG1BJF to other boards and components in the drive. When replacing the board, be sure that DS200TCQCG1BJF maintains the cable routing that the cable is laid out in the driver. Because ribbon cables transmit signals, improper wiring may introduce interference from power lines that are too close to the signal cable. Interference occurs when signal cables and power cables are routed parallel to each other. It's best to separate them. If they must touch each other, please only cross each other at a 90 degree Angle.
