系统模块备件 DS200TCCBG3ANE  将信号传输到板卡进行处理

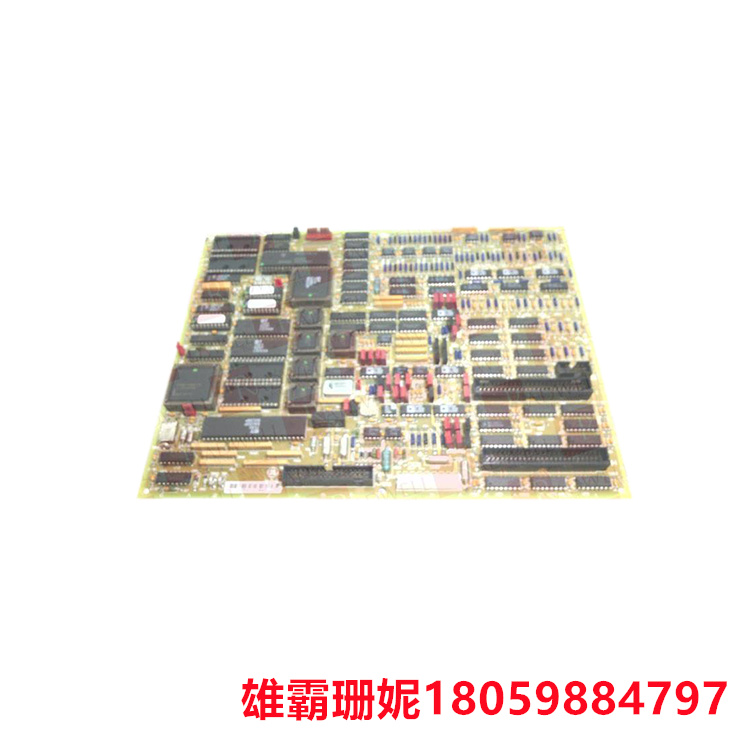

DS200TCCBG3ANE是GE通用电气的一个系统模块备件。

这个备件具有1个接线端子，带有用于72条信号线的端子。它还包含1个50针连接器。接线端子上的端子ID包括OUT2、OUT1、COM1、COM2、P15、SO21和L23。它还包含用于6根信号线的接线柱。这个备件安装在驱动器中时，可能会连接多条信号线和带状电缆。一些信号线将信号从电路板传输到驱动器中的其他电路板进行处理，其他信号线将信号传输到板卡进行处理，然后将信号发送到其他板进行进一步处理。

DS200TCCBG3ANE备件具有多种优点。

首先，DS200TCCBG3ANE它采用单一整体结构设计，非常适合数千种应用，如复杂的运动控制、采矿、水处理、电梯控制、高速包装、注塑、材料处理、食品加工、连续排放监测等。

其次，它还配备32KB的用户内存、4K I/O、8个机架和0.22msec/K的逻辑执行。

此外，DS200TCCBG3ANE它还与以太网、各种总线模块和控制等高级模块兼容。通过只配置所需的系统，可以节省关键空间并降低成本。

最后，DS200TCCBG3ANE触点输入中的降噪电路可保护浪涌和高频噪声。

DS200TCCBG3ANE备件的安装方法比较复杂，具体步骤如下：

准备安装工具和材料，确保备件和工具的完好性。

确定安装位置，确保安装位置的稳定性和安全性。

将备件放置在安装位置上，确保放置正确。

使用工具将备件固定在安装位置上，确保固定牢固。

连接信号线和电缆，确保连接正确和牢固。

进行测试和调试，确保备件正常工作。

需要注意的是，在安装过程中要小心操作，避免损坏备件和电路板。

系统模块备件 DS200TCCBG3ANE  将信号传输到板卡进行处理

The DS200TCCBG3ANE is a system module spare part from GE General Electric.

This spare part has 1 terminal with terminals for 72 signal lines. It also includes a 50-pin connector. The terminal ID on the wiring terminal can be OUT2, OUT1, COM1, COM2, P15, SO21, and L23. It also contains terminals for 6 signal lines. When this spare part is installed in the drive, multiple signal wires and ribbon cables may be connected. Some signal lines transmit the signal from the board to other boards in the driver for processing, others transmit the signal to the board for processing, and then send the signal to other boards for further processing.

The DS200TCCBG3ANE spare parts have many advantages.

First, the DS200TCCBG3ANE is designed with a single integral structure, ideal for thousands of applications such as complex motion control, mining, water treatment, elevator control, high-speed packaging, injection molding, material handling, food processing, continuous emission monitoring, and more.

Second, it also comes with 32KB of user memory, 4K I/O, 8 racks, and 0.22msec/K logic execution.

In addition, the DS200TCCBG3ANE is compatible with advanced modules such as Ethernet, various bus modules and controls. By configuring only the systems you need, you can save critical space and reduce costs.

Finally, the noise reduction circuit in the DS200TCCBG3ANE contact input protects against surges and high-frequency noise.

The installation method of DS200TCCBG3ANE spare parts is complicated. The specific steps are as follows:

Prepare installation tools and materials, and ensure that spare parts and tools are in good condition.

Determine the installation position to ensure installation stability and security.

Place the spare parts in the installation position and ensure that they are properly placed.

Secure the spare parts to the installation position using tools.

Connect signal cables and cables to ensure that they are properly and securely connected.

Test and debug to ensure spare parts work properly.

It should be noted that during the installation process, care should be taken to avoid damaging spare parts and circuit boards.
