模拟板 DS200TCCBG1B  兼容各种控制系统

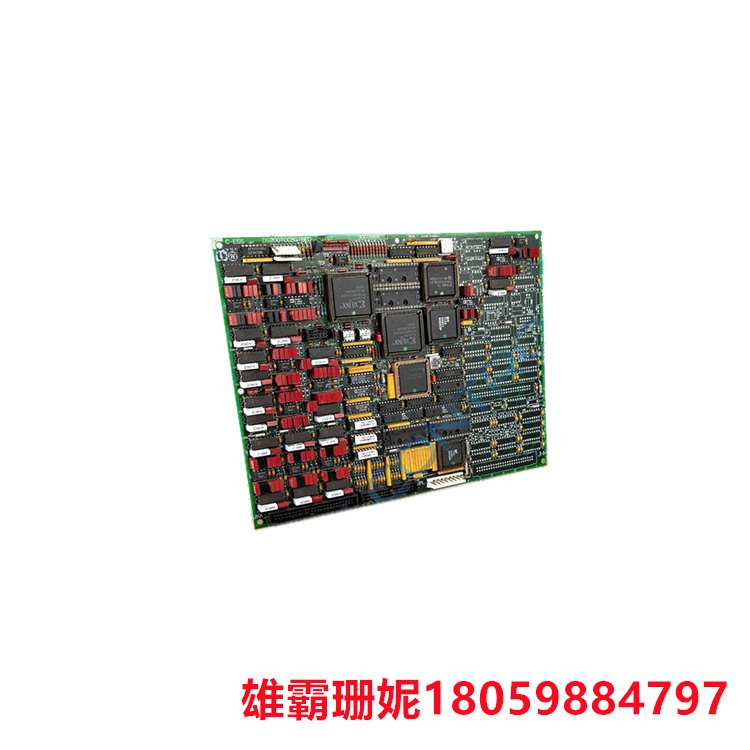

产品名称:GE DS200TCCBG1B 模块

产品说明:该模块专为工业应用而设计，可为各种过程提供可靠高效的控制。产品参数:

—电压:24V DC

—输入:4~20ma

—输出:0～10v DC

—工作温度:-40℃~ 85℃

—外形尺寸:100mm x 50mm x 25mm

规格:

—高品质材料，经久耐用

—易于安装和维护

—兼容各种控制系统

—适用于恶劣的工业环境

通用电气 I/O TC2000 模拟板DS200TCCBG1B具有一个 80196 微处理器和多个 PROM 模块。它还包含一个 LED 和 2 个 50 针连接器。从电路板的侧面可以看到 LED。50 针连接器的 ID 是 JCC 和 JDD。该板还装有 3 个跳线。跳线的 ID 印在电路板的表面。ID 为 JP1、JP2 和 JP3。当原始主板安装在驱动器中时，安装人员会配置主板以最好地满足驱动器的要求。跳线使安装程序能够通过更改跳线的位置来设置配置值。跳线的默认位置在大多数情况下使用，不需要安装人员进一步操作。但是，在某些情况下，安装人员会根据电路板随附的打印信息中提供的信息来更改跳线的位置。

模拟板 DS200TCCBG1B  兼容各种控制系统

Product name :GE DS200TCCBG1B module

Product Description: This module is designed for industrial applications and provides reliable and efficient control of various processes. Product parameters:

- Voltage :24V DC

- Enter 4 to 20ma

- Output :0 to 10v DC

- Operating temperature :-40 ° C to 85 ° C

- Overall dimensions :100mm x 50mm x 25mm

Specifications:

- High quality material, durable

- Easy to install and maintain

- Compatible with various control systems

- Suitable for harsh industrial environments

The GE I/O TC2000 analog board DS200TCCBG1B has an 80196 microprocessor and multiple PROM modules. It also contains an LED and 2 50-pin connectors. The LED can be seen from the side of the board. The ID of the 50-pin connector is JCC and JDD. The board is also equipped with 3 jumpers. The jumper ID is printed on the surface of the circuit board. The ids are JP1, JP2, and JP3. When the original motherboard is installed in the drive, the installer configures the motherboard to best meet the drive's requirements. Jumpers enable the installer to set configuration values by changing the location of the jumpers. The default position of the jumper is used in most cases and requires no further action by the installer. However, in some cases, the installer will change the position of the jumper based on the information provided in the printed information that comes with the board.
