模拟板 DS200TCCAG2A  提高电路设计的效率和可靠性

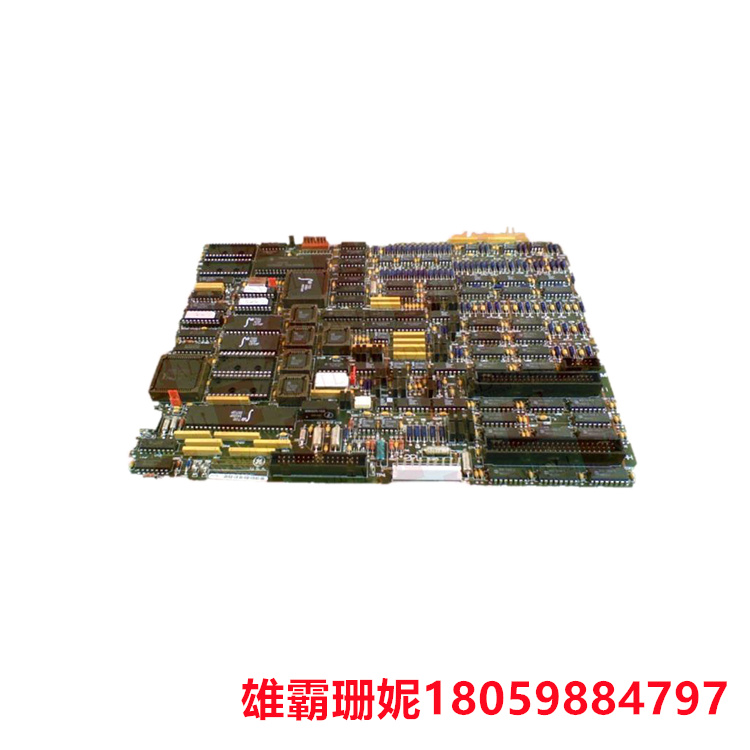

GE I/O TC2000 模拟板DS200TCCAG2A具有一个 80196 微处理器和多个 PROM 模块。它还包含一个 LED 和 2 个 50 针连接器。从电路板的侧面可以看到 LED。50 针连接器的 ID 是 JCC 和 JDD。GE I/O TC2000 模拟板DS200TCCAG2A还装有 5 个 34 针连接器。

50 针和 34 针连接器使用带状电缆连接到电路板。由于可能会有多根 34 针带状电缆连接到新板，因此在安装新板时了解它们的连接位置非常重要。要知道将它们连接在哪里，请用记号笔在带状电缆上标记它们在旧板上的连接位置或为它们制作标签。使用连接器 ID 确定连接它们的位置。

DS200TCCAG2A 模拟板是一种用于电子电路设计和测试的工具，它可以模拟电子电路的行为和性能。模拟板通常由一块电路板和一些电子元件组成，这些元件可以是电阻、电容、电感、二极管、晶体管等。

DS200TCCAG2A 模拟板的作用是帮助电子工程师设计和测试电子电路，例如验证电路的功能、测试电路的性能、优化电路的设计等。模拟板可以帮助电子工程师快速验证电路的设计是否正确，避免在实际制造过程中出现问题。

DS200TCCAG2A 模拟板的优点是成本低、使用方便、可以快速验证电路设计等。但是，模拟板的精度和可靠性通常不如实际制造的电路板，因此在实际应用中需要进行适当的修正和优化。

 模拟板 DS200TCCAG2A  提高电路设计的效率和可靠性

The GE I/O TC2000 analog board DS200TCCAG2A has an 80196 microprocessor and multiple PROM modules. It also contains an LED and 2 50-pin connectors. The LED can be seen from the side of the board. The ID of the 50-pin connector is JCC and JDD. The GE I/O TC2000 analog board DS200TCCAG2A also has five 34-pin connectors.

50-pin and 34-pin connectors are connected to the circuit board using ribbon cables. Since there may be multiple 34-pin ribbon cables connected to the new board, it is important to know where they are connected when installing the new board. To know where to connect them, use a marker on the ribbon cable to mark where they connect on the old board or make labels for them. Use the connector ID to determine where to connect them.

The DS200TCCAG2A analog board is a tool for the design and testing of electronic circuits, which can simulate the behavior and performance of electronic circuits. The analog board is usually composed of a circuit board and some electronic components, which can be resistors, capacitors, inductors, diodes, transistors, etc.

The role of the DS200TCCAG2A analog board is to help electronic engineers design and test electronic circuits, such as verifying the function of the circuit, testing the performance of the circuit, and optimizing the design of the circuit. Analog boards can help electronics engineers quickly verify that the circuit design is correct and avoid problems during actual manufacturing.

The advantages of DS200TCCAG2A analog board are low cost, easy to use, and fast verification of circuit design. However, the accuracy and reliability of the analog board is usually not as good as that of the actual manufactured circuit board, so proper correction and optimization are required in practical applications.
