显示卡 DS200KLDAG1A  提供逐行或隔行扫描信号

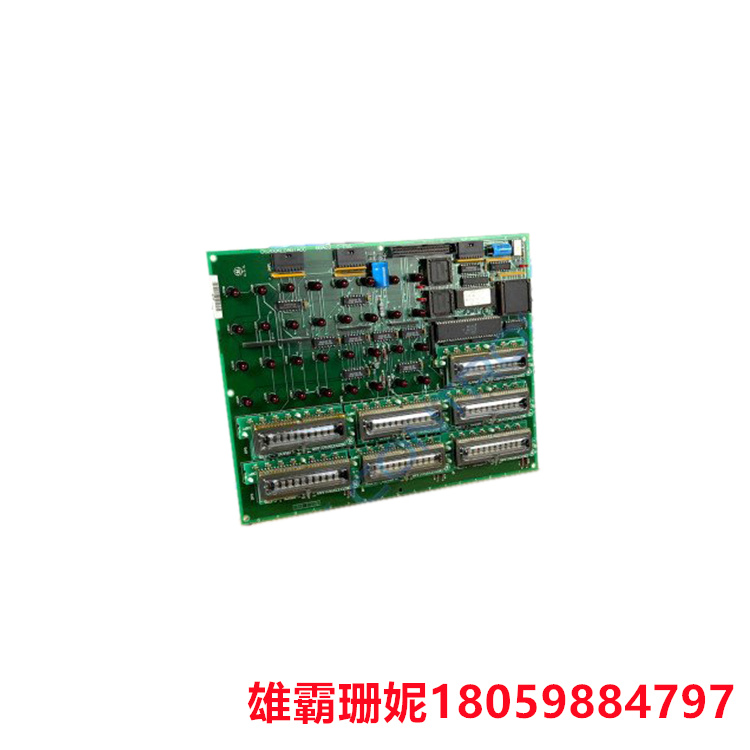

DS200KLDAG1A型号作为通用电气生产的 Mark V DS200 系列中的 Key LED 显示卡销售。这块矩形板标有 GE 标志以及 C-ESS 和 6BA03 等代码，标有对齐和钻孔安装。它有七块辅助板，通过黄铜销固定在其表面;每个辅助板包含一个 LED 显示屏，该显示屏带有一个 10 位显示器，内置 SISD（16 段显示器）、电阻器网络阵列和刺接连接器。这些板中的每一个都标记为DS200KLDAG1A，并且还标有代码 6BA03 和 C-ESS。这些板设计为左右互锁。

其他电路板组件包括 32 个红色 LED 指示灯，这些指示灯分成四行，每行 8 个。有四个连接器，包括一个垂直插针连接器和三个直角连接器。电容器由电解和陶瓷材料制成。电路板上有二极管、电阻器、跳线开关和晶体管。有多种电阻网络阵列和集成电路，包括振荡芯片、EEPROM 和三个 FPGA。最初由通用电气分销的技术支持产品将提供更多信息，包括安装和处理。

DS200KLDAG1A显示卡是个人计算机基础的组成部分之一，是连接显示器和个人计算机主板的重要组件。

DS200KLDAG1A显卡（Video card、Display card、Graphics card、Video adapter）将计算机系统需要的显示信息进行转换驱动显示器，并向显示器提供逐行或隔行扫描信号，控制显示器的正确显示，是"人机"的重要设备之一，其内置的并行计算能力现阶段也用于深度学习等运算。

显示卡 DS200KLDAG1A  提供逐行或隔行扫描信号

The DS200KLDAG1A model is marketed as a Key LED display card in the Mark V DS200 series produced by General Electric. This rectangular board is marked with the GE logo and codes such as C-ESS and 6BA03, marked with alignment and borehole installation. It has seven auxiliary plates fixed to its surface by brass pins; Each auxiliary board contains an LED display with a 10-bit display with built-in SISD (16-segment display), resistor network array, and splice connectors. Each of these boards is labeled DS200KLDAG1A and is also labeled with the codes 6BA03 and C-ESS. These plates are designed to interlock left and right.

Other board components include 32 red LED indicators, which are divided into four rows of eight each. There are four connectors, including a vertical pin connector and three right Angle connectors. Capacitors are made of electrolytic and ceramic materials. On the circuit board are diodes, resistors, jumper switches and transistors. There are a variety of resistance network arrays and integrated circuits, including oscillating chips, EEPROMs, and three FPGas. Technical support products initially distributed by GE will provide additional information, including installation and handling.

DS200KLDAG1A display card is one of the components of the personal computer foundation, is an important component connecting the display and the personal computer motherboard.

DS200KLDAG1A Video card (Video card, Display card, Graphics card, Video adapter) converts the display information required by the computer system to drive the display, and provides line-by-line or interline scanning signals to the display to control the correct display of the display. It is one of the important equipment of "man-machine", and its built-in parallel computing capability is also used for deep learning and other operations at this stage.
