继电器端子板 DS200DTBCG1A 具有 2 个接线端子

 DS200DTBCG1A 继电器端子板通常由电路板、继电器插座、连接线和端子等组成。电路板上布置了继电器插座的引脚和连接线路,以便将继电器的信号传递到其他设备或控制系统中。连接线用于将继电器的引脚与电路板上的端子连接起来。



联系电话:18059884797

产品详情

继电器端子板 DS200DTBCG1A  具有 2 个接线端子

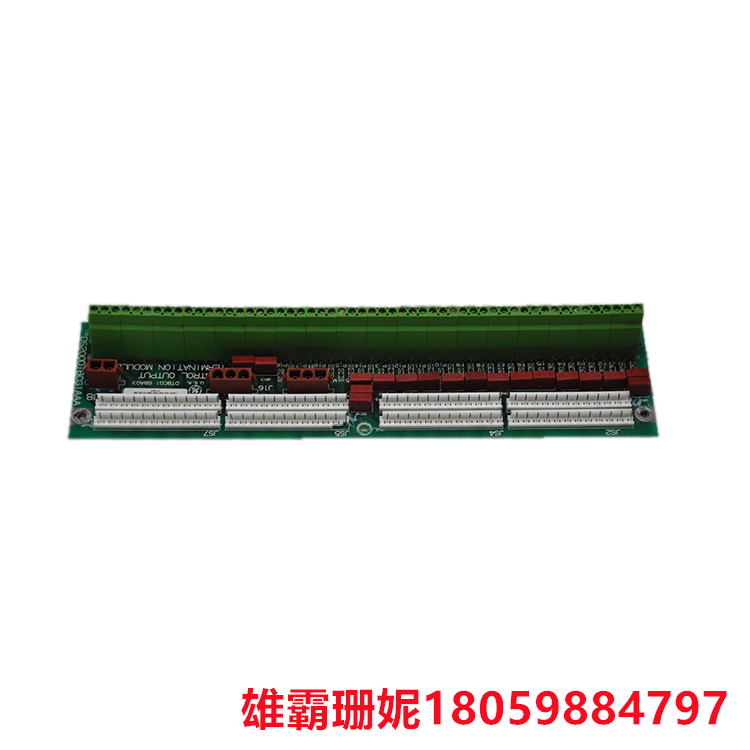

GE 连接器继电器端子板DS200DTBCGIA具有 2 个接线端子,每个接线端子可容纳 110 根信号线。它还包含 2 个 3 线卡口连接器和 1 个 2 线卡口连接器和 10 个跳线。


该板高 3 英寸,长 11.5 英寸。驱动器内部有空间用于安装电路板。由于该板可以连接 220 根信号线,因此将其安装在信号线可以正确布线的位置非常重要。由于存在干扰风险,信号线不能在电源线附近布线。电源线被认为是嘈杂的,这意味着它们辐射的信号噪声会干扰电路板接收信号的准确性。它们还会干扰电路板接收的信号。有时可以使用屏蔽线来阻挡干扰。但是,最好的解决方案是将电源线与信号线分开布置。如果必须将它们路由在一起,则最好限制它们捆绑在一起的运行长度。电源线承载的电流越大,电源线和信号线之间的距离就越远。


 DS200DTBCG1A 继电器端子板是一种用于连接和分配继电器信号的电路板。它通常包含一排或多排继电器插座,每个插座可以插入一个继电器。


 DS200DTBCG1A 继电器端子板的主要功能是提供一个方便的接口,使得继电器可以轻松地连接到其他设备或控制系统中。它可以减少布线的复杂性,并提供更好的可靠性和可维护性。


 DS200DTBCG1A 继电器端子板通常由电路板、继电器插座、连接线和端子等组成。电路板上布置了继电器插座的引脚和连接线路,以便将继电器的信号传递到其他设备或控制系统中。连接线用于将继电器的引脚与电路板上的端子连接起来。


 DS200DTBCG1A 继电器端子板广泛应用于工业自动化、电力控制、通信系统等领域。它们可以用于控制电机、灯光、电磁阀等设备的开关,以及实现逻辑控制和信号转换等功能。


总之, DS200DTBCG1A 继电器端子板是一种用于连接和分配继电器信号的电路板,它提供了一个方便的接口,使得继电器可以轻松地连接到其他设备或控制系统中。

继电器端子板 DS200DTBCG1A  具有 2 个接线端子



The GE Connector Relay terminal board DS200DTBCGIA has 2 terminals, each of which can accommodate 110 signal cables. It also contains 2 3-wire bayonet connectors and 1 2-wire bayonet connector and 10 jumpers.


The board is 3 inches high and 11.5 inches long. There is space inside the driver for mounting the circuit board. Since the board can be connected to 220 signal wires, it is important to install it in a location where the signal wires can be routed correctly. Because of the risk of interference, the signal line should not be routed near the power line. Power lines are considered noisy, which means that the signal noise they radiate can interfere with the accuracy of the signal received by the board. They can also interfere with the signals received by the board. Sometimes a shielded wire can be used to block interference. However, the best solution is to arrange the power and signal wires separately. If they must be routed together, it is best to limit the run length of their bundling together. The greater the current carried by the power cable, the greater the distance between the power cable and the signal cable.


The DS200DTBCG1A relay terminal board is a circuit board for connecting and distributing relay signals. It usually contains one or more rows of relay sockets, each of which can be plugged into one relay.


The main function of the DS200DTBCG1A relay terminal board is to provide a convenient interface so that the relay can be easily connected to other devices or control systems. It can reduce cabling complexity and provide better reliability and maintainability.


The DS200DTBCG1A relay terminal board is usually composed of a circuit board, relay socket, connecting wires and terminals. Pins and connection lines for relay sockets are arranged on the circuit board to transmit relay signals to other devices or control systems. The connecting wire is used to connect the pin of the relay to the terminal on the circuit board.


DS200DTBCG1A relay terminal board is widely used in industrial automation, power control, communication system and other fields. They can be used to control the switching of motors, lights, solenoid valves and other devices, as well as to achieve functions such as logic control and signal conversion.


In summary, the DS200DTBCG1A relay terminal board is a circuit board for connecting and distributing relay signals, which provides a convenient interface so that the relay can be easily connected to other devices or control systems.
