AC/DC转换器 DS200DACAG1A  提供冗余VDC电源

GE DS200DACAG1A模块是一种多功能模块，提供精确的控制和监测功能。它采用坚固的材料和先进的电路，以确保耐用性和长期运行。该模块适用于发电、石油和天然气等关键行业。

产品参数

-型号:DS200DACAG1A

—输入电压:24V DC

—输出电压:0~10v DC

—工作温度:-40°℃~85℃

—通信接口:RS485

-安装方式:DIN导轨

DS200DACAG1A是 GE（通用电气）制造的 Mark V、TC2000、DC2000 交流到直流转换器板，作为其涡轮机控制系统的一部分。

该DS200DACAG1A设计为GE EX2100励磁控制模块的组件。该模块为发电机（燃气/蒸汽/水力）提供励磁电流，以控制其交流端电压和无功伏安。EX2100 采用模块化设计，无论用户需要从化合物、电位或辅助源中提取数据，还是需要单工或冗余控制，都可以轻松创建适合用户的系统。使用 EX2100 可以实现所有选项。DS200DACAG1A板不再由 GE 制造，但可以通过 AX Control 作为翻新/翻新的单元或作为已清算的从未使用过的部件购买。

该DS200DACAG1A用作AC/DC转换器。它由 115 V 交流电源供电，然后由电路板的组件转换以产生 125 V 直流输出。该板及其相应的电池源还可以为EPDM电源板提供冗余VDC电源。如果需要冗余，可以将两个DACA板连接到一个EPDM。

AC/DC转换器 DS200DACAG1A  提供冗余VDC电源

The GE DS200DACAG1A module is a multifunctional module that provides precise control and monitoring functions. It uses robust materials and advanced circuitry to ensure durability and long-term operation. The module is suitable for key industries such as power generation, oil and gas.

Product parameter

- Model :DS200DACAG1A - Input voltage :24V DC - Output voltage :0 to 10v DC - Operating temperature :-40° C to 85 ° C - Communication port :RS485- Installation mode :DIN rail

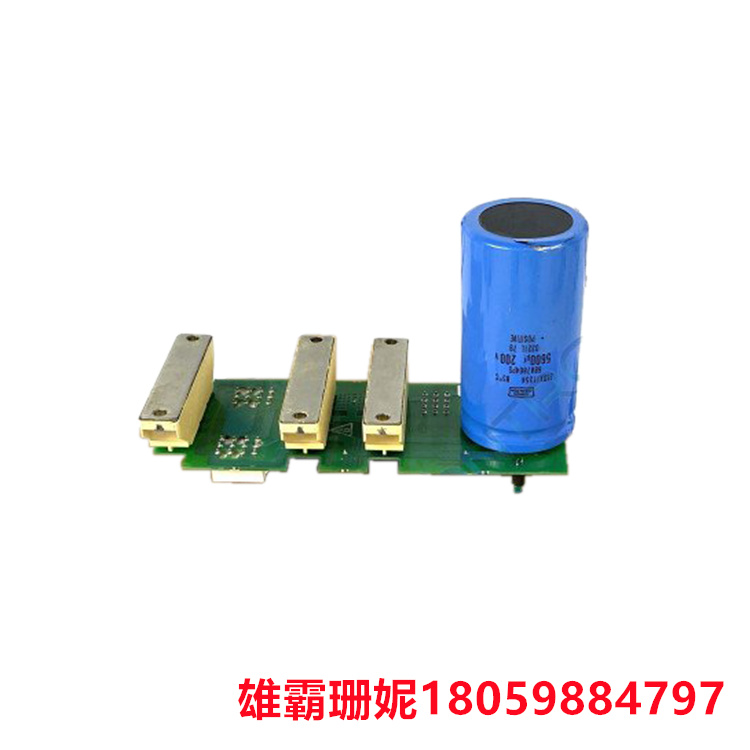

The DS200DACAG1A is a Mark V, TC2000, DC2000 AC to DC converter board manufactured by GE (General Electric) as part of its turbine control system.

The DS200DACAG1A is designed as a component of the GE EX2100 excitation control module. This module provides the excitation current to the generator (gas/steam/hydro) to control its AC terminal voltage and reactive volt-amperes. The modular design of the EX2100 makes it easy to create a system that suits the user, whether they need to extract data from compounds, potentials or secondary sources, or whether they need simplex or redundant control. All options are available with the EX2100. DS200DACAG1A boards are no longer manufactured by GE, but can be purchased through AX Control as refurbished/refurbished units or as liquidated never-used parts.

The DS200DACAG1A is used as an AC/DC converter. It is powered by a 115 V AC supply, which is then converted by the components of the board to produce a 125 V DC output. The board and its corresponding battery source can also provide redundant VDC power to the EPDM power board. If redundancy is required, two DACA boards can be connected to one EPDM.
