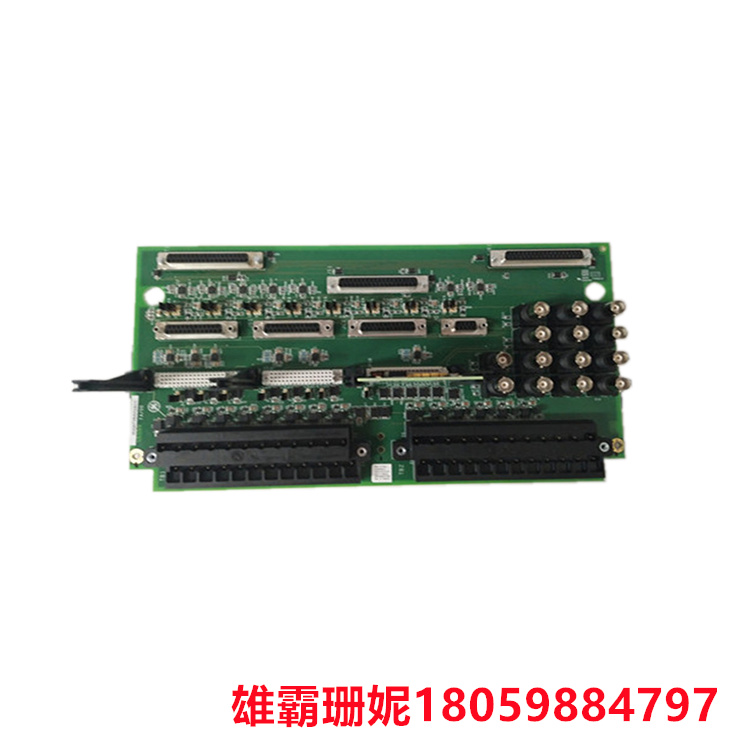

伺服控制器 BK698A201S12  实现高精度的传动系统定位

产品参数

型号:BK698A201S12

生产厂家:GE

适用环境温度:-10°℃~+50℃

工作电压:220V

频率:50Hz

额定功率:1000w

噪音:≤60dB

重量:5kg

BK698A201S12伺服控制器是用来控制伺服电机的一种控制器。

BK698A201S12伺服控制器（servodrives）又称为“伺服控制器”、“伺服放大器”，是伺服系统的一部分，主要应用于高精度的定位系统。一般是通过位置、速度和力矩三种方式对伺服电机进行控制，实现高精度的传动系统定位，是传动技术的高端产品。

伺服电机的工作原理可以简单概括为：输入控制信号→伺服控制器→伺服电机→输出运动。

具体来说，BK698A201S12伺服电机的工作过程可以分为以下几个步骤：

电机启动：BK698A201S12当控制器接收到启动指令后，驱动电路向电机施加电流，使电机开始旋转。

位置测量：编码器测量电机输出轴的位置和速度，并将这些信息反馈给控制器。

控制计算：控制器接收编码器的反馈信号和目标位置或速度信号，计算出当前的误差，并输出驱动信号，控制电机转速和位置。

调整控制：控制器不断调整输出信号，直到电机输出轴达到目标位置或速度，并保持稳定。

伺服控制器 BK698A201S12  实现高精度的传动系统定位

Product parameter

Model :BK698A201S12

Manufacturer :GE

Applicable ambient temperature :-10° C ~+50 ° C

Working voltage :220V

Frequency :50Hz

Rated power :1000w

Noise :≤60dB

Weight :5kg

BK698A201S12 servo controller is used to control a servo motor controller.

BK698A201S12 Servo controller (servodrives), also known as "servo controller", "servo amplifier", is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, which is a high-end product of transmission technology.

The working principle of the servo motor can be simply summarized as: input control signal → servo controller → servo motor → output motion.

Specifically, the working process of the BK698A201S12 servo motor can be divided into the following steps:

Motor start: BK698A201S12 When the controller receives the start instruction, the drive circuit applies current to the motor to make the motor start to rotate.

Position measurement: The encoder measures the position and speed of the motor output shaft and feeds this information back to the controller.

Control calculation: The controller receives the feedback signal from the encoder and the target position or speed signal, calculates the current error, and outputs the drive signal to control the motor speed and position.

Adjustment control: The controller constantly adjusts the output signal until the motor output shaft reaches the target position or speed and remains stable.
