馈线管理继电器 SR750-P5-G5-S5-HI-A20-R-T 可编程设定点菜单导航

产品描述

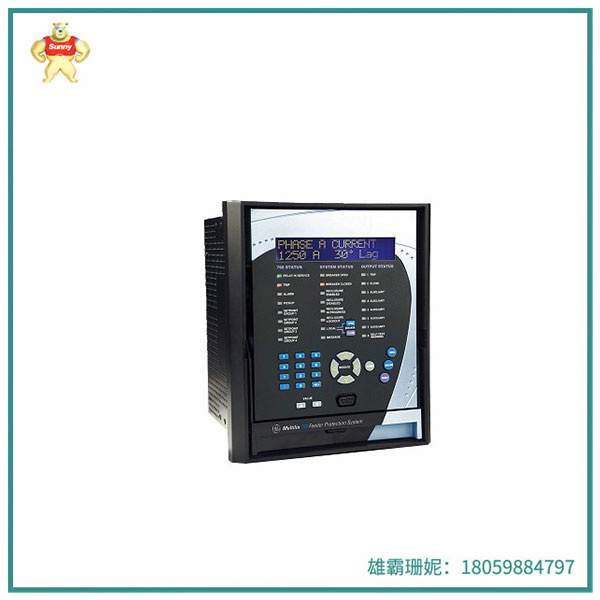

750-P5-G5-S5-HI-A20-R-T是GE Multilin公司的750系列馈线管理继电器。该管理继电器是通用电气 AX Control 库存中的几种继电器之一，可随时发货。如果您愿意，我们很乐意将较小的组件组合在一个集装箱中。

SR750-P5-G5-S5-HI-A20-R-T馈线管理继电器是一种用于控制和保护电力系统中的馈线（即输电线路）的电器设备。它通常用于监视和控制馈线的电流、电压、功率等参数，并在出现故障或异常情况时快速切断馈线，以保护电力系统的安全和稳定。

SR750-P5-G5-S5-HI-A20-R-T馈线管理继电器通常具有多种保护功能，例如过载保护、短路保护、接地故障保护、欠压保护等。它还可以与其他电力系统设备（例如断路器、熔断器等）配合使用，以提供更全面的保护。

SR750-P5-G5-S5-HI-A20-R-T馈线管理继电器通常安装在电力系统的馈线开关柜中，通过与其他电力系统设备的配合使用，实现对馈线的监测、控制和保护。它是电力系统中不可或缺的重要设备之一。

750-P5-G5-S5-HI-A20-R-T 提供可编程设定点菜单导航。键盘可用于浏览现场菜单。这样可以直接访问计量、状态、维护、跳闸计数器、电弧电流和其他设置。必须注意的是，设置在输入后会立即使用，因此在将设置输入到服务中继时应谨慎使用。但是，该装置提供硬件和密码安全功能，以锁定未经授权的更改。

750-P5-G5-S5-HI-A20-R-T 可用于定义保护元件、收集系统数据、定义输出触点通电、定义断路器闭合和定义断路器监控。它还可以执行监控功能，如延时、断路器定时、报警和跳闸值以及最小值和最大值。

750-P5-G5-S5-HI-A20-R-T 是一款具有 5 A 相电流输入的 750 继电器。该装置具有 5 A 零序电流输入以及 5 A 敏感接地电流输入。该装置的额定控制功率为 88 至 300 VDC 或 70 至 265 VAC @ 48 至 62 Hz。 此外，该装置具有 8 个 4-20 mA 模拟输出。

馈线管理继电器 SR750-P5-G5-S5-HI-A20-R-T 可编程设定点菜单导航

Product description

The 750-P5-G5-S5-HI-A20-R-T is a 750 series feeder management relay from GE Multilin. The management relay is one of several in GE's AX Control inventory and is ready to ship. If you prefer, we are happy to combine smaller components in one container.

The SR750-P5-G5-S5-HI-A20-R-T feeder management relay is an electrical device used to control and protect feeders (i.e. transmission lines) in a power system. It is usually used to monitor and control the current, voltage, power and other parameters of the feeder, and quickly cut off the feeder when there is a fault or abnormal situation to protect the safety and stability of the power system.

SR750-P5-G5-S5-HI-A20-R-T feeder management relays usually have a variety of protection functions, such as overload protection, short circuit protection, ground fault protection, undervoltage protection, etc. It can also be used in conjunction with other power system devices (such as circuit breakers, fuses, etc.) to provide more comprehensive protection.

SR750-P5-G5-S5-HI-A20-R-T feeder management relay is usually installed in the feeder switchgear of the power system, and can be used in conjunction with other power system equipment to monitor, control and protect the feeder. It is one of the indispensable and important equipment in the power system.

750-P5-G5-S5-HI-A20-R-T provides programmable set point menu navigation. The keyboard can be used to browse the on-site menu. This provides direct access to metering, status, maintenance, trip counters, arc current, and other Settings. It is important to note that the Settings are used immediately after input, so you should use caution when entering the Settings into the service relay. However, the device provides hardware and password security features to lock out unauthorized changes.

The 750-P5-G5-S5-HI-A20-R-T can be used to define protection elements, collect system data, define output contact power-on, define circuit breaker closure, and define circuit breaker monitoring. It can also perform monitoring functions such as delay, circuit breaker timing, alarm and trip values, and minimum and maximum values.

The 750-P5-G5-S5-HI-A20-R-T is A 750 relay with a 5 A phase current input. The device has 5 A zero sequence current input and 5 A sensitive ground current input. The unit is rated for control power from 88 to 300 VDC or 70 to 265 VAC @ 48 to 62 Hz. In addition, the unit has eight 4-20 mA analog outputs.
