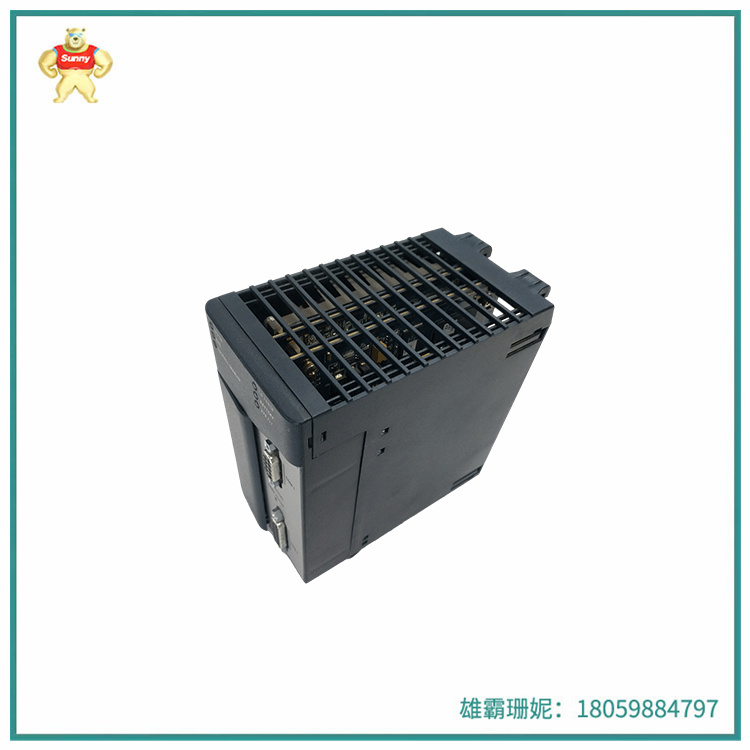

中央处理器 GE-IC695CPU315-BB 提供了两个集成串行端口

GE IC695CPU315-BBModule是一款功能强大、可靠性高的CPU模块，专为工业控制系统而设计。它是GE RX3i PACSystem的一部分，具有先进的特性和功能。

产品描述:

GEIC695CPU315-BBModule是一款中央处理器，为工业自动化应用提供高速处理和数据处理。它配备了坚固的硬件，可以承受恶劣的环境。

产品参数

—型号:IC695CPU315-BBModule

-系列:RX3i

-制造商:GE

GE Fanuc IC695CPU315 CPU 是具有 20 MB 用户内存的 RX3i PacSystems 1.0 GHz Celeron M CPU。可随 CPU 一起订购的配件包括IC695ACC302智能辅助电池、IC693ACC302普通辅助电池和IC690RBT001充电电池。CPU 模块只能使用 GEIP 认可的辅助电池组。除了电池备份的 RAM 外，该模块还包括 20 MB 的 NVRAM。IC695CPU315 CPU 为离散 I/O 保留了 32 KB 的内存，为模拟 I/O 保留了 32 KB 的内存，最多支持 512 个程序块，每个程序块的大小为 128 KB。CPU 模块支持高速串行和 RX3i PCU 总线。IC695CPU315 CPU 符合 PCI 标准的 2.2 版。

IC695CPU315 CPU 模块上提供了两个集成串行端口。一个端口支持 RS-232 通信，另一个端口支持 RS-485 通信。支持三种串行协议，包括串行 I/O、Modbus RTU 从站和 SNP 协议。模块在 5 伏直流电下的标称电流消耗为 1.2 安培，在 3.3 伏直流电下为 1 安培。工作温度范围为 32 至 140 华氏度。内部时钟的额定峰值漂移为每天 2 秒。最大内部定时精度为 0.01%。IC695CPU315 CPU 支持自动定位的符号变量，这些变量允许使用任意数量的用户内存。IC695CPU315 CPU 支持大多数 GE 系列 90-30 模块和扩展机架。CPU 固件可现场升级。IC695CPU315 CPU 符合欧盟 RoHS 指令 2002/95/EC 以及相关豁免。IC695CPU315 CPU 的应用包括对应用进程和机器的实时控制。

中央处理器 GE-IC695CPU315-BB 提供了两个集成串行端口

GE IC695CPU315-BBModule is a powerful and reliable CPU module designed for industrial control systems. It is part of the GE RX3i PACSystem with advanced features and functions.

Product Description:

The GEIC695CPU315-BBModule is a central processing unit that provides high-speed processing and data processing for industrial automation applications. It is equipped with rugged hardware that can withstand harsh environments.

Product parameter

- Model :IC695CPU315-BBModule

- Series :RX3i

- Manufacturer :GE

The GE Fanuc IC695CPU315 CPU is an RX3i PacSystems 1.0 GHz Celeron M CPU with 20 MB of user memory. Accessories that can be ordered with the CPU include the IC695ACC302 intelligent auxiliary battery, IC693ACC302 ordinary auxiliary battery, and IC690RBT001 rechargeable battery. Only GEIP-approved auxiliary battery packs can be used for CPU modules. In addition to battery-backed RAM, the module also includes 20 MB of NVRAM. The IC695CPU315 CPU reserves 32 KB of memory for discrete I/O and 32 KB for analog I/O, and supports up to 512 blocks of 128 KB each. The CPU module supports high-speed serial and RX3i PCU bus. The IC695CPU315 CPU complies with version 2.2 of the PCI standard.

Two integrated serial ports are provided on the IC695CPU315 CPU module. One port supports RS-232 communication and the other supports RS-485 communication. Three serial protocols are supported, including serial I/O, Modbus RTU slave, and SNP. The nominal current consumption of the module is 1.2 amps at 5 volts DC and 1 amp at 3.3 volts DC. Operating temperature range is 32 to 140 degrees Fahrenheit. The internal clock has a rated peak shift of 2 seconds per day. The maximum internal timing accuracy is 0.01%. The IC695CPU315 CPU supports automatically positioned symbolic variables that allow any amount of user memory to be used. The IC695CPU315 CPU supports most GE series 90-30 modules and expansion racks. CPU firmware can be upgraded onsite. The IC695CPU315 CPU complies with the EU RoHS Directive 2002/95/EC and related exemptions. The application of IC695CPU315 CPU includes real-time control of application processes and machines.
