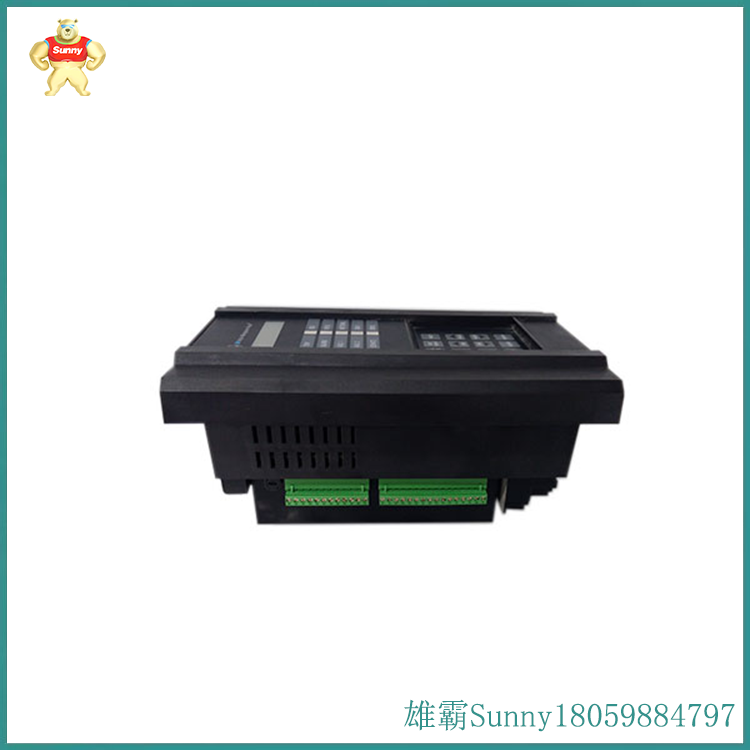

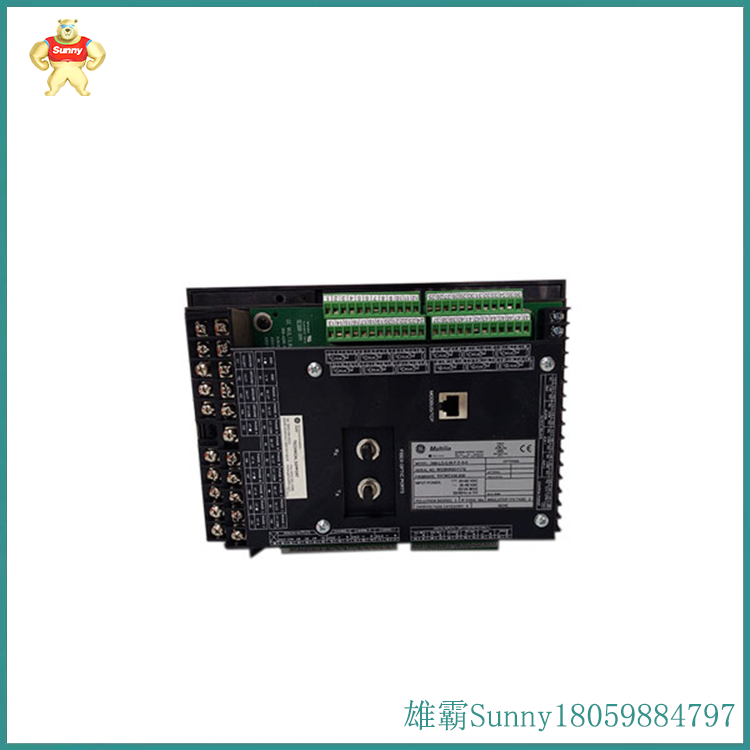

369-LO-0-M-F-E-0-0  369 电机管理继电器

369-LO-0-M-F-E-0 的控制功率额定为 20-60 VDC （20-48 VAC）。该装置具有可选的计量包、可选的光纤端口和可选的 Modbus/TCP 协议接口。此可选计量包提供 VT 输入，以允许电压和功率元件。这也可用于计量兆瓦时、赫兹、千伏安、千瓦、千瓦、V 和 PF。

本机还具有一个 RS232 前面板端口和三个 RS485 后面板端口。所有端口都有Modbus RTU协议，标准。前键盘（位于前面板上）可用于输入设定值。这些也可以通过计算机通过 EnerVista 369 软件的连接输入。

369-LO-0-M-F-E-0 提供许多其他选项，包括增强型电机学习数据、电机启动数据记录、增强型事件记录、用户定义的轮询输入数据、通信丢失跳闸和欠压自动重启。

请使用通用电气的原始文档来指导您完成 369-LO-0-M-F-E-0 的安装和维护程序。这些文档（手册和用户指南）将随您购买 OEM 一起提供。如果您不再拥有这些文档，AX Control 可能会帮助更换。

The control power rating of 369-LO-0-M-F-E-0 is 20-60 VDC (20-48 VAC). The device has optional metering packages, optional fiber optic ports, and optional Modbus/TCP protocol interfaces. This optional metering package provides VT input to allow for voltage and power components. This can also be used to measure megawatt hours, hertz, kilovolt amperes, kilowatts, kilowatts, V, and PF.

This machine also has one RS232 front panel port and three RS485 rear panel ports. All ports have Modbus RTU protocol, standard. The front keyboard (located on the front panel) can be used to input set values. These can also be input through the connection of EnerVista 369 software on a computer.

369-LO-0-M-F-E-0 offers many other options, including enhanced motor learning data, motor start data recording, enhanced event recording, user-defined polling input data, communication loss tripping, and undervoltage automatic restart.

Please use General Electric's original documentation to guide you through the installation and maintenance procedures for 369-LO-0-M-F-E-0. These documents (manuals and user guides) will be provided with your OEM purchase. If you no longer have these documents, AX Control may assist with replacement.
