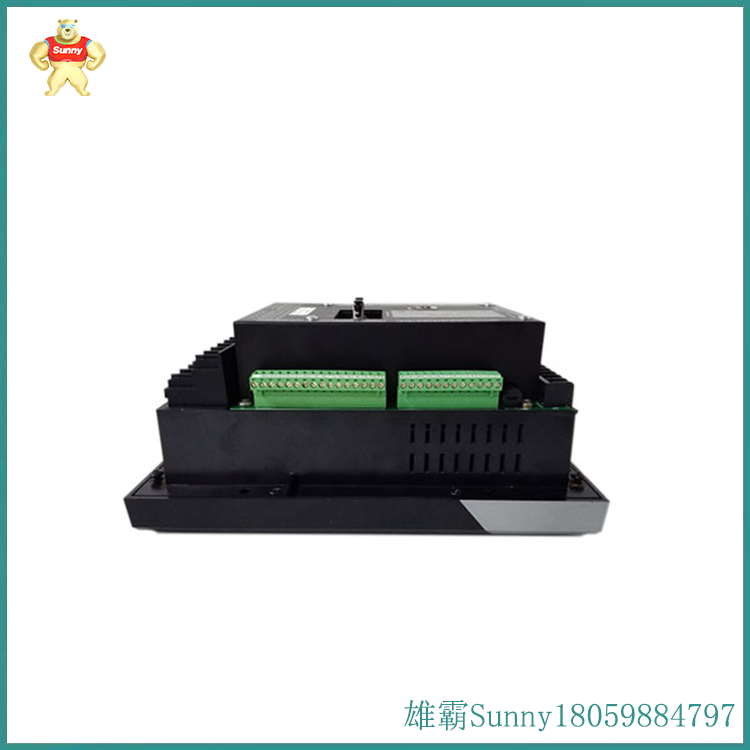

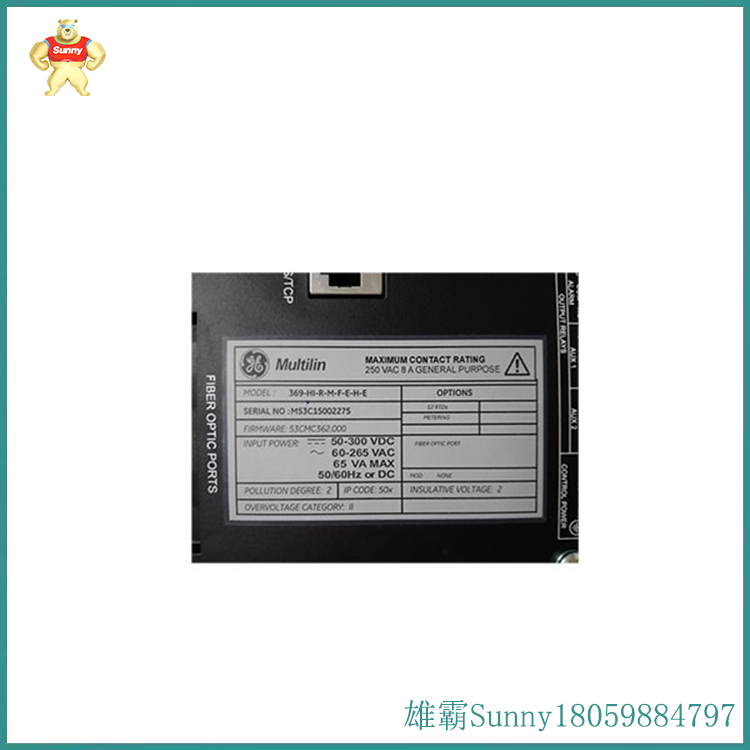

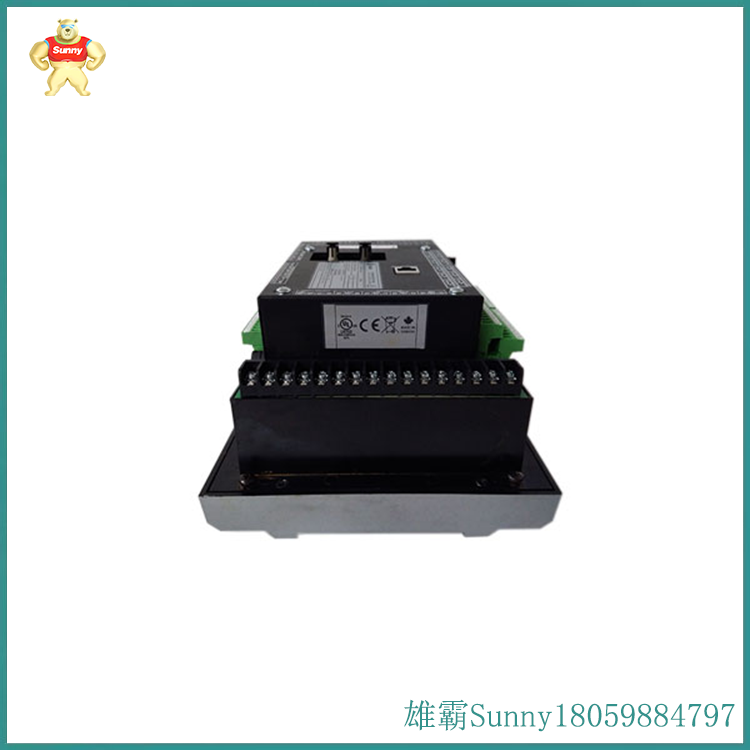

369-HI-R-M-F-E-H-E 电机管理继电器

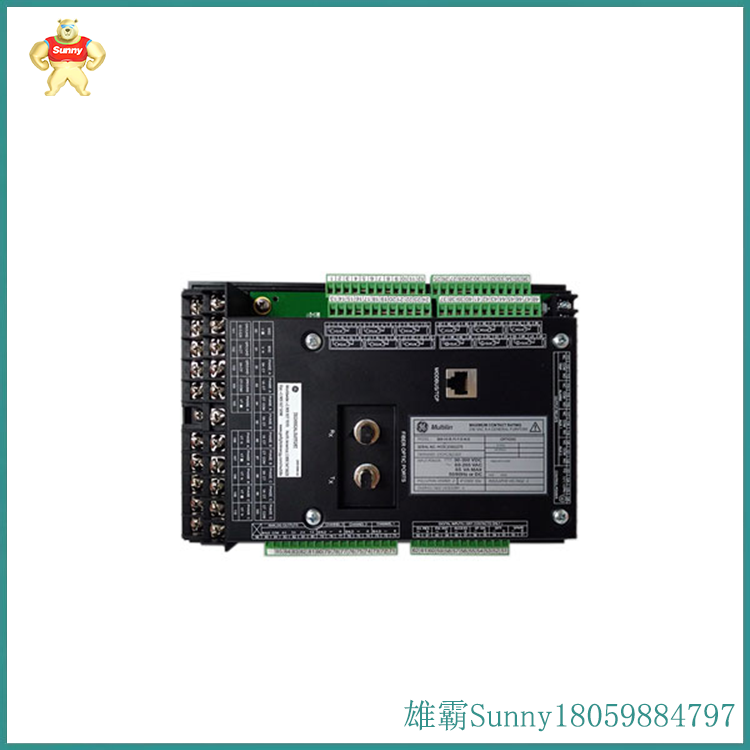

369-HI-R-M-F-0-H-E提供了多种选择。这包括 12 个 RTD 输入。RTD 单元位于设备背面的左侧。该装置还具有可选的计量包。计量包增加了对 VT 输入的访问，允许电压和功率元件。使用此选项可以计量赫兹、千伏安、千瓦、千瓦、伏特和兆瓦时。

369-LO-0-M-F-E-0还安装了额外的光纤端口。光纤端口的波特率为1200至19200，并使用Modbus RTU协议。这用于通道 3。当用于通道 3 时，通道 485 RS485 连接被禁用。但是，本机仍将具有其他可用的RS232端口。此外，该装置还具有可用于连接PC的RS<>端口。这通常用于与GE的EnerVista软件进行通信。

有关此版本的 369 继电器的其他信息，或有关 369 安装、处理或维护的一般信息，可通过 GE 手册和用户指南找到。

The 369-HI-R-M-F-0-H-E offers multiple options. This includes 12 RTD inputs. The RTD unit is located on the left side of the back of the device. The device also has an optional metering package. The metering package adds access to VT inputs, allowing for voltage and power components. Use this option to measure Hertz, Kilowatt Ampere, Kilowatt, Kilowatt, Volt, and Megawatt hours.

The 369-LO-0-M-F-E-0 also has additional fiber optic ports installed. The baud rate of the fiber optic port is 1200 to 19200 and uses the Modbus RTU protocol. This is for channel 3. When used for channel 3, channel 485 RS485 connection is disabled. However, this machine will still have other available RS232 ports. In addition, the device also has an RS<>port that can be used to connect to a PC. This is typically used for communication with GE's EnerVista software.

Additional information about this version of the 369 relay, or general information about 369 installation, handling, or maintenance, can be found through the GE manual and user guide.
