单板计算机 IS215UCCAM03A 前面板上有几个 LED

GEIS215UCCAMO3A plc模块是一款高性能可编程逻辑控制器模块，专为工业自动化应用而设计。它提供了先进的功能和可靠的性能，以满足复杂的控制系统的需求。

产品参数

-型号:IS215UCCAMO3A—输入电压:24V DC—输入次数:16次—输出数量:16个

通信协议:Modbus、Profibus

工作温度:-40℃~70℃

尺寸:120mm x 80mm x 40mm

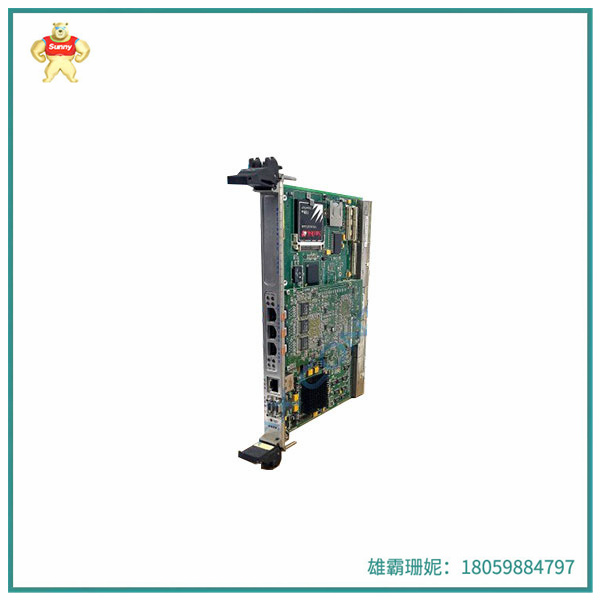

该板（IS215UCCAM03A板）是UCCx控制器之一。UCCx控制器基于称为CompactPCI或CPCI的单板计算机。该板是通用电气生产的 Mark VIe 系统的一部分。该型号本质上是一个IS215UCCAH3板，结合了 IS200EPMC、128 MB 闪存和 128 MB DRAM。该板在板的前面板上有几个 LED。其中一些 LED 是;UDH 以太网状态、状态、DC、诊断、IONet 以太网和 ON LED。UDH 以太网 LED 有三种状态，有一个活动 LED 会闪烁，还有一个速度 LED，100 BaseTX 为绿色，10 Base T 为黄色。

IS215UCCAM03A板有项目规格，差异很大。其中一些项目如内存、COM 端口、编程和 EPMC 以太网接口。EPMC 以太网接口由三个端口、一个 RJ-45 连接器以及一对双绞线 10BaseT 和 100BaseTX 连接器组成。 在 EPMC 以太网接口中，有一些协议用于在 I/O 包和控制器之间进行通信;这些协议是 TCP/IP 协议。

IS215UCCAM03A板将至少有一个控制器和最多四个 CPCI 机架插槽，最多有两个电源。请注意，如果移除第一个插槽控制器，则其余控制器将停止运行。如果任何主板需要拆卸，则必须从机架上卸下电源。有几种方法可以断开机架的电源，其中一种方法是使用远程断开开关。

单板计算机 IS215UCCAM03A 前面板上有几个 LED

The GEIS215UCCAMO3A plc module is a high-performance programmable logic controller module designed specifically for industrial automation applications. It provides advanced features and reliable performance to meet the needs of complex control systems.

Product parameter

- Model :IS215UCCAMO3A - Input voltage :24V DC - Input times :16 - Output number :16

Communication protocols :Modbus, Profibus

Operating temperature :-40℃~70℃

Size :120mm x 80mm x 40mm

This board (IS215UCCAM03A board) is one of the UCCx controllers. UCCx controllers are based on single-board computers called CompactPCI or CPCI. The board is part of the Mark VIe system produced by General Electric. The model is essentially an IS215UCCAH3 board that combines the IS200EPMC, 128 MB flash memory, and 128 MB DRAM. The board has several leds on the front panel of the board. Some of these leds are; UDH Ethernet Status, Status, DC, Diagnostics, IONet Ethernet, and ON LED. The UDH Ethernet LED has three states, there is an active LED that will flash, and there is a speed LED, 100 BaseTX is green, 10 BaseT is yellow.

IS215UCCAM03A board has project specifications, which vary greatly. Some of these items are memory, COM ports, programming, and EPMC Ethernet interfaces. The EPMC Ethernet interface consists of three ports, an RJ-45 connector, and a pair of twisted pair 10BaseT and 100BaseTX connectors. In the EPMC Ethernet interface, there are protocols for communicating between I/O packets and the controller; These protocols are TCP/IP protocols.

The IS215UCCAM03A board will have at least one controller and up to four CPCI rack slots, with up to two power supplies. Note that if you remove the first slot controller, the remaining controllers will stop working. If any motherboards need to be removed, the power supply must be removed from the rack. There are several ways to disconnect the power to the rack, one of which is to use a remote disconnect switch.
