振动监测卡 IS200VVIBH1C 用于测量差胀、转子偏心率

IS200VVIBH1C是GE为Mark VI系统制造的电路板组件。Mark VI 是 GE 在 60 年代、70 年代、80 年代和 90 年代以 Speedtronic 名称发布的蒸汽和燃气轮机管理系统之一。作为该系列中最后发布的系统之一，Mark VI也是最先进的系统之一。它采用TMR（三重冗余模块化）架构构建，并具有在Windows平台上运行的基于PC的HMI（人机界面）。这款 HMI PC 包括专为涡轮机管理而设计的软件，包括完全可编程的维护工具。

该IS200VVIBH1C用作振动监测卡，可处理来自连接到 DVIB 或 TVIB 端子板的多达 14 个探头的振动探头信号。这些用于测量差胀、转子偏心率、振动或转子轴向位置。有关探头功能和设置的更多信息，请参见 Mark VI 涡轮机控制系统指南 （GEH-6421）。

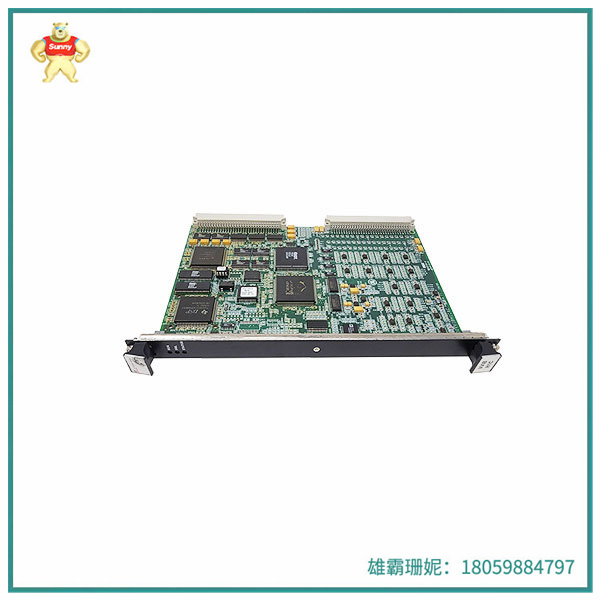

该IS200VVIBH1C有一个单插槽面板，连接到组件密集的电路板上。面板只有三个组件，它们都位于覆盖物的最顶部;这些是标记为运行/失败/状态的 LED 指示灯。

振动监测卡是一种用于监测设备振动状态的设备，通常用于工业领域。它可以监测设备的振动速度、加速度、位移等参数，并将监测结果传输到上位机或控制系统中进行分析和处理。

IS200VVIBH1C振动监测卡通常由传感器、信号调理电路、数据采集和处理单元等组成。传感器用于感知设备的振动信号，信号调理电路用于对传感器输出的信号进行放大、滤波等处理，数据采集和处理单元用于采集和处理振动信号，并将处理结果传输到上位机或控制系统中。

IS200VVIBH1C振动监测卡广泛应用于各种工业设备中，如电机、泵、风机、压缩机、齿轮箱等。它可以帮助工程师及时发现设备的异常振动情况，预测设备的故障，从而提高设备的可靠性和安全性。

振动监测卡 IS200VVIBH1C 用于测量差胀、转子偏心率

The IS200VVIBH1C is a circuit board component manufactured by GE for the Mark VI system. The Mark VI was one of the steam and gas turbine management systems released by GE under the name Speedtronic in the 60s, 70s, 80s and 90s. As one of the last systems to be released in the series, Mark VI is also one of the most advanced. It is built with a TMR (Triple Redundant Modularity) architecture and has a PC-based HMI (Human Machine interface) that runs on the Windows platform. This HMI PC includes software specifically designed for turbine management, including fully programmable maintenance tools.

The IS200VVIBH1C is used as a vibration monitoring card to process vibration probe signals from up to 14 probes connected to the DVIB or TVIB terminal board. These are used to measure differential expansion, rotor eccentricity, vibration, or rotor axial position. For more information on probe functions and Settings, see the Mark VI Turbine Control System Guide (GEH-6421).

The IS200VVIBH1C has a single-slot panel that connects to a component-dense circuit board. The panel has only three components, all of which are located at the very top of the cover; These are LED indicators labeled Run/Fail/Status.

Vibration monitoring card is a device used to monitor the vibration status of equipment, usually used in the industrial field. It can monitor the vibration speed, acceleration, displacement and other parameters of the equipment, and transmit the monitoring results to the host computer or the control system for analysis and processing.

The IS200VVIBH1C vibration monitoring card is usually composed of a sensor, a signal conditioning circuit, a data acquisition and processing unit. The sensor is used to sense the vibration signal of the device, the signal conditioning circuit is used to amplify and filter the signal output of the sensor, and the data acquisition and processing unit is used to collect and process the vibration signal, and the processing results are transmitted to the upper computer or the control system.

IS200VVIBH1C vibration monitoring card is widely used in various industrial equipment, such as motors, pumps, fans, compressors, gear boxes and so on. It can help engineers find abnormal vibration of equipment in time and predict equipment failures, thereby improving the reliability and safety of equipment.
