燃气轮机 IS200JPDHG1A  为I/O包提供更多的电源

字母数字目录号：IS200JPDHG1AAA

母插头连接器数量：29

功能缩略语/缩略语：JPDH公司

危险场所能力：是的，根据 GEH-6725R 使用指南

型号类型：高密度配电

安装 ：DIN导轨卡架

额定电气值：24/28 伏直流电

IS200JPDHG1AAA型号作为高密度配电卡销售，通常用于 Mark VI 系列。当该装置运行时，它可以向多达三个以太网交换机以及 24 个 Mark VIe I/O 包发出 28 伏的直流电。 如果需要，可以购买更多的JPDH包，然后连接在一起，为I/O包提供更多的电源。请注意，当将更多JPDH卡连接在一起时，它们必须以菊花链方式连接。

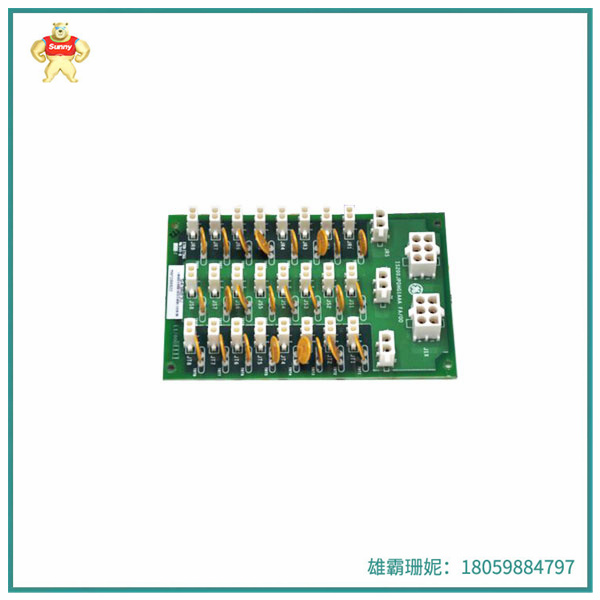

该板的物理组件是 29 个母针插头连接器。其中 29 个是 6 针连接器，其余 27 个连接器是 2 针连接器;其中 24 个连接器分成三排，每排 8 个。这些行中的连接器标记为 JT1 到 JT8、JR1 到 JR8 以及 JS1 到 JS8。这些行是将主电源提供给独立 I/O 包的馈电。I/O组电路将包括一个温度系数保险丝装置，该保险丝欺骗将用于分支电路保护以及提供正温度保险丝。

IS200JPDHG1AAA板可用于许多危险场所。可以使用此板的主要位置是 ATEX 2 区 IIC 组、I 类 2 区 A 至 D 组和 I 类 2 区 IIC 组。该板也可用于非危险场所，ULE207685用于非危险场所的认证代码。

IS200JPDHG1AAA燃气轮机的工作原理是以空气为介质，靠高温燃气推动涡轮机械连续做功的大功率、高性能动力机械。

IS200JPDHG1AAA燃气轮机的工作原理是压气机连续地从大气中吸入空气并将其压缩，压缩后的空气进入燃烧室，与喷入的燃料混合后燃烧，成为高温燃气，随即流入燃气涡轮中膨胀做功，推动涡轮叶轮带着压气机叶轮一起旋转，加热后的高温燃气的做功能力显著提高，因而燃气涡轮在带动压气机的同时，尚有余功作为燃气轮机的输出机械功。

燃气轮机 IS200JPDHG1A  为I/O包提供更多的电源

Alphanumeric directory number: IS200JPDHG1AAA

Number of female connectors: 29

Functional acronym/acronym: JPDH Corporation

Hazardous Place Capability: Yes, according to the GEH-6725R User Guide

Model Type: High-density power distribution

Installation: DIN rail bracket

Rated electrical value: 24/28 VDC

The IS200JPDHG1AAA model is marketed as a high density power distribution card and is commonly used in the Mark VI series. When the unit is operating, it can send 28 volts of direct current to up to three Ethernet switches as well as 24 Mark VIe I/O packets. If needed, you can buy more JPDH packages and then connect them together to provide more power to the I/O packages. Note that when connecting more JPDH cards together, they must be Daisy chained.

The physical components of the board are 29 female pin plug connectors. 29 of them are 6-pin connectors, and the remaining 27 connectors are 2-pin connectors; The 24 connectors are divided into three rows of eight connectors each. The connectors in these rows are labeled JT1 to JT8, JR1 to JR8, and JS1 to JS8. These lines are the feeds that provide the main power to individual I/O packets. The I/O group circuit will include a temperature coefficient fuse device, the fuse deception will be used for branch circuit protection as well as to provide a positive temperature fuse.

The IS200JPDHG1AAA board can be used in many dangerous places. The main locations where this board can be used are ATEX Zone 2 IIC Group, Class I Zone 2 A to D Group, and Class I Zone 2 IIC Group. The board can also be used for non-hazardous sites, and ULE207685 is used as a certification code for non-hazardous sites.

The working principle of IS200JPDHG1AAA gas turbine is a high-power, high-performance power machinery that relies on air as the medium and high temperature gas to promote the turbine machinery to do continuous work.

The working principle of IS200JPDHG1AAA gas turbine is that the compressor continuously inhales air from the atmosphere and compresses it. The compressed air enters the combustion chamber, mixes with the injected fuel and burns, becomes high-temperature gas, and then flows into the gas turbine to expand and do work, pushing the turbine impeller to rotate with the compressor impeller. After heating, the work capacity of high-temperature gas is significantly improved, so the gas turbine still has residual work as the output mechanical work of the gas turbine while driving the compressor.

The working principle of the gas turbine is a high-power, high-performance power machine that relies on high temperature gas to drive the turbomachinery to do continuous work.
