VMIVME-M-485 链路模块  完全能够支持所有七个可用的中断级别

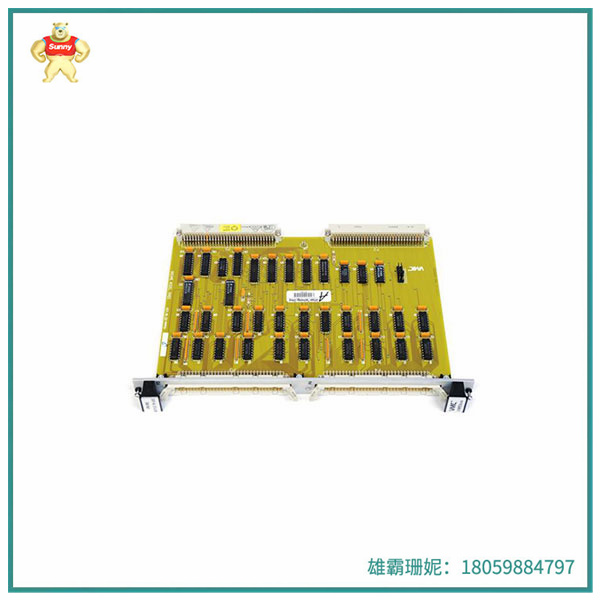

VMIVME REPEAT S 485 GE模块VMIVME-REPEAT-S-485-GE是长线路中继器链路模块。

该模块具有单宽VME总线连接端口、用于该装置的长线路中继器的主中继器模块，以及一组DIN型输入和输出连接器。VMIVME-M-485模块被设计为VMIC长线路中继器链路子系列产品中的两个单元之一。这些模型由两块板组成:一块是VMIVME板，另一块是数据转换板。

VMIVME-REPEAT-S-485的特点是:

完全能够支持所有七个可用的中断级别。

在连接5英尺电缆的情况下，传播延迟约为400纳秒。对于连接的较长电缆，每英尺会额外增加4纳秒。运行时的环境温度范围在0至55摄氏度之间，储存过程中断电时在-20至85摄氏度之间。

产品描述

VMIVME-M-485型

该模块是VMIC设备系列的一部分，最初由通用电气的工业自动化生产部门设计、制造和批量生产。然而，后来该系列被Abaco Systems收购并生产。

此型号列出了VMINME-M-485，一种重复L-485长线中继器链路模块。该装置具有一系列独特的功能，例如单个宽VME总线连接端口、用于该装置长线路中继器的主中继器模块，以及—组 DIN型输入和输出连接器。

VMIME-M-485模块设计为VMIC长线路中继器镞路子系列产品中的两个单元之一。这些模型由两块板组成:一组是VMIVME-Repeat-S-485型号，另一组是这块板。这些板卡串联在一起，因为它们与主VMEbus机箱相关联，因此被称为VMEbus机箱。

VMIVME-M-485单元还设计用于容纳双Eurocard 外形模块，并能够支持16位和24位寻址，以及8位和16位数据传输。

它完全能够支持所有七个可用的中断级别。连接了5英尺长的电缆，传播延迟约为400纳秒。对于连接的较长电缆，每英尺有额外的4纳秒。该装置在运行时的环境温度范围在0到55摄氏度之间，在存储中断电时在-20到85摄氏度之间。

VMIVME-M-485 链路模块  完全能够支持所有七个可用的中断级别

VMIVME REPEAT S 485 GE module VMIVME-REPEAT-S-485-GE is a long line repeater link module.

The module has a single wide VME bus connection port, a main repeater module for the device's long line repeater, and a set of DIN type input and output connectors. The VMIVME-M-485 module is designed as one of two units in the VMIC Long Line Repeater Link subfamily. These models consist of two boards: one is a VMIVME board and the other is a data conversion board.

VMIVME-REPEAT-S-485 features:

Fully supports all seven available interrupt levels.

In the case of a 5-foot cable connection, the propagation delay is about 400 nanoseconds. For longer cables connected, an additional 4 nanoseconds per foot is added. The ambient temperature range is between 0 and 55 degrees Celsius during operation, and between -20 and 85 degrees Celsius when the storage process is interrupted.

Product description

VMIVME-M-485

The module is part of a family of VMIC devices originally designed, manufactured and mass-produced by GE's Industrial Automation production division. However, the series was later acquired and produced by Abaco Systems.

This model lists the VMINME-M-485, a repetitive L-485 long line repeater link module. The unit has a range of unique features, such as a single wide VME bus connection port, a master repeater module for the unit's long line repeater, and a set of DIN type input and output connectors.

The VMIME-M-485 module is designed as one of the two units of the VMIC long line repeater arrowhead sub-series. These models consist of two plates: one for the VMIVME-Repeat-S-485 model and the other for this plate. These boards are connected in series, and because they are associated with the main VMEbus chassis, they are called VMEbus chassis.

The VMIVME-M-485 unit is also designed to accommodate dual Eurocard form factor modules and is capable of supporting 16-bit and 24-bit addressing, as well as 8-bit and 16-bit data transmission.

It fully supports all seven available interrupt levels. A 5-foot-long cable was connected, and the propagation delay was about 400 nanoseconds. For longer cables connected, there is an additional 4 nanoseconds per foot. The ambient temperature range of the device is between 0 and 55 degrees Celsius when operating, and between -20 and 85 degrees Celsius when storing interrupted electricity.
