IS200TDBTH6ACD 控制器 控制全球各行各业的涡轮机系统

产品描述

品牌：GE

型号： IS200TDBTH6ACD

产品名称： 燃机控制系统模块

产品净宽：53毫米

产品净高：125毫米

产品净深/长度：260毫米

l5.20TDBTH6A是一种称为分立单工板的器件。这是通用电气或通用电气制造的印刷电路板或PCB的一种形式。该IS200TDBTH6A是通用电气用于蒸汽和燃气轮机控制的Mark VI系列的组件设备。该系列是构成Mark系列的几个系列之一。这些系统用于控制全球各行各业的涡轮机系统。

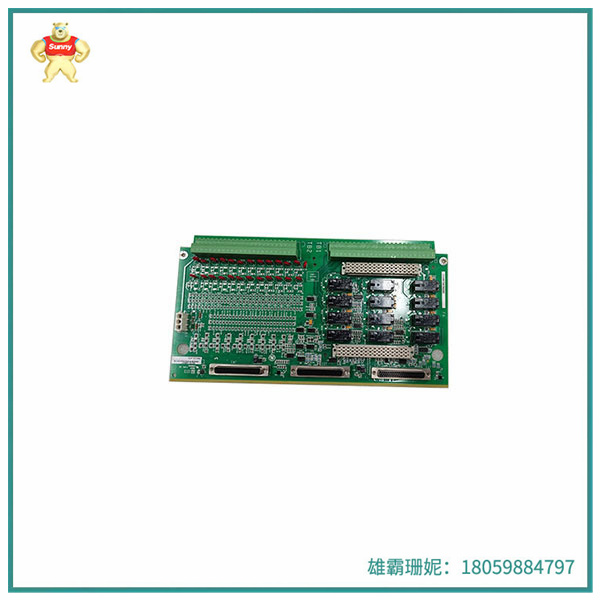

该S200TDBTH6A突出地具有12个大型黑色电位器的集合，这些电位器也称为可变电阻器。电位计排列成三(3)个水平行，每个行四个组件。电位计的两侧放置着一个长方形的灰色元件。IS20TDBTH6A的下半部分被几排非常小的组件占据。两(2)排长长的圆形红色元件，称为MOV或金属氧化物压敏电阻，排列在lS20TDBTH6A的左侧。在靠近中心的lS20OTDBTH6A的最底部是一个带有三(3)个端口的白色小连接器。此连接可用于将其他设备连接到[S200TDBTH6A,几个小的集成电路可以放置在[S200TDBTH6A的上半部分。其中一些在中心水平排列，其他在右上角垂直对齐。在集成电路的IS20OTDBTH6A中心有一(1)个黄色小电容器。两(2）个黄色小电阻器位于IS200TDBTH6A底部，中间有一(1）条黑色条纹。

GE IS200TDBTH6ACD 燃机控制系统模块产品详情：

GE IS200TDBTH6ACD 是通用电气（General Electric，简称GE）的一种燃机控制系统模块。它是GE D200系列燃气轮机控制系统中的一部分，用于监测和控制燃气轮机的运行。

这种燃机控制系统模块的主要功能和特点可能包括：

燃气轮机控制：IS200TDBTH6ACD 模块用于监测燃气轮机的各种参数，如温度、压力、速度等，并根据设定的逻辑和策略来控制燃气轮机的运行状态。

数据采集：模块可以采集传感器和设备提供的数据，用于监测燃气轮机的运行状况，并将数据传输给上位系统进行处理和分析。

通信接口：IS200TDBTH6ACD 可能配备通信接口，用于与其他控制系统和设备进行数据交换和通信。

IS200TDBTH6ACD 控制器 控制全球各行各业的涡轮机系统

Product description

Brand: GE

Model: IS200TDBTH6ACD

Product name: Gas turbine control system module

Product width: 53 mm

Product height: 125 mm

Product net depth/length: 260 mm

The l5.20TDBTH6A is a device called a discrete simplex board. This is a form of printed circuit board or PCB manufactured by General Electric or GE. The IS200TDBTH6A is a component of GE's Mark VI series for steam and gas turbine control. The series is one of several that make up the Mark series. These systems are used to control turbine systems in a wide range of industries worldwide.

The S200TDBTH6A prominently features a collection of 12 large black potentiometers, which are also called variable resistors. The potentiometers are arranged in three (3) horizontal rows of four components each. A rectangular gray element is placed on either side of the potentiometer. The bottom half of the IS20TDBTH6A is occupied by several rows of very small components. Two (2) rows of long round red elements, called MOV or metal oxide varistors, are arranged on the left side of the lS20TDBTH6A. At the very bottom of the lS20OTDBTH6A near the center is a small white connector with three (3) ports. This connection can be used to connect other devices to [S200TDBTH6A,

A few

Small ics can be placed in the top half of [S200TDBTH6A]. Some of them are aligned horizontally in the center, others are aligned vertically in the upper right corner. There is one (1) small yellow capacitor in the center of the IS20OTDBTH6A of the IC. Two (2) small yellow resistors are located at the bottom of the IS200TDBTH6A with one (1) black stripe in the middle.

GE IS200TDBTH6ACD Gas Turbine Control System Module Product Details:

The GE IS200TDBTH6ACD is a gas turbine control system module from General Electric (GE). It is part of the GE D200 series gas turbine control system for monitoring and controlling the operation of gas turbines.

The main functions and features of this gas turbine control system module may include:

Gas turbine control: The IS200TDBTH6ACD module is used to monitor various parameters of the gas turbine, such as temperature, pressure, speed, etc., and control the operating state of the gas turbine according to the set logic and strategy.

Data acquisition: The module can collect the data provided by sensors and equipment for monitoring the operating status of the gas turbine, and transmit the data to the upper system for processing and analysis.

Communication interface: The IS200TDBTH6ACD may be equipped with a communication interface for data exchange and communication with other control systems and devices.
