DS200SDCCG1AGD驱动控制板 DS215SDCCG1AZZ01B GE Mark V系列

产品技术要求：

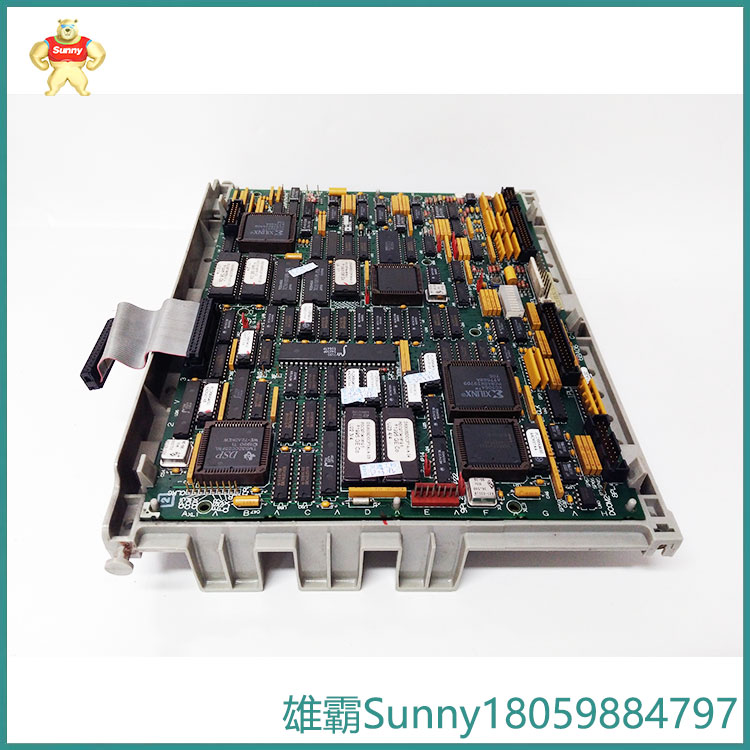

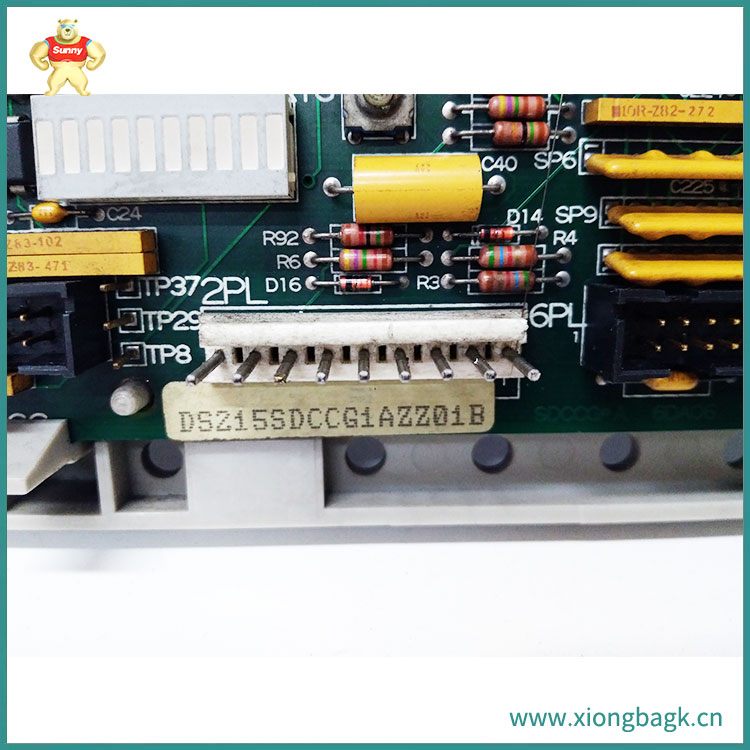

GE驱动控制板DS200SDCCG1AGD是驱动器的主控制器。通用电气驱动控制板DS200SDCCG1AGD由3个微处理器和RAM组成，可由多个微处理器同时访问。GE驱动控制板DS200SDCCG1AGD上的10个led用于显示故障码，当发生错误时触发故障。十个led排成一排，一起显示错误代码。如果没有遇到错误并且电路板正常工作，则led从左到右依次点亮两个led。打开单板柜门，定位单板位置，目测指示灯状态，了解单板状态。由于单板和各部件都存在高压，打开单板柜门时应小心操作。当电源被应用到驱动器时，不要触摸机柜中的任何东西。另外，当柜门打开时，不要让任何东西掉在柜内，检查完成后请关门。

GE Drive control board DS200SDCCG1AGD is the primary controller of the drive. The GE Drive control board DS200SDCCG1AGD consists of 3 microprocessors and RAM and can be accessed by multiple microprocessors simultaneously. Ten leds on the GE drive control board DS200SDCCG1AGD display fault codes and trigger faults when errors occur. Ten leds in a row display error codes together. If no errors are encountered and the board is working properly, the led lights up two leds from left to right.

When you first start the board, you must set configuration parameters to define how the board will handle information and control the drive. There are software tools available that enable you to edit parameters. These tools can be used on a laptop. If you have multiple drives to configure, you can create a configuration and download the same configuration to multiple boards.
