VMIVME-4132  模拟输出板 支持非特权短输入和输出

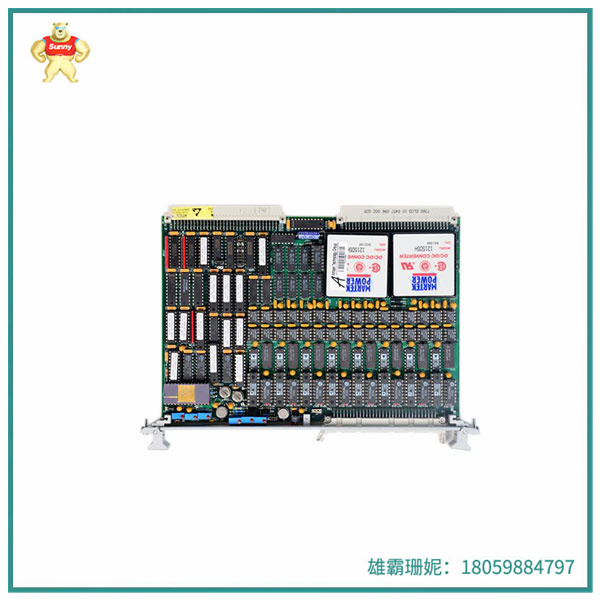

Abaco Systems / VMIC VMIVME-4132-010 / VME-4132-010 32 通道模拟输出板

本机具有用于前面板 scotchflex 连接器的非标准闩锁。

VMIVME-4132-010

• 010：分立式电线连接器接口

查看前面板连接器的照片。

部件号 332-004132-010 K， 332-004132-010 L

产品代码： 5998-01-622-4809， 5998016224809

产品描述

VMIVME-4132

该模块是最初由通用电气工业自动化部门开发的产品线的一部分，然后由Abaco Systems购买和生产。这些设备是 VMIC/GE Fanuc 模块板，专为各种功能和应用（如 CPU 板和输入输出处理）而构建。

本机被指定为模拟输出板的 VMIVME-4132 模块，配备多达 32 个用于模拟输出的通道。这些输出能够由各种板载跳线模块进行编程。这些跳线允许输出能够在各种电压范围内工作。所有这些输出通道均采用 12 位分辨率设计，完全能够在正负 10 V 电压下提供或吸收 10 mA 电流。为了完成离线测试，模拟输出可以与外部电路断开。

VMIVME-4132 模块的设计具有 VMIC/GE Fanuc 系列的标准功能特性，例如符合 VMEbus 标准。该模拟输出板是标准的双高印刷电路，与VMEbus规范的接口兼容。地址修饰器模块采用跳线选择，具有解码能力，以支持非特权短输入和输出以及监控短输入和输出。

[友情提示]

运输方式和货运方式:

根据不同地区的船运公司。(如果您需要指定运输公司，请联系卖方)

运费、运输价格(不含国家海关手续费等费用)，以卖方实际提供的运费价格为准。在中国境内(包括香港、澳门和台湾)，大部分免费航运。请联系工作人员。付款方式:买家请根据实际情况选择付款方式，如有疑问请联系卖家!!!!

VMIVME-4132  模拟输出板 支持非特权短输入和输出

Abaco Systems/VMIC VMIVME-4132-010 / VME-4132-010 32-channel analog output board

This unit has a non-standard latch for the scotchflex connector on the front panel.

VMIVME-4132-010

• 010: Separate wire connector interface

View photos of front panel connectors.

Part number 332-004132-010 K, 332-004132-010 L

Product code: 5998-01-622-4809, 5998016224809

Product description

VMIVME-4132

The module is part of a product line originally developed by GE's Industrial Automation division and then purchased and manufactured by Abaco Systems. These devices are VMIC/GE Fanuc module boards, built for a variety of functions and applications such as CPU boards and input/output processing.

The unit is designated as the VMIVME-4132 module of the analog output board, equipped with up to 32 channels for analog output. These outputs can be programmed by various onboard jumper modules. These jumpers allow the output to operate over a variety of voltage ranges. All of these output channels are designed with 12-bit resolution and are fully capable of providing or absorbing 10 mA of current at plus or minus 10 V. To complete the offline test, the analog output can be disconnected from the external circuit.

The VMIVME-4132 modules are designed with the standard functional features of the VMIC/GE Fanuc series, such as compliance with VMEbus standards. The analog output board is a standard dual-height printed circuit compatible with the interface of the VMEbus specification. The address modifier module uses jumper selection with decoding capability to support unprivileged short inputs and outputs as well as monitor short inputs and outputs.
