IC693DNM200 GE 90-30系列单槽通信模块

产品详情：

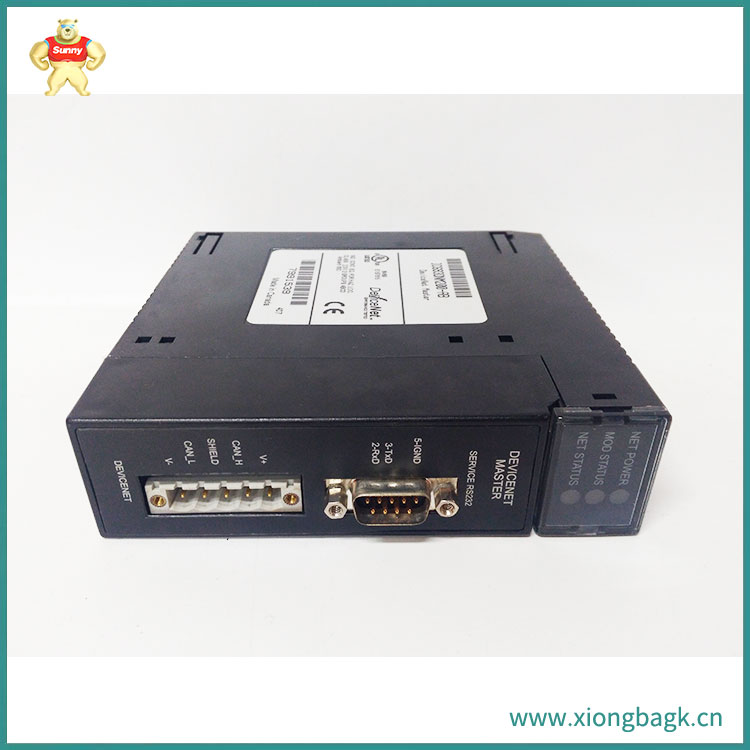

IC693DNM200是一个DeviceNet主控模块。该模块是一个单槽通信模块，是系列90-30可编程逻辑控制器(PLC)平台的一部分，该平台以前由GE发那科公司生产，现在属于艾默生自动化公司。该模块提供单个DeviceNet终端。它还有一个(1)RS232 9针D外壳母端口，用作模块服务端口。

IC693DNM200支持DeviceNet协议的所有数据速率，特别是125K, 250K和500K传输速率。每台从机最多可传送255字节的输入数据和255字节的输出数据，每台从机最多可传送3972字节的输入数据和3972字节的输出数据。此外，使用该模块可以建立总共126个I/O连接，因为它能够与多达63个从设备通信，其中每个从设备可分配至多2个I/O站。该模块支持和可配置的数据连接是轮询，频闪，循环或COS。该DeviceNet主模块还支持显式消息传递、未连接消息管理器(Unconnected Message Manager, UCMM)和每个从属单元的一个(1)代理连接。

In addition, the module can run in dual mode, acting as both master and slave server. Failure behavior, especially during communication loss, can be configured to provide an acceptable system response in the event of such errors. The module also comes with upgradeable firmware that allows module updates and bug fixes to be downloaded via the RS232 service port.

IC693DNM200 module is the DeviceNet main module designed and manufactured by GE Fanuc. The device is part of the Series 90-30, which has integrated capabilities for a variety of messaging and data transfer applications. Most of these functions are automatic, and the unit works on a DeviceNet network that includes other devices and hosts. The IC693DNM200 module can be mounted on host racks of Series 90-30 or PACSystems RX3i systems, but is not suitable for remote racks or extension racks. The IC693DNM200 DeviceNet module has 32 output points and supports standard data rates such as 125K, 250K and 500K baud. Output 4 in a group, each group of 8 points. The unit is rated for 12 to 24 volts DC (positive logic) and its backplane consumes 450 milliamps at 5 volts DC.
