DS200DCFBG1BKC GE Mark V系列电源板 保护电流免受中断

产品详情：

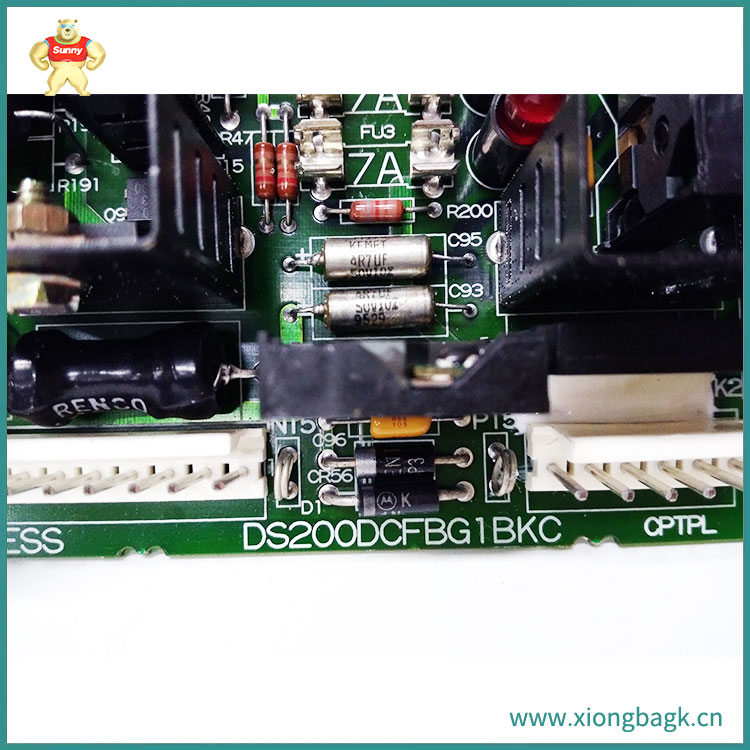

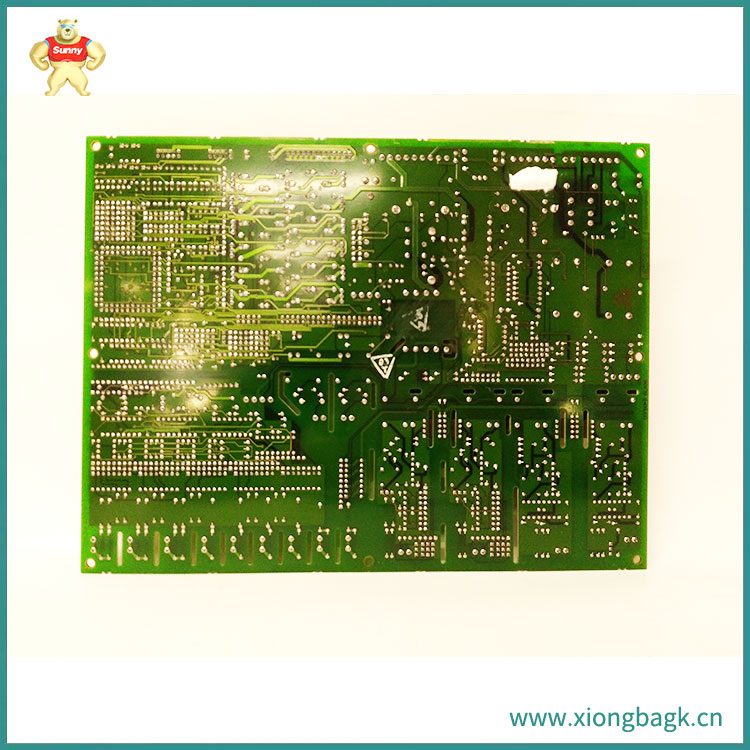

通用电气DS200DCFBG1BKC是Mark V系列电源板。当安装在驱动器中时，该板为机箱风扇以及系统的控制级电源提供电力。在GE的驱动系统中，该板兼容DC2000、AC2000、FC2000、CB2000和ME2000系列驱动。名义上额定源输入板可以安全地测量38和115VAC之间。根据输入电压的不同，卡产生的输出频率可以测量0到500千赫之间的任何地方。DS200DCFBG1BKC上有五个独立的电路。这些包括控制级供电电路，驱动电路，电机场电源电路，以及交流和直流监控电路。驱动器上保险丝的诊断信息通过两个LED指示灯和一个霓虹灯显示给用户。三个保护熔断器集成到电路板中，保护电流免受中断。当使用卡上的五个测试点之一时，检查板中的电压水平很简单。为用户提供了许多可配置的设置，以适应特定的工作需求。单板上有12个跳线和7个拨码开关，可根据用户需求配置。电路板和驱动器包含应遵循的通用电气概述的安装参数。这些指导方针将保护整个装置免受任何意外损坏。请参考设备的数据表和手册，以获得布线和安装电路板的完整指南。Mark V系列的成员由其原始制造商通用电气提供技术支持。

The GE DS200DCFBG1BKC is the Mark V Series power board. When mounted in a drive, the board provides power to the case fan as well as to the system's control-level power supply. In GE's drive system, the board is compatible with DC2000, AC2000, FC2000, CB2000 and ME2000 series drivers. Nominal rated source input panels can safely measure between 38 and 115VAC. Depending on the input voltage, the output frequency produced by the card can be measured anywhere from 0 to 500 KHZ.

There are five separate circuits on the DS200DCFBG1BKC. These include control-level power supply circuits, driver circuits, electric field power circuits, and AC and DC monitoring circuits. The diagnostic information of the fuse on the drive is displayed to the user through two LED indicators and a neon sign. Three protective fuses are integrated into the circuit board to protect the current from interruption. Checking the voltage level in the board is simple when using one of the five test points on the card. Users are provided with a number of configurable Settings to suit specific job requirements. The board has 12 jumpers and seven DIP switches, which can be configured as required.

The circuit board and driver contain the installation parameters outlined by GE that should be followed. These guidelines will protect the entire unit from any accidental damage. Refer to your device's data sheet and manual for a complete guide to wiring and installing the circuit board. The members of the Mark V Series are technically supported by their original manufacturer, General Electric.
