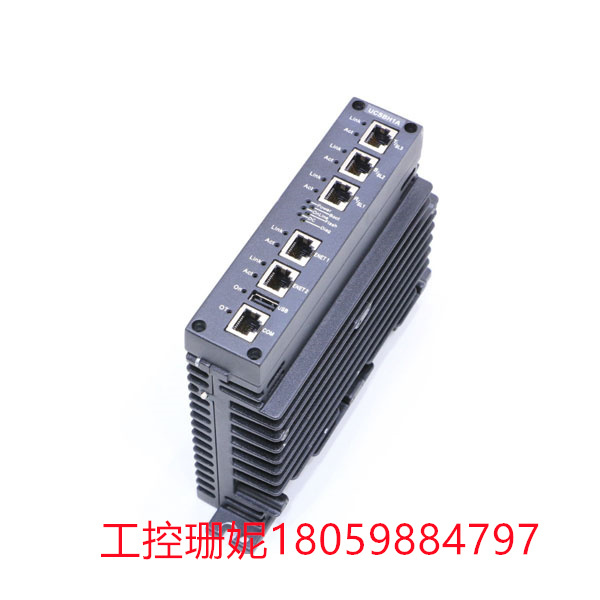

IS420UCSBH1A  GE控制器模块 单模块

公司开发的UCSB控制器模块。UCSB,控制器是执行特定应用控制系统逻辑的独立计算机。与传统控制器不同，UCSB控制器不托管任何应用程序O。此外，所有O网络都连接到每个控制器，为其提供所有输入数据。如果控制器因维护或修理而断电，硬件和软件架构可确保不会丢失单点应用程序输入。

特点

。该控制器预装了专用软件。它能够运行梯级或块。无需重新启动系统即可在线对控制软件进行细微更改。

。IEEE 1588协议用于通过R、S和TIONets将IO包和控制器的时钟同步到100微秒以内。外部数据通过R、S和TIONets传入和传出控制器的控制系统数据库。包括IO模块的过程输入和输出。

·这还包括双系统中的以下内容:

·指定控制器的内部状态值和初始化信息。来自两个控制器的状态和同步信息

这还包括三重模块化冗余(TMR)系统中的以下内容:

。投票和状态的内部状态值，以及来自所有三个控制器的同步信息。来自指定控制器的数据用于初始化

IS42oUCSBH1A优点

UCSB控制器具有以下优势:

。单模块

。内置电源。无需跳线设置无电池

。无风扇

。更小的面板占地面积。闪存可以轻松更新

UCSB控制器安装在面板中，并通过板载O网络(IONet)接口与IⅣO包进行通信。IONet是一种私有专用以太网，仅支持Mark控制O模块和控制器。

特征

。微处理器: : 600 MHz Intel EP80579

。内存: 256 MB DDR2 SDRAM，带纠错码(ECC)、闪存支持的SRAM、NAND闪存大小为2∈。操作系统:QNX Neutrino

。重量:2.4磅

安装与安装

. UCSB控制器安装在直接连接到面板金属板的单个模块中。. UCSB控制器应安装在面板上，使垂直气流不受翅片阻碍。

产品说明

IS420UCSBH1A控制器是通用电气制造的第一个UCSB控制器，作为Mark VIe控制安全系统系列的一部分。该控制器类似于UCSC控制器，虽然它没有相同的硬件，但操作该控制器所需的软件几乎相同。根据《GEH-6725标记VIe和标记Vle，控制设备HazLoc说明指南》，IS420UCSBH1A控制器被标记为标记VIe、LS2100e和EX2100e控制器。还有一个特定的微处理器与该控制器一起使用，安装在该设备中的微处理器是600 MHz EP80579 Intel处理器。

在GEH-6725使用指南的第22页上，有一个小表格，标明了为IS420UCSBH1A供电所需的电气电源额定值，额定值如下，最低电压为18伏直流电，最高电压为30伏直流电，额定功率为24伏和28伏直流电。该器件的最大额定电流为1.5ADC.

IS420UCSBH1A GE 控制器模块 单模块

UCSB controller module developed by the company. A UCSB controller is an independent computer that executes the logic of a control system for a specific application. Unlike traditional controllers, UCSB controllers do not host any applications. In addition, all O networks are connected to each controller, providing it with all input data. Hardware and software architecture ensures that a single point of application input is not lost if the controller loses power due to maintenance or repair.

peculiarity

. The controller is pre-installed with special software. It is capable of running rungs or blocks. Make minor changes to the control software online without restarting the system.

. The IEEE 1588 protocol is used to synchronize the clock of IO packets and controllers to less than 100 microseconds via R, S, and TIONets. External data is passed to and from the controller's control system database via R, S, and TIONets. Includes process input and output of IO module.

· This also includes the following in dual systems:

· Specify internal status values and initialization information for the controller. Status and synchronization information from both controllers

This also includes the following in Triple Modular Redundancy (TMR) systems:

. Internal status values for voting and status, as well as synchronization information from all three controllers. Data from the specified controller is used for initialization

IS42oUCSBH1A Advantages

The UCSB controller has the following advantages:. unimodule

. Built-in power supply. No jumper Settings No battery

. fanless

. Smaller panel footprint. Flash memory can be easily updated

The UCSB controller is mounted in the panel and communicates with the IIVO packet via an on-board O Network (IONet) interface. IONet is a private Ethernet that supports only Mark control O modules and controllers.

trait

. Microprocessor: 600 MHz Intel EP80579

. Memory: 256 MB DDR2 SDRAM with error correction code (ECC), flash supported SRAM, NAND flash size of 2∈. Operating System :QNX Neutrino

. Weight :2.4 pounds

Installation and installation

The UCSB controller is installed in a single module directly connected to the panel metal plate. The UCSB controller shall be mounted on the panel so that vertical airflow is not hindered by fins.

Product description

The IS420UCSBH1A controller is the first UCSB controller manufactured by GE as part of the Mark VIe family of Control Safety Systems. The controller is similar to the UCSC controller, although it does not have the same hardware, the software required to operate the controller is nearly the same. According to the GEH-6725 Labeled VIe and Labeled Vle, HazLoc Instructions for Control Devices, IS420UCSBH1A controllers are labeled VIe, LS2100e, and EX2100e controllers. There is also a specific microprocessor used with this controller, and the microprocessor installed in this device is a 600 MHz EP80579 Intel processor.

On page 22 of the GEH-6725 Usage Guide, there is a small table indicating the electrical power ratings required to power the IS420UCSBH1A. The ratings are as follows, with a minimum voltage of 18 volts DC, a maximum voltage of 30 volts DC, and a power rating of 24 volts and 28 volts DC. The device has a maximum rated current of 1.5ADC.
