IS220PAICH1A GE 三重模块冗余(TMR)Mark VI控制系统

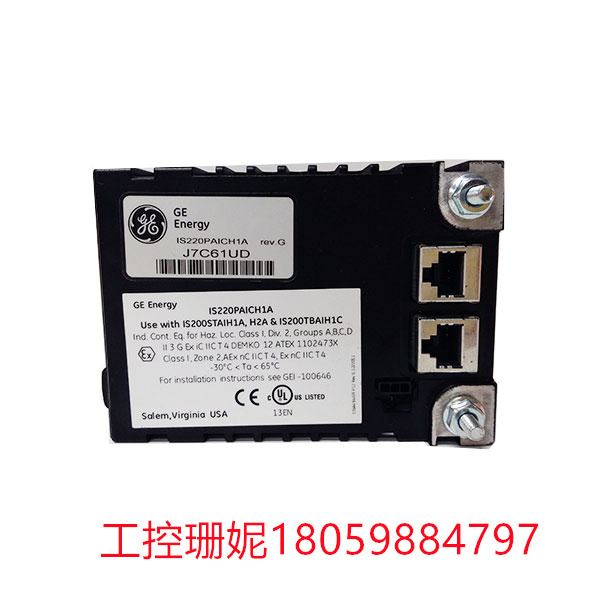

The IS220PAICH1A is an analog /O Pack developed under the GE Mark VI series. Simplex and Triple Module Redundancy (TMR)Mark VI control systems can be used in small applications and large integrated systems, with control ranging from a single module to multiple distributed modules. The system's throughput allows the operation of up to nine I/O boards of a 21-slot VME rack, including data voting, in 40 milliseconds. In an approach called software Implementation Fault tolerance, input votes in software (SIFT). Each control module's VCMI board receives input from the control module backplane and other modules through its own IONet.

In addition to general purpose I/O, the Mark V has a number of boards designed for direct communication with specific sensors and actuators. In many cases, this minimizes or eliminates a large number of inserted instruments. As a result, many possible single points of failure in the most critical areas are eliminated, improving operational reliability and reducing long-term maintenance costs. Thanks to the direct connection to the sensors and actuators, diagnostics can also be directly queried on the device for optimal results. This information is used to evaluate the performance of devices and systems. The elimination of peripheral meters reduces spare parts inventory, which is a subtle benefit of this design.

The power distribution system of the IS220PAICH1A using the JPDG switchboard supports the redundant fed Mark Vle control power supply and the redundant fed I/O wetting power supply. The following are specific descriptions of these connections:

Two 24 or 28 v dc, 40 A control power supplies can be connected to the JPDG board using the LG-type harness. Power supply is connected to the main power supply.

Two 24 or 48 V dc, 40 AI/O wetting power supplies can be connected to the JPDG board using a JF type harness. Power supply is connected to the main power supply.

IS220PAICH1A· An optional PPDA module is used in conjunction with JPDG to monitor the health of the distribution system. It uses an RD-type harness to connect directly to the I/O connector JA1 and the power connector JDx.

· The JPDG board provides R, S, and T power from the connectors JC1-JC4 and JD1-JD5 to the UCSC Mark Vle controller and IONet switch using EG type wiring harnesses.

JPDG- Power can be supplied to up to four JPDH boards via J1-J4 using JB-type wiring harnesses.

JPD can provide V/O wetting power to up to 7 1/O terminal boards via JFA-JFG using EN harness.

JPDH boards fan out control power for up to eight R, S, and T modules (each) using RD-type wiring harnesses. The R, S, T control power bus can be extended from the connector J1X to another JPDH using the EH harness.

·JPDD boards can be used to add switchable I/O wetting power branches with fuses to a single VO terminal board. From JPDG, JFx to JPDDJ28, JG harness is used. The [S220PAICH1A model is described as an analog V/O package and has been approved for use in hazardous and non-hazardous locations. On the front of the model, there are four indicators. There is also a port on the bottom, which is described as a V/O port. The PAIC battery pack can use a variety of voltages, the minimum voltage of the PAIC battery pack is <> point <> volts DC.
