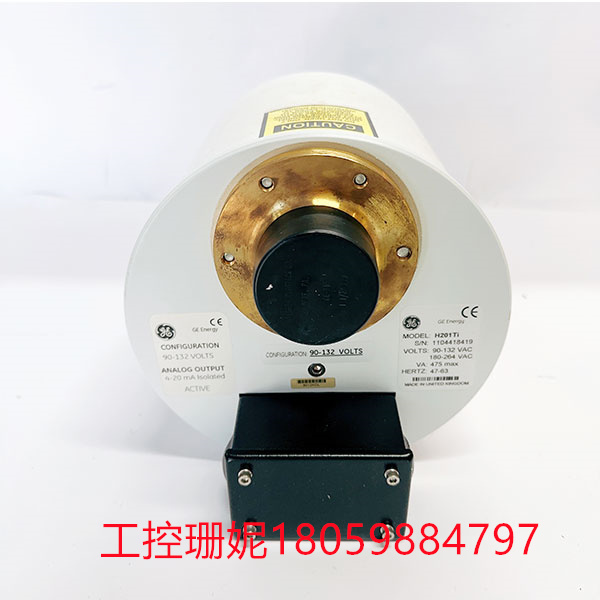

GE-H201Ti GE 复合气体传感器 故障气体测量系统

Hydran 201Ti。它永久安装在变压器上,将为人员提供各种故障气体复合值的单一读数(以ppm为单位),以提醒他们注意潜在问题。

可以下载该值,并将警报设置在预定级别，以提醒人员并监控正在发生的故障情况。

应用

中小型变压器。

降低故障的风险和/或后果。

好处

实时单复合故障气体测量系统。

本地和远程警报设置在预定义的水平或变化率上。

通过串口通信远程查看气体读数和趋势。

201Tis复合气体传感器使用燃料电池技术(在标准j中称为固定仪器-方法3)提供世界知名的“Hydran气体值”。它对氢气(一般故障气体)100%响应，对一氧化碳(加热纸)，乙炔(电弧)和乙烯(加热油)也很敏感，因此涵盖了所有主要变压器故障的根本原因。

由于监测单元安装在单个阀门上并使用动态油采样，因此不需要泵或额外的管道连接到不同的阀门。由于其不复杂的功能和易于理解的信息，它提供，201Ti已成为多年来的监视器选择之一，是任何监视器中最大的安装基础之一。

与最新的Mark lv版本，Hydran 201Ti监视器已经完全检修与新的电子板和电源，使其符合RoHS标准，解决任何过时的问题，并进一步改进这个时间证明的产品。

它现在提供了额外的功能，如:-改进的传感器

modbus协议通过隔离的RS-485通信

本地uSB端口取代RS-232端口不再发现在大多数现场笔记本电脑

．  兼容通用电气备受赞誉的PerceptionTM Fleet软件下载，趋势和分析数据，像任何其他通用电气DGA监测设备

关键好处

-连续测量主Hz故障气体-本地LCD显示

-远程传输气体ppm值

-经过验证和不断改进的设计(销售超过30,000台)-易于安装，单阀安装

GE-H201Ti GE 复合气体传感器 故障气体测量系统

Hydran 201Ti is a small online warning transmitter. It is permanently installed on the transformer and will provide personnel with a single reading (in ppm) of the various faulty gas complex values to alert them to potential problems.

This value can be downloaded and alerts set at a predetermined level to alert people and monitor ongoing failure situations.

Apply

Small and medium-sized transformers.

Reduce the risk and/or consequences of failure.

advantage

Real-time single compound fault gas measurement system.

Local and remote alerts are set at predefined levels or rates of change.

Remotely view gas readings and trends via serial communication.

The 201Tis composite-gas sensor provides the world renown "“Hydran gas value”using fuel celltechnology (described as  fixed instruments - method 3 in the standardJ.  It responds 100% to Hydrogenlgeneral fault gas)and is also sensitive  toCarbon Monoxide loverheated paper), Acetylene (arcingl andEthylene loverheated oill ,  thus covering all the main transformer failure root causes.

Because the monitoring unit mounts on a single valve and uses Dynamic Oil Sampling,  there is noneed for a pump or extra piping to connect to different valves.  Due to its uncomplicated features andthe  easily understood information it provides, the 201Ti has been amongst the monitors of choice formany years,  with one of the largest installed base of any monitor.

with the latest Mark lv version,  the Hydran 201Ti monitor has been completely overhauled with newelectronic boards and power supply to make it RoHS  compliant, address any obsolescence issue andfurther improve this time proven product.

lt now offers additional features like:- lmproved sensor

ModbusRprotocol communication over isolated RS-485

Local uSB port to replace the RS-232 port no longer found on most field laptops

.  Compatibility with GE's acclaimed PerceptionTM Fleet software to download,  trend and analyse data,like with any other GE DGA monitoring equipment

Key Benefits

- Continually measures main Hz fault gas- Local LCD display

- Communicates gas ppm value remotely

- Proven and continuously improved design (over 30,000 units sold)- Easy to install, single valve mount
