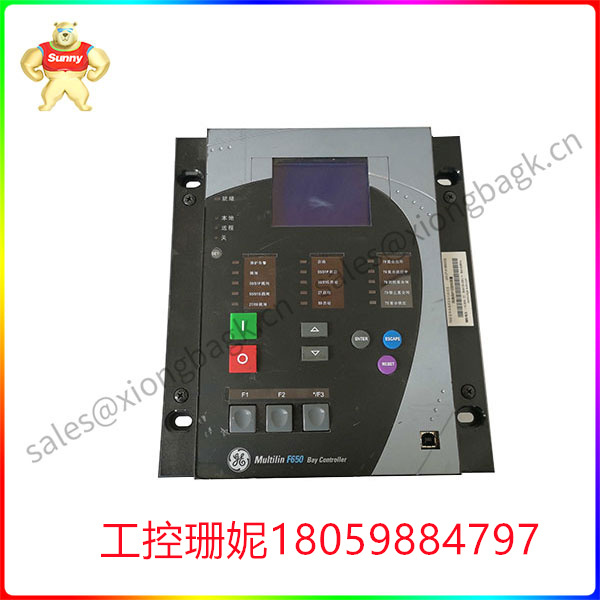

F650-G-N-A-B-F-2-G-1-HI-C-E-1 GE 高压数字输出板 控制系统

F650-G-N-A-B-F-2-G-1-HI-C-E GE模拟输出模块

F650-G-N-A-B-F-2-G-1-HI-C-EGE该单元被命名为F650-G-N-A-B-F-2-G-1-HI-C-EGE模块，是—种高压数字输出板，能够提供128通道的高压和大电流接收器输出。该设备配备了一组开路集电极输出驱动器，能够支持至少5至48伏的直流输出电压。其他标准VMIC功能包括保护功能，如自动浪涌电流关闭保护，以及热关闭保护，以防任何过电压或过热。

产品应用

F650-G-N-A-B-F-2-G-1-HI-C-E广泛应用于各种工业自动化控制系统，例如:

机器人控制系统生产线控制系统电力控制系统

产品说明

F650-G-N-A-B-F-2-G-1-HI-C-E是一款高性能的产品，主要用于工业自动化控制系统。该产品采用先进的技术，可以帮助用户实现自动化控制和数据采集。

F650-G-N-A-B-F-2-G-1-Hl-C-E的主要参数:

输入电压:AC 100-240V

输出电压:DC24V

输出电流:5A

工作温度:-20°℃~+60°C保护等级:IP20

F650逻辑配置是功能强大的编程逻辑引擎，能够创建定制的保护和控制方案，从而最大限度地减少对辅助组件和布线的需求和相关成本。使用F650逻辑配置，可以对F650进行编程，以提供所需的跳闸逻辑以及用于自动传输方案(Main-Tie-Main)、基于频率、电压和通信的减载、环路恢复方案、其他补救措施方案和动态设置组更改的自定义方案逻辑。F650为两个数字或模拟输入提供了一套全面的模拟操作数。

F650-G-N-A-B-F-2-G-1-HI-C-E-1 GE 高压数字输出板 控制系统

F650-G-N-A-B-F-2-G-1-HI-C-E GE analog output module

F650-G-N-A-B-F-2-G-1-HI-C-EGE The unit, named F650-G-N-A-B-F-2-G-1-HI-C-EGE module, is a high voltage digital output board capable of providing 128 channels of high voltage and high current receiver output. The device is equipped with a set of open collector output drivers capable of supporting DC output voltages of at least 5 to 48 volts. Other standard VMIC features include protection features such as automatic inrush current off protection, and thermal off protection in case of any overvoltage or overheating.

Product application

F650-G-N-A-B-F-2-G-1-HI-C-E is widely used in various industrial automation control systems, such as:

Robot control system Production line control system Power control system

Product description

F650-G-N-A-B-F-2-G-1-HI-C-E is a high performance product, mainly used in industrial automation control systems. The product uses advanced technology to help users achieve automated control and data acquisition.

Main parameters of F650-G-N-A-B-F-2-G-1-Hl-C-E:

Input voltage :AC 100-240V

Output voltage :DC24V

Output current :5A

Operating temperature :-20° C ~+60°C Protection level :IP20

The F650 Logic Configuration is a powerful programming logic engine that enables the creation of customized protection and control schemes, thereby minimizing the need for auxiliary components and cabling and the associated costs. With the F650 logic configuration, the F650 can be programmed to provide the required trip logic as well as custom scenario logic for automatic transmission scenarios (Main-Tie-Main), frequency, voltage, and communication based load shedding, loop recovery scenarios, other remediation scenarios, and dynamic setup group changes. The F650 provides a comprehensive set of analog operands for two digital or analog inputs.
