850-EP5NNG5HNNAANGAPBBSENNBN  GE 愦线保护系统

制造者：通用电气Multilin (GE)

制造地点：加拿大安大略省万锦市

型号：850-EP5NNG5HNNAANGAPBBSENNBN

RTD保护元件：跳闸和报警

柔性元件数量：8

跳闸总线输入：16

跳闸电路涓流电流：1至2.5 mA

GE Multilin 850馈线保护系统850-EP5NNG5HNNAANGAPBBSENNBN用于控制、管理和保护配电馈线。

产品描述

850-EP5NNG5HNNAANGAPBBSENNBN是通用电气Multilin的GE Multilin850愦线保护系统。850馈线系统包括两个CPU:一个32位微处理器，用于测星数字输入和模拟信号以及控制设备的输出继电器，另一个相同尺寸的微处理器用于控制设备的以太网通信协议。本机具有可拆卸电源。

Multilin的850-EP5NNGSHNNAANGAPBBSENNBN装置以英语编程。它具有5安培3相电流输入和一组三个无相电流输入。该装置具有5安培接地输入和110-250 VDC/110至230 VAC电源。面板内有一个彩色图形显示屏。

850-EPSNNG5HNNAANGAPBSENNBN提供高级电流保护配置以及高级电压计量和保护。该装置设计有基本的控制和监控配置，不包括光纤连接器或无线通信。

RS232程序端口此端口

用于连接到便携式PC。可以在任何

位置创建设定值文件，并使用EnerVista 369设置软件通过此端口下载。也可以对设定值和实际值进行本地查询。新固件可以通过

此端口下载到369 Relay闪存。升级中继固件不需要更改硬件EPROM。

键盘

369继电器消息在主标题“设定值"和

“实际值”下组织成页面。[设定点]键用于浏览

可编程参数的页眉。[实际值]键用于浏览测量参数的页眉。

每个页面进—步细分为消息的逻辑子组。[PAGE]向上和向下键可用于在子组中导航。

·[设定值]:此键可用于浏览

可编程参数的页眉。或者，可以按此键，然后使用向上翻页/向下翻页键。

·[实际值]:此键用于浏览

测量参数的页眉。或者，可以通过按“实际值"键，然后使用“向上翻页/向下翻页"键来滚动浏览页面。

本机的后部连接包括交流模拟输入、基本通信端口、LVI/O和高级COM端口。请查看制造商说明，了解如何正确连接到这些端子。850-

EPSNNG5HNNAANGAPBBSENNBN设计为使用位于机箱上的八个螺钉连接进行面板安装，或使用位于外壳侧面的V形卡舌进行卡舌安装。

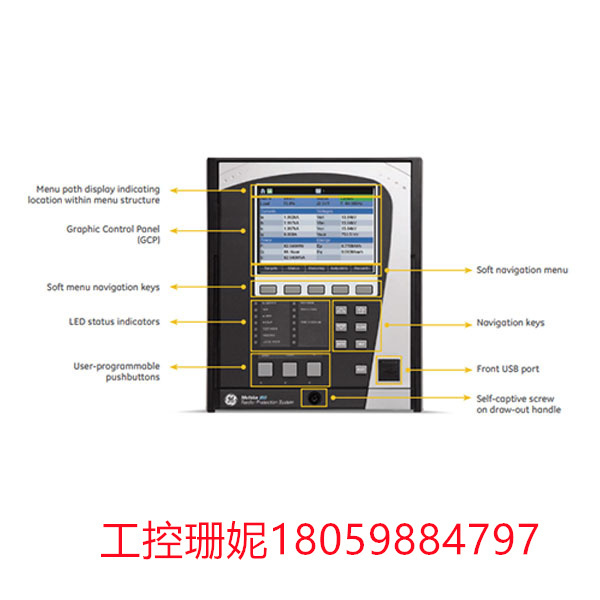

850-EP5NNG5HNNAANGAPBBSENNBN的前控制面板包括显示屏、导航按钮、用于屏幕导航、复位、输入、帮助和返回按钮的菜单选项卡以及上下切换按钮.它还包括多个LED指示灯T和一个USB端口。GE手册或用户指南将为您提供有关此设备的更多详细信息。

有关850-EP5NNG5HNNAANGAPBBSENNBN的常见问题

什么是850-EP5NNG5HNNAANGAPBBSENNBN?

作为850系列的一部分，通用电气Mulilin的850-EPSNNGHNNANGAPBBSENNBN是一种馈线保护系统，用于控制、保护和监控馈线保护系统。它提供两个微处理器和各种通信端口。

850-EP5NNG5HNNAANGAPBBSENNBN  GE 愦线保护系统

Manufacturer: General Electric Multilin (GE)

Manufacturing Location: Markham, Ontario, Canada

Model: 850-EP5NNG5HNNAANGAPBBSENNBN

RTD protection element: tripping and alarm

Number of flexible components: 8

Trip bus input: 16

Trip circuit trickle current: 1 to 2.5 mA

GE Multilin 850 Feeder Protection System 850-EP5NNG5HNNaangAPBBSENNBN Used to control, manage, and protect distribution feeders.

Product description

850-EP5NNG5HNNAANGAPBBSENNBN is the GE Multilin850 inertial wire protection system from GE Multilin. The 850 feeder system consists of two cpus: a 32-bit microprocessor for the digital input and analog signals for the star measurement and the output relay for the control device, and another microprocessor of the same size for the control device's Ethernet communication protocol. This unit has a detachable power supply.

Multilin's 850-EP5NNGSHNNAANGAPBBSENNBN device is programmed in English. It has a 5 amp 3 phase current input and a set of three non-phase current inputs. The unit has a 5 amp grounding input and a 110-250 VDC/110 to 230 VAC power supply. Inside the panel is a color graphic display.

The 850-EPSNNG5HNNAANGAPBSENNBN offers advanced current protection configurations and advanced voltage metering and protection. The device is designed with basic control and monitoring configurations and does not include fiber optic connectors or wireless communications.

RS232 Program port This port

For connecting to a portable PC. Can be in any

Location Create Settings file and download via this port using EnerVista 369 Settings software. The set and actual values can also be queried locally. New firmware can pass

This port is downloaded to 369 Relay flash. Upgrading the trunk firmware does not require changing the hardware EPROM.

Keyboard

369 Relay messages in the main heading "Set values" and

"Actual Value" is organized into pages. The [Set point] key is used for browsing

The header of the programmable parameter. The Actual Value key is used to browse the header of the measured parameter.

Each page is progressively subdivided into logical subgroups of messages. [PAGE] The up and down keys can be used to navigate through subgroups.

·[Set value]: This key can be used for browsing

The header of the programmable parameter. Alternatively, you can press this key and then use the Page Up/Page Down key.

·[Actual value]: This key is used for browsing

The header of the measured parameter. Alternatively, you can scroll through the page by pressing the Actual Value key and then using the Page Up/Page Down key.

The rear connections of the unit include AC analog inputs, basic communication ports, LVI/O, and advanced COM ports. Check the manufacturer's instructions on how to properly connect these terminals. 850 -

The EPSNNG5HNNAANGAPBBSENNBN is designed for panel mounting using eight screw connections located on the chassis or a V-shaped latch located on the side of the housing.

The 850-EP5NNG5HNNAANGAPBBSENNBN's front control panel includes the display, navigation buttons, menu tabs for on-screen navigation, reset, input, Help, and back buttons, and buttons for switching up and down. It also includes multiple LED indicators and a USB port. The GE manual or user guide will provide you with more detailed information about this device.

Frequently Asked Questions about 850-EP5NNG5HNNAANGAPBBSENNBN

What is 850-EP5NNG5HNNAANGAPBBSENNBN?

Part of the 850 series, GE Mulilin's 850-EpSNnghnNangapbbsenNBN is a feeder protection system designed to control, protect and monitor feeder protection systems. It offers two microprocessors and various communication ports.
