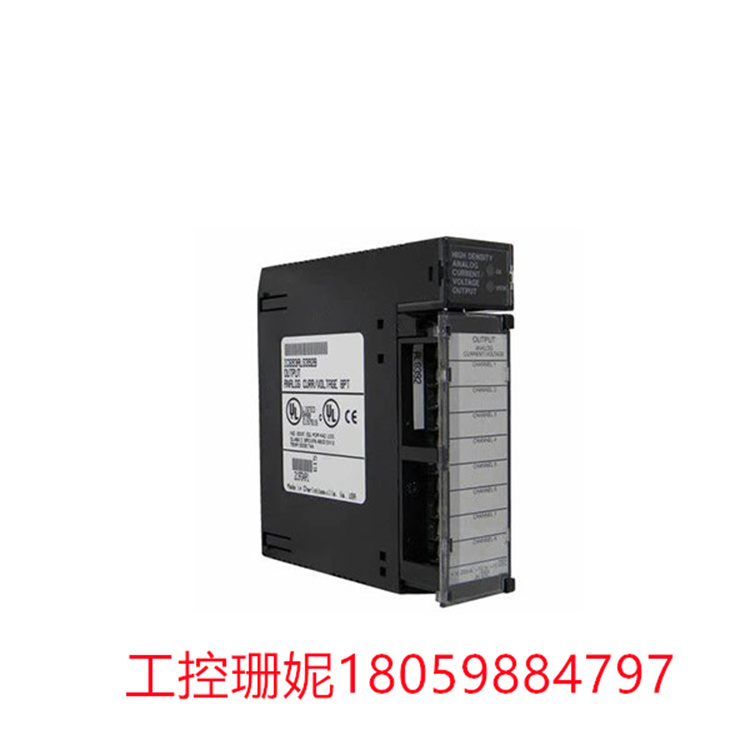

IC693ALG392 GE 模拟输出模块 可配置15或16位分辨率

概述：

IC693ALG392是90-30系列模块。该模块是一个模拟输出模块，通常用于实现仪器或设备的调制控制，如变频驱动器(VFD)，控制阀，定位器，转换器和其他类似的调制设备。它也可用于将模拟数据重新传输到接收元件，如记录器、数据记录器和其他兼容的接收设备。

IC693ALG392具有8个输出通道，可配置15或16位分辨率，具体取决于所选的模拟输出范围。它能够提供0至+10伏(单极)/ -10至+10伏(双极)电压和0至20毫安/ 4至20毫安输出信号等电压信号。为了能够产生输出模拟信号，该模块需要一个隔离的24VDC电源，直接连接到模块的指定端子排。

该模块是出厂校准的。校准信息包括0.625µA, 0至20 mA;0.5µA, 4 ~ 20ma;电压为0.3125 mV(每计数)。模块的每个通道显示8(8)毫秒的更新速率，分辨率为0.5µA (1 LSB = 0.5µA)， 4-20 mA;0-20 mA 0.625µA (1 LSB = 0.625µA);0-10VDC输出信号0.3125 mV (1 LSB = 0.3125 mV)， -10至+10VDC输出信号0.3125 mV (1 LSB = 0.3125 mV)。

该模块可安装在RX3i机箱的任何插槽上。每个RX3i机架允许的实例数量没有限制。实例的数量取决于特定RX3i控制器支持的模拟数据的数量。

 IC693ALG392 GE 模拟输出模块 可配置15或16位分辨率

内容来自www.xbaqingplc.com转载请标注

IC693ALG392 is a 90-30 series module. This module is an analog output module that is commonly used to implement modulation control of instruments or devices such as variable frequency drivers (VFDS), control valves, positioners, converters and other similar modulation devices. It can also be used to retransmit analog data to receiving elements such as loggers, data loggers, and other compatible receiving devices.

The IC693ALG392 has eight output channels and can be configured with 15 or 16-bit resolution, depending on the analog output range selected. It is capable of providing voltage signals such as 0 to +10 volts (unipolar)/ -10 to +10 volts (bipolar) and 0 to 20 mA / 4 to 20 mA output signals. In order to be able to generate an output analog signal, the module requires an isolated 24VDC power supply that is directly connected to the specified terminal block of the module.

The module is factory calibrated. Calibration information includes 0.625µA, 0 to 20 mA; 0.5µA, 4 ~ 20ma; The voltage is 0.3125 mV per count. Each channel of the module displays an update rate of 8(8) ms with a resolution of 0.5µA (1 LSB = 0.5µA), 4-20 mA; 0-20 mA 0.625µA (1 LSB = 0.625µA); 0-10VDC output signal 0.3125 mV (1 LSB = 0.3125 mV), -10 to +10VDC output signal 0.3125 mV (1 LSB = 0.3125 mV).

The module can be installed in any slot of the RX3i chassis. There is no limit to the number of instances allowed per RX3i rack. The number of instances depends on the amount of analog data supported by a particular RX3i controller.
