IC693ALG222 模拟电压输入模块 90-30 PLC模块

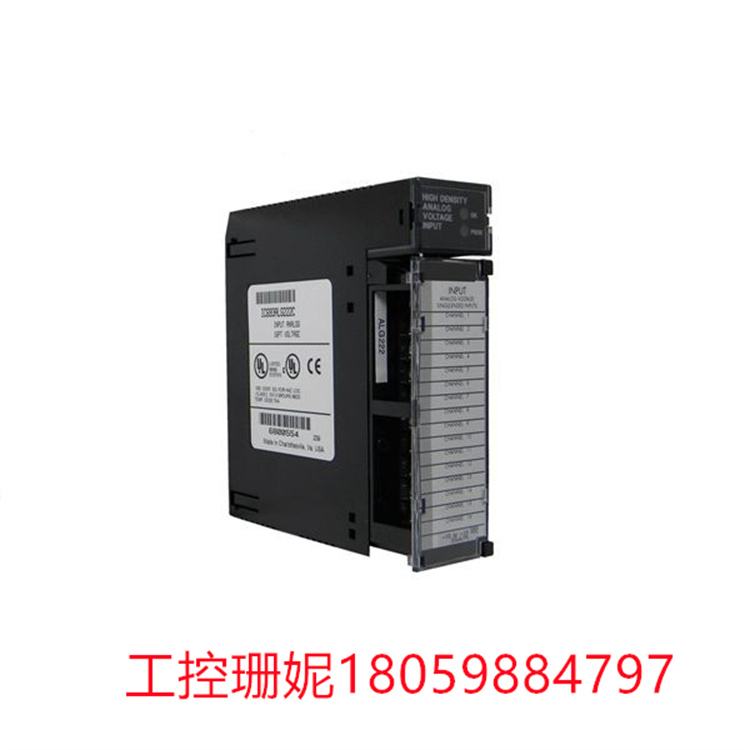

IC693ALG222是GE发那科系列90-30 PLC模块。该模块是一个模拟电压输入模块，设计用于接受多达16(16)单端或多达8(8)差分电压信号，特别是0-10VDC(单极)和-10VDC - +10VDC(双极)信号。

联系电话：18059884797

产品详情

IC693ALG222 模拟电压输入模块 90-30 PLC模块


【功能描述】

IC693ALG222通道可单独配置。对于单端配置，每个通道的更新速率为6毫秒，而对于差分配置，每个通道的更新速率为3毫秒。在0-10VDC时，模块的分辨率为2.5 mV (1 LSB = 2.5 mV)，而在-10VDC - +10VDC时，模块的分辨率为5 mV (1 LSB = 5 mV)。无论配置的输入类型和接线方法如何，该模块在25摄氏度或77华氏度的满量程下的绝对精度为±0.25%，在指定的工作温度范围内的满量程精度为±0.5%，线性度为+/- LSB。对于单端配置，输入滤波器响应为41 Hz，而在差分模式下工作时为82 Hz。该模块内部最大功耗为112 mA(来自背板+5 VDC总线)和41 mA(来自背板隔离+24 VDC电源)。

该模块可安装在5槽位或12槽位底板的任意可用槽位上。根据系列90-30 CPU的不同，IC693ALG222在311 / 313 / 323 CPU上的安装数量限制为4个，在331 CPU上的安装数量限制为8个，在340 / 341 CPU上的安装数量限制为12个，在350 - 364 CPU上的安装数量限制为51个。这包括每个指定CPU支持的远程I/O机架。

IC693ALG222模拟电压输入模块从位于PLC上的5伏总线消耗112毫安的电流。它还需要41毫安的电流来为板上电源转换器供电，该转换器向用户端电路供电。系统最多可安装8个16路模拟电压输入模块，配置GE cpu 331 ~ 351。它可以安装在PLC底板的任何I/O插槽中。IC693ALG222模拟电压输入模块有2个绿色led，分别表示模块状态和用户供电状态。它们是模块OK和电源OK led，它们闪烁以通知用户系统的状态。如果在系统中安装了该模块，则该模块的组态软件提供了读取该模块并将其配置到系统中的功能。

IC693ALG222 模拟电压输入模块 90-30 PLC模块


IC693ALG222 is a GE Fanuc series 90-30 PLC module. The module is an analog voltage input module designed to accept up to 16(16) single-ended or up to 8(8) differential voltage signals, especially 0-10VDC(unipolar) and -10VDC - +10VDC(bipolar) signals.

The IC693ALG222 channel can be configured separately. For a single-ended configuration, the update rate is 6 ms per channel, while for a differential configuration, the update rate is 3 ms per channel. At 0-10VDC, the module has a resolution of 2.5 mV (1 LSB = 2.5 mV), while at -10VDC - +10VDC, the module has a resolution of 5 mV (1 LSB = 5 mV). Regardless of the input type and wiring method configured, the module has an absolute accuracy of ±0.25% at full scale of 25 degrees Celsius or 77 degrees Fahrenheit, a full scale accuracy of ±0.5% over the specified operating temperature range, and a linearity of +/- LSB. For a single-ended configuration, the input filter responds to 41 Hz, compared to 82 Hz when operating in differential mode. The maximum internal power consumption of the module is 112 mA(from the backplane +5 VDC bus) and 41 mA(from the backplane isolation +24 VDC power supply).

The module can be installed in any available slots on the 5-slot or 12-slot baseplate. Depending on the series 90-30 cpus, IC693ALG222 is limited to 4 installations on 311/313/323 cpus, 8 installations on 331 cpus, and 12 installations on 340/341 cpus. The number of installations on a 350-364 CPU is limited to 51. This includes remote I/O racks supported by each specified CPU.

The IC693ALG222 analog voltage input module consumes 112 mah of current from the 5 volt bus located on the PLC. It also requires 41 milliamps of current to power the on-board power converter, which supplies power to the client circuit. A maximum of eight 16-way analog voltage input modules configured with GE cpus 331 to 351 can be installed. It can be installed in any I/O slot on the PLC baseboard. The IC693ALG222 analog voltage input module has two green leds, respectively indicating the module status and the user power supply status. These are Module OK and Power OK leds, which flash to inform the user of the status of the system. If the module is installed in the system, the configuration software for the module provides the ability to read the module and configure it into the system.
